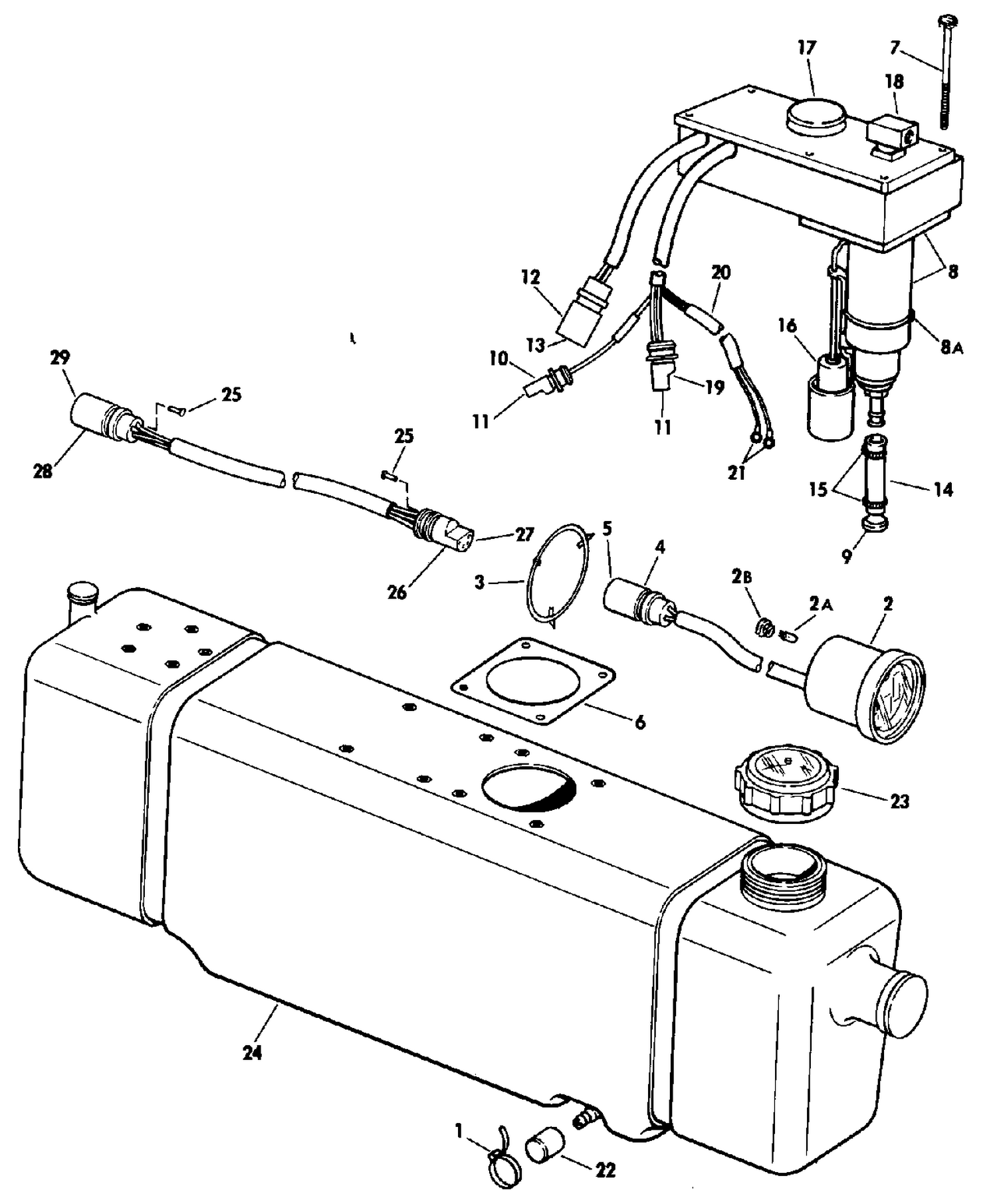

| Ref | Part Number | Description |
|---|
| 1 |
0124249 |
Snap Clamp (Min Dia. In.) 0.404 / (Max Dia. In.) 0.452 |
| 2 |
0173875 |
INSTRUMENT ASSY., Oil flow |
| 3 |
0123550 |
LOCKING RING |
| 7 |
0123972 |
SCREW, Pump to tank |
| 8 |
0174118 |
OIL PUMP ASSY. This part replaces 0173850. |
| 8A |
0610997 |
TIE STRAP |
| 9 |
0123905 |
FILTER |
| 10 |
0511989 |
CONNECTOR |
| 12 |
0511449 |
COMMECTOR, Coil to power pack |
| 14 |
0123951 |
HOSE, Oil pickup |
| 15 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 16 |
0173994 |
FLOAT ASSY. |
| 17 |
0123990 |
CAP |
| 18 |
0123941 |
FITTING, Oil line |
| 22 |
0124072 |
CAP, Drain |
| 24 |
0173857 |
OIL TANK, 3.5 gallon |
| 24 |
0173878 |
OIL TANK, 7 gallon |
| 28 |
0511449 |
COMMECTOR, Coil to power pack |
| 0173869 |
0173869 |
ECONOMIXER ASSY. WITHOUT OIL TANK |
| 0173870 |
0173870 |
ECONOMIXER ASSY. WITH 3.5 GALLON OIL TANK |
| 0173871 |
0173871 |
ECONOMIXER ASSY. WITH 7 GALLON OIL TANK |
