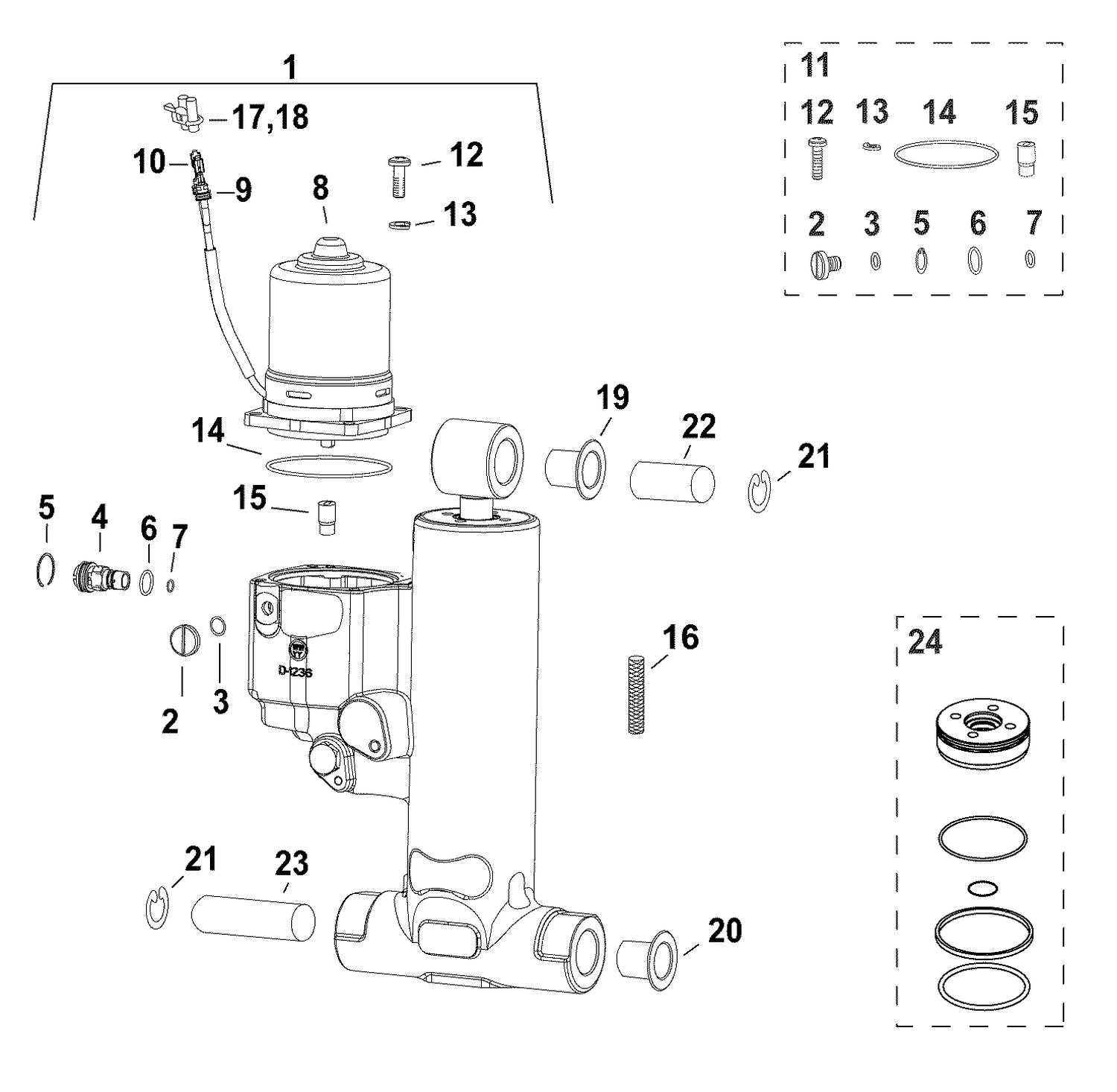

08-1_TRIM & TILT HYDRAULIC ASSEMBLY All 60H, 60J, 65, 75, 90 HP & 20 inch V4 Models
Parts (7)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5008949 | HYDRAULIC Assembly This part replaces 5007776. |
| 19 | 0335479 | BAGUE, support supérieur & inférieur |
| 20 | 0335479 | BAGUE, support supérieur & inférieur |
| 21 | 0336534 | ANNEAU DE RETENUE |
| 22 | 0335480 | AXE, vérin de relevage |
| 23 | 0335463 | GOUPILLE, support inférieur |
| 24 | 5008985 | Tntcylsealkt I3&V4 This part replaces 5008773. |
