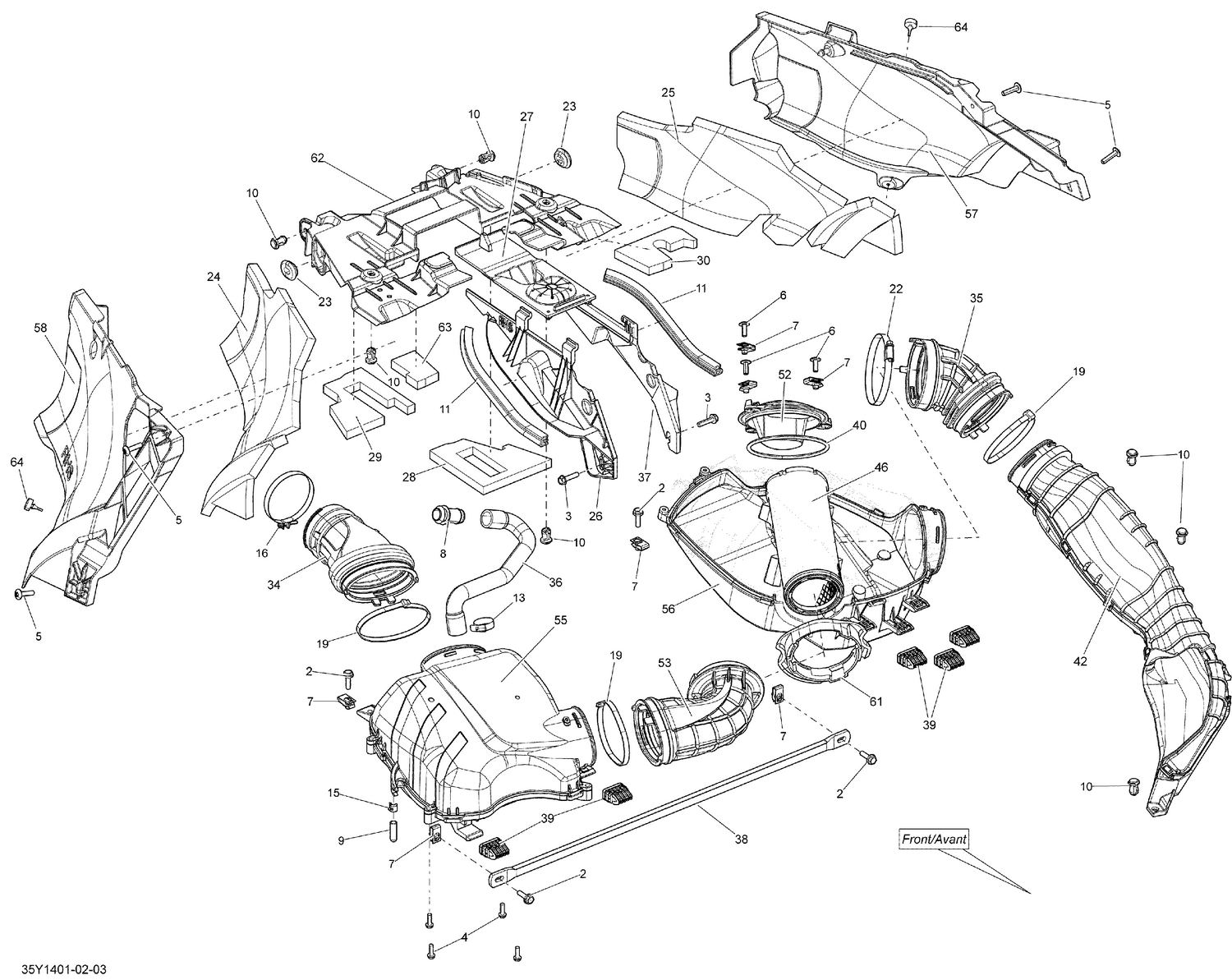

02- Air Intake _35Y1402
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 207662044 | Hex. Flange Screw M6 X 20 |
| 3 | 210262550 | Hex. Flange Forming Screw M6 X 25 This part replaces 210262580. |
| 4 | 243141680 | Hex. Screw M4.8 X 1.8 |
| 5 | 250000284 | Torx Screw M6 x 25 |
| 6 | 250000348 | Torx Truss Screw M6 X 16 |
| 7 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 8 | 273000234 | Breather Valve |
| 9 | 293000105 | Cap Plug |
| 10 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 11 | 219704351 | TRIM 3000MM LONG - Call your local BRP dealership |
| 13 | 293650173 | Tridon Gear Clamp |
| 15 | 414554800 | Spring Clamp |
| 16 | 508000346 | Gemi Clamp |
| 19 | 509000165 | Tie Rap |
| 22 | 514052924 | Norma Clamp |
| 23 | 705000321 | Oval Washer |
| 24 | 707800338 | RH ACOUSTIC SHELL FOAM - Call your local BRP dealership |
| 25 | 707800339 | LH ACOUSTIC SHELL FOAM - Call your local BRP dealership |
| 26 | 707800340 | RH Center Acoustic Shell |
| 27 | 707800343 | Center Bellows |
| 28 | 707800353 | LH REAR FOAM - Call your local BRP dealership |
| 29 | 707800354 | RH REAR FOAM - Call your local BRP dealership |
| 30 | 707800356 | LH Front Foam |
| 34 | 707800388 | Air Intake Adaptor |
| 35 | 707800389 | Adapter |
| 36 | 707800824 | Formed Hose This part replaces 707800406. |
| 37 | 707800413 | LH Acoustic Shell |
| 38 | 707800432 | Link Rod |
| 39 | 707800452 | Rubber Stopper |
| 40 | 707800455 | O-ring |
| 42 | 707800477 | Air Inlet Valve |
| 46 | 707800483 | Air Filter |
| 52 | 707800484 | Cap |
| 53 | 707800485 | Intake Adaptor |
| 55 | 707800488 | RH Air Intake Silencer |
| 56 | 707800489 | LH Air Intake Silencer |
| 57 | 707800696 | LH ACOUSTIC SHELL - Call your local BRP dealership This part replaces 707800508. |
| 58 | 707800697 | ACOUS SHELL RH - Call your local BRP dealership This part replaces 707800509. |
| 61 | 707800525 | Ring |
| 62 | 707800562 | Acoustic Support |
| 63 | 707800563 | RH FOAM - Call your local BRP dealership |
