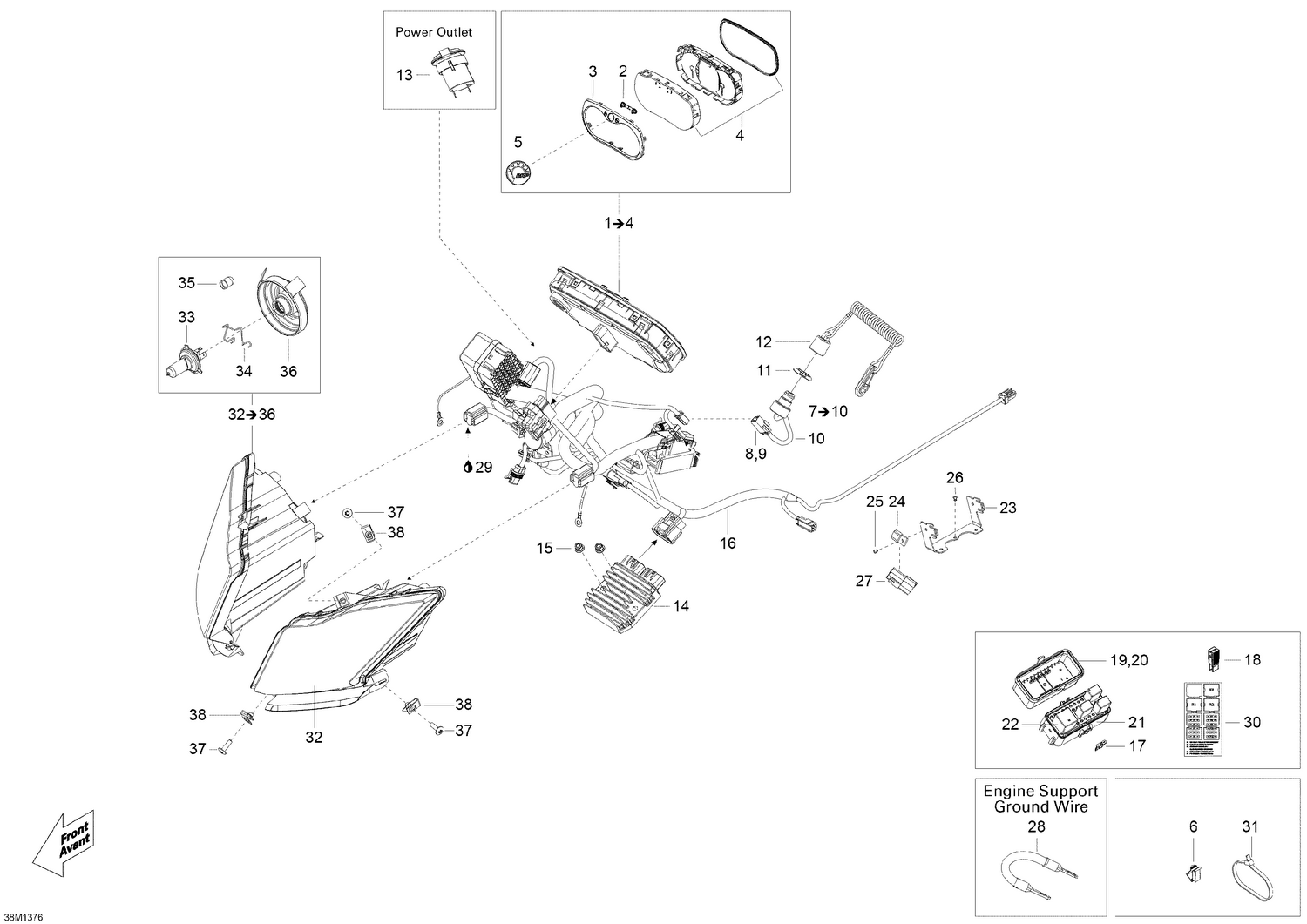

| Ref | Part Number | Description |
|---|
| 2 |
415129355 |
Speedometer Button |
| 3 |
415129348 |
Gauge Ring |
| 4 |
415129349 |
Lens |
| 5 |
516006224 |
BRP Logo 20MM x 2MM This part replaces 219902677. |
| 6 |
414227300 |
Clip |
| 8 |
515175232 |
Male Terminal |
| 9 |
515175494 |
Male Housing, 3 Circuits |
| 10 |
409902000 |
Tubing 12 mm |
| 11 |
278002963 |
Safety Nut (DESS Switch) This part replaces 278000508. |
| 12 |
515178284 |
DESS This part replaces 515177057. |
| 13 |
710001248 |
DC Outlet |
| 14 |
710010539 |
Voltage Regulator This part replaces 515177325. |
| 15 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 16 |
515177075 |
Main Harness Ass'y |
| 17 |
710000742 |
Little Fuse, 5 Amperes |
| 17 |
710000743 |
Little Fuse, 7.5 Amperes |
| 17 |
710000744 |
Little Fuse, 10 Amperes |
| 17 |
710000745 |
Little Fuse, 15 Ampere |
| 17 |
710000746 |
Little Fuse, 20 Amperes |
| 17 |
710000747 |
Little Fuse, 30 Amperes |
| 18 |
710000781 |
Fuse Puller |
| 19 |
710001026 |
Fuse Cover |
| 20 |
278002172 |
Foam |
| 21 |
415129856 |
Fuse Box Base Ass´y This part replaces 710000660. |
| 22 |
515176774 |
Relay, 30 AMP |
| 22 |
515176775 |
Relay, 50 AMP |
| 23 |
515177073 |
FUSEBOX SUPPORT - Call your local BRP dealership |
| 24 |
270000141 |
Clip |
| 25 |
293150037 |
Avdel Rivet 3/16" |
| 26 |
390402200 |
Pop Rivet 3/16" |
| 27 |
515176234 |
FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership |
| 28 |
515176883 |
Ground Wire |
| 29 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 30 |
516004376 |
Decal, Fusebox |
| 31 |
293750001 |
Tie Wrap 94 mm |
| 31 |
293750002 |
Tie Wrap 142 mm |
| 31 |
414115200 |
Tie-Rap 180 mm |
| 33 |
515176274 |
Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 34 |
Not |
Available As Spare Part - Bulb Holder |
| 35 |
515176498 |
Cap |
| 36 |
219800280 |
Rubber Cap Protector This part replaces 515176499. |
| 37 |
250000722 |
Torx Screw M6 X 20 This part replaces 250000128. |
