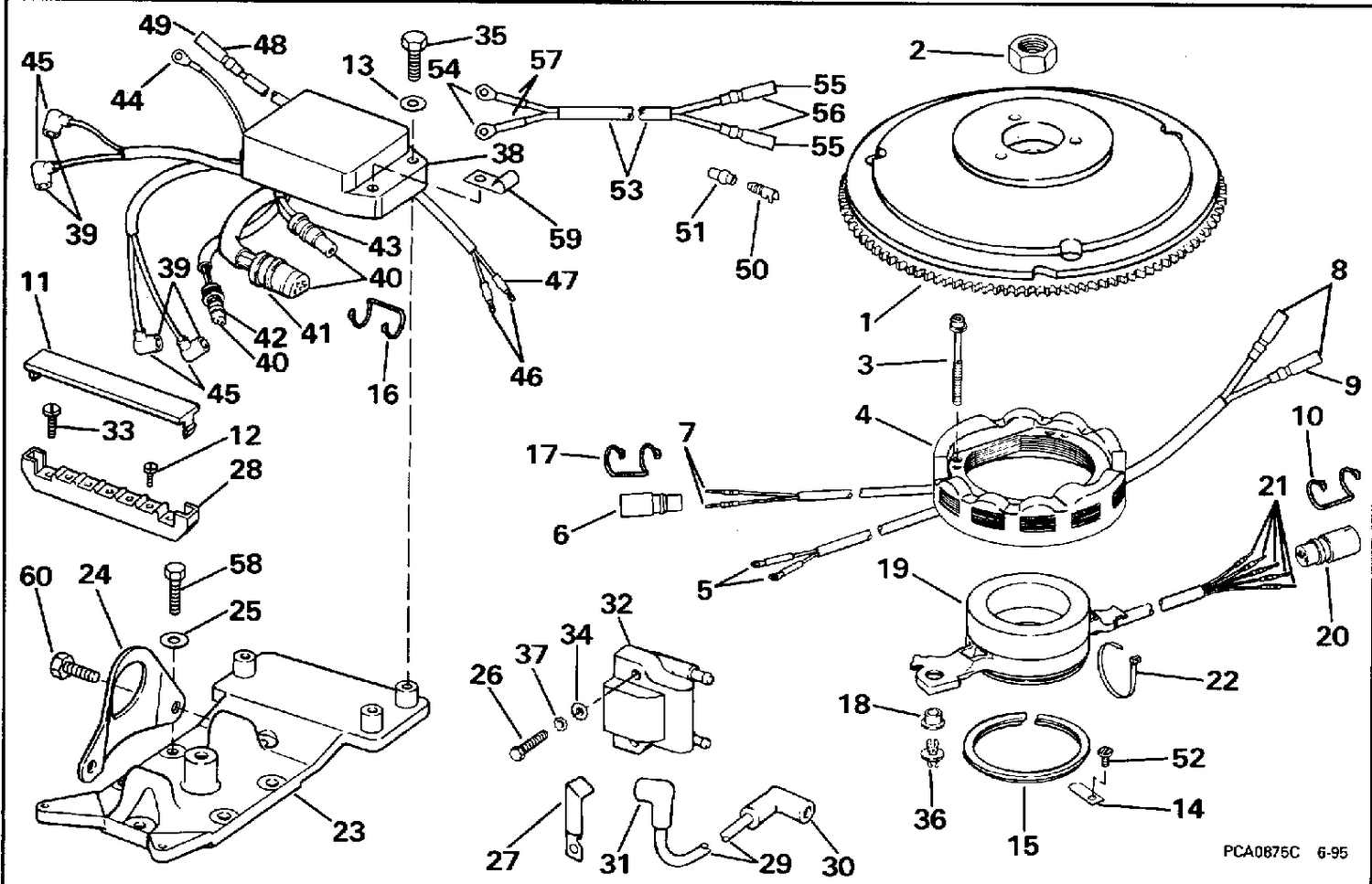

| Ref | Part Number | Description |
|---|
| 1 |
0583428 |
FLYWHEEL ASSY. |
| 2 |
0333263 |
NUT, Flywheel |
| 3 |
0325042 |
SCREW, Starter mounting |
| 4 |
0583548 |
STATOR ASSY. |
| 5 |
0510827 |
RING TERMINAL |
| 10 |
0512743 |
DISPOSITIF DE RETENUE |
| 11 |
0323729 |
COVER, Terminal block |
| 12 |
0329182 |
VIS, borne |
| 14 |
0326439 |
CLAMP, Leads |
| 15 |
0313666 |
RET., Distributor base 1 |
| 16 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 17 |
0512741 |
DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 18 |
0329168 |
SOCKET |
| 19 |
0583379 |
TIMER BASE & SENSOR ASSY. |
| 23 |
0333253 |
COVER, Water passage |
| 24 |
0323898 |
BRACKET, Lift |
| 28 |
0326255 |
LEVER, Choke knob |
| 29 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
| 32 |
0582508 |
COIL ASSY |
| 33 |
0306644 |
VIS, capteur de papillon |
| 36 |
0330368 |
BUSHING, Timber base |
| 38 |
0584032 |
POWER PACK |
| 52 |
0306014 |
VIS, ancrage |
| 53 |
0583356 |
CABLE ASSY., AC lighting |
| 58 |
0329894 |
SCREW |
