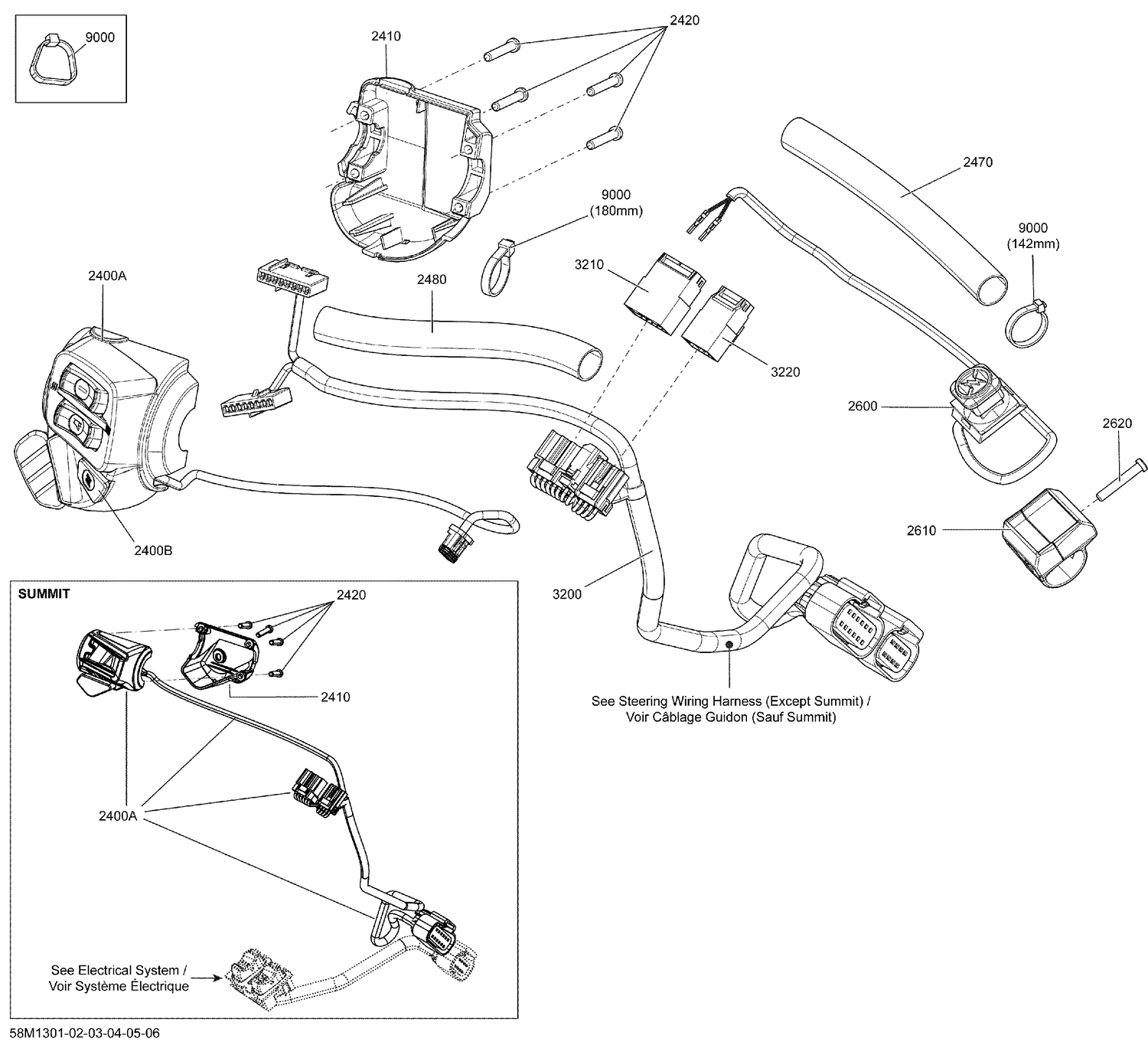

| Ref | Part Number | Description |
|---|
| 2400A |
515178305 |
LH Switch Housing This part replaces 515177088. |
| 2400B |
XXX |
Not Available As Spare Parts |
| 2410 |
515177149 |
LH Switch Housing Plate |
| 2420 |
250000671 |
Torx Screw This part replaces 250000584. |
| 2470 |
219704418 |
PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership |
| 2480 |
219704418 |
PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership |
| 2600 |
515177362 |
Emergency Stop Switch |
| 2610 |
515177310 |
Emergency Stop Switch Support |
| 2620 |
250000263 |
Torx Screw #8-18 |
| 3200 |
XXX |
Not Available As Spare Parts |
| 3210 |
515175662 |
Male Terminal Housing, 6 Circuits |
| 3220 |
515175846 |
Male Terminal Housing, 4 Circuits |
| 9000 |
293750001 |
Tie Wrap 94 mm |
| 9000 |
293750002 |
Tie Wrap 142 mm |
| 9000 |
293750008 |
Tie Wrap 368 mm |
| 9000 |
293750009 |
Tie-Rap 173 mm |
| 9000 |
414115200 |
Tie-Rap 180 mm |
