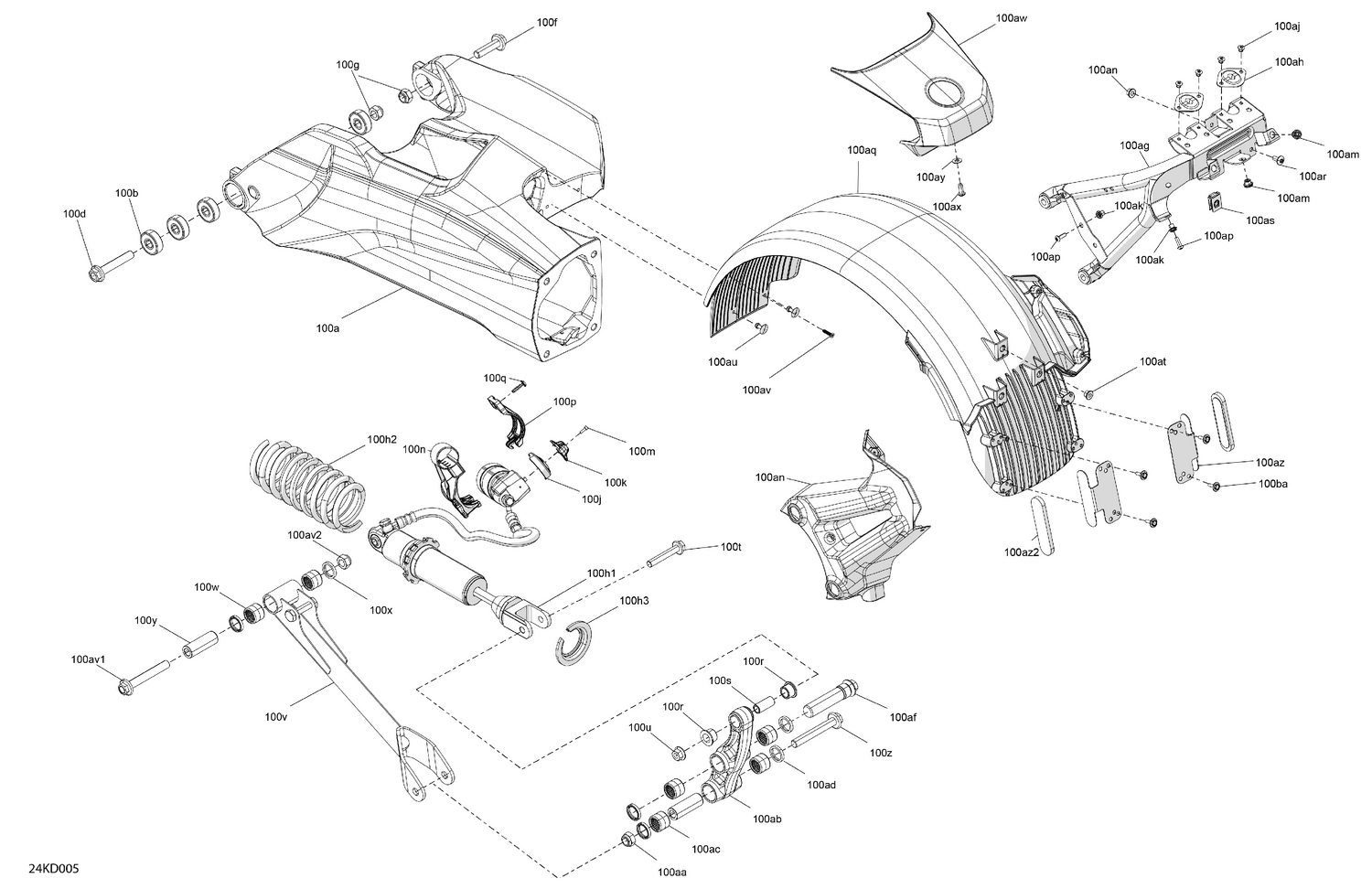

| Ref | Part Number | Description |
|---|
| 100a |
706004488 |
Swing Arm |
| 100aa |
232521416 |
Elastic Stop Nut M12 |
| 100ab |
706202664 |
Suspension Arm Lever, Secondary |
| 100ac |
706002965 |
Bearing, Needles |
| 100ad |
706000448 |
Seal, Single Lip ID 19.4 OD 26 |
| 100af |
706002961 |
Pin Threaded M25 X 1.5 S.Grip, Lever |
| 100ag |
705013304 |
Rear Fender Support |
| 100ah |
705005055 |
Grommet Ass'y |
| 100aj |
293150102 |
Rivet 3/16" |
| 100ak |
293450267 |
Insert M5 - 0.8 |
| 100am |
250100199 |
Insert Half Hex Body M6 x 1.0 |
| 100an |
705013305 |
LH Fender Trim Support |
| 100ap |
250000578 |
Torx Truss Screw M5 X 16, T25 |
| 100aq |
705011162 |
Deep Black, Rear Fender |
| 100ar |
250000789 |
Torx Truss M6X14 |
| 100as |
250100208 |
Panel Nut M6 X 1.0 |
| 100at |
233061414 |
Hex. Flange Nut M6 |
| 100au |
293150104 |
Pop Rivet 3/16" |
| 100av |
250001097 |
Screw 8-32 |
| 100av1 |
207528556 |
Hex. Flange Screw M12 X 85, Scotch Grip |
| 100av2 |
232521416 |
Elastic Stop Nut M12 |
| 100aw |
706003151 |
Rear Fender Trim |
| 100ax |
250000616 |
Black, Socket Screw, M6 X 16 S.Grip |
| 100ay |
224061121 |
Flat Washer |
| 100az |
706005433 |
License Plate Support Ass'y |
| 100az2 |
705015551 |
Red, Reflector |
| 100b |
706002649 |
Ball Bearing, ID 12, OD 37, L 12 |
| 100d |
250000858 |
Hex. Flange Screw M12 X 70 |
| 100f |
207524556 |
Hex. Flange Screw M12 X 45, Scotch Grip |
| 100g |
232521416 |
Elastic Stop Nut M12 |
| 100h1 |
706004665 |
Rear Adjustable Shock Absorber |
| 100h2 |
706004535 |
Compression Spring |
| 100h3 |
706000567 |
Spring Stopper |
| 100j |
706004533 |
Gauge |
| 100k |
706004415 |
Adjustment Button |
| 100m |
250000644 |
Allen Screw M3 X 0.5 X 10 |
| 100n |
706003311 |
Support Shock Absorber Tank Interior |
| 100p |
706004531 |
Ext Tank Support Shock Absorber |
| 100q |
250000760 |
Torx Screw Truss Head K50X20 T20 |
| 100r |
503189117 |
Urethane Bushing |
| 100s |
706002678 |
Spacer |
| 100t |
207506056 |
Hex. Flange Screw M10 X 60, Scotch Grip |
| 100u |
233101464 |
Hex. Elastic Flange Nut , M10 X 1.5 |
| 100v |
706002533 |
Suspension Arm Lever, Primary |
| 100w |
706002965 |
Bearing, Needles |
| 100x |
706000448 |
Seal, Single Lip ID 19.4 OD 26 |
| 100y |
706002534 |
Axle, Suspenion Arm |
| 100z |
207528556 |
Hex. Flange Screw M12 X 85, Scotch Grip |
