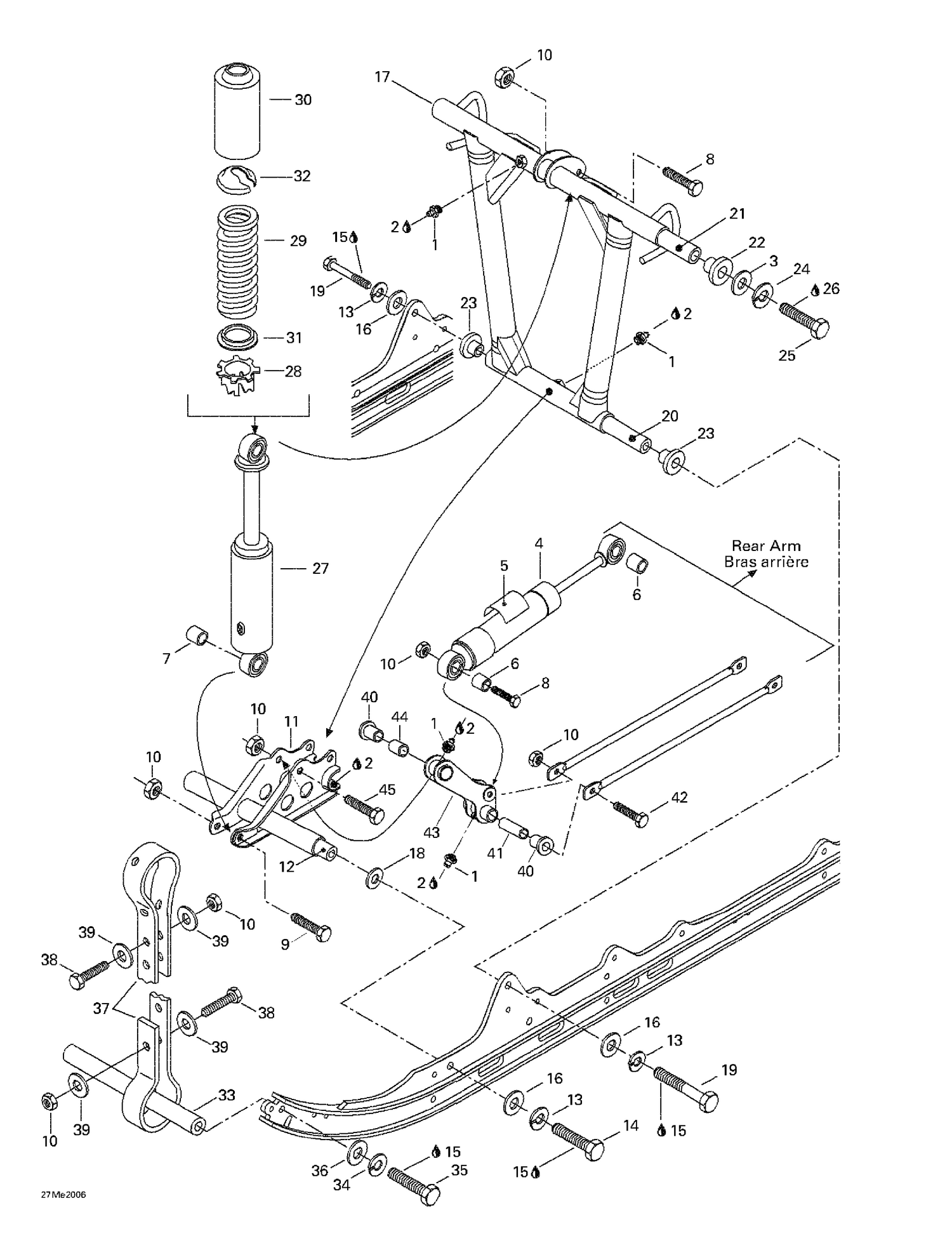

08- Front Arm
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 408200700 | Grease Fitting |
| 2 | 219700417 | SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 3 | 234001410 | Flat Washer 10 mm |
| 4 | 415095000 | Rear Shock |
| 5 | 516000182 | HPG Decal (Europe) |
| 6 | 414936000 | Bushing |
| 7 | 414917900 | Cushion |
| 8 | 207084044 | Hex. Screw M8 X 40 |
| 9 | 207085544 | Hex. Screw M8 X 55 |
| 10 | 232581414 | Hex. Elastic Stop Nut M8 |
| 11 | 503188976 | Welded Shock Support |
| 12 | 503174900 | Lower Axle |
| 13 | 234120602 | Lock Washer 12 mm |
| 14 | 207124044 | Hex. Screw M12 x 40 |
| 15 | 293800005 | Loctite 271, 10 ml |
| 16 | 234021410 | Flat Washer 12 mm |
| 17 | 503171100 | Welded Front Arm |
| 18 | 503175400 | Hardened Washer |
| 19 | 207026044 | HEX. SCREW M12 X 60 - Call your local BRP dealership |
| 20 | 503189313 | SHAFT - Call your local BRP dealership |
| 21 | 503190387 | SHAFT - Call your local BRP dealership This part replaces 503188938. |
| 22 | 503189324 | Bushing |
| 23 | 503189323 | CUSHION - Call your local BRP dealership |
| 24 | 234101601 | Helicoidal Lock Washer M10 |
| 25 | 207006044 | HEX. SCREW M10 X 60 - Call your local BRP dealership |
| 26 | 293800060 | Loctite 243, 10 ml |
| 27 | 415094600 | Center Shock |
| 28 | 503169000 | Cam |
| 29 | 415070600 | Shock Spring |
| 30 | 503193663 | Protector This part replaces 503188930. |
| 31 | 572092600 | Spring Guide |
| 32 | 706200881 | Spring Stopper This part replaces 503140600. |
| 33 | 503151600 | Axle |
| 34 | 234181401 | Lock Washer 8 mm |
| 35 | 207183044 | Hex. Screw M8 X 30 |
| 36 | 234081410 | Flat Washer 8 mm |
| 37 | 503190782 | STOPPER STRAP - Call your local BRP dealership This part replaces 503189362. |
| 38 | 207182544 | Hex. Screw M8 X 25 |
| 39 | 517078700 | WASHER - Call your local BRP dealership |
| 40 | 415052300 | Plastic Cushion |
| 41 | 503171600 | Tie Rod Shaft |
| 42 | 207089044 | Hex. Screw M8 X 90 |
| 43 | 503171400 | Lever |
| 44 | 503171700 | Pivot Axle |
| 415057600 | Noir, | Ressort Avant 415057600 |
| 503189196 | Amortisseur | Central 503189196 |
| 503189196 | Center | Shock 503189196 |
| 503189496 | Rear | Shock (Europe) 503189496 |
