Home / BRP / STERN DRIVE / 1970 / 120 / CUFM-19E 1970 / CRANKCASE GROUP 155 HP

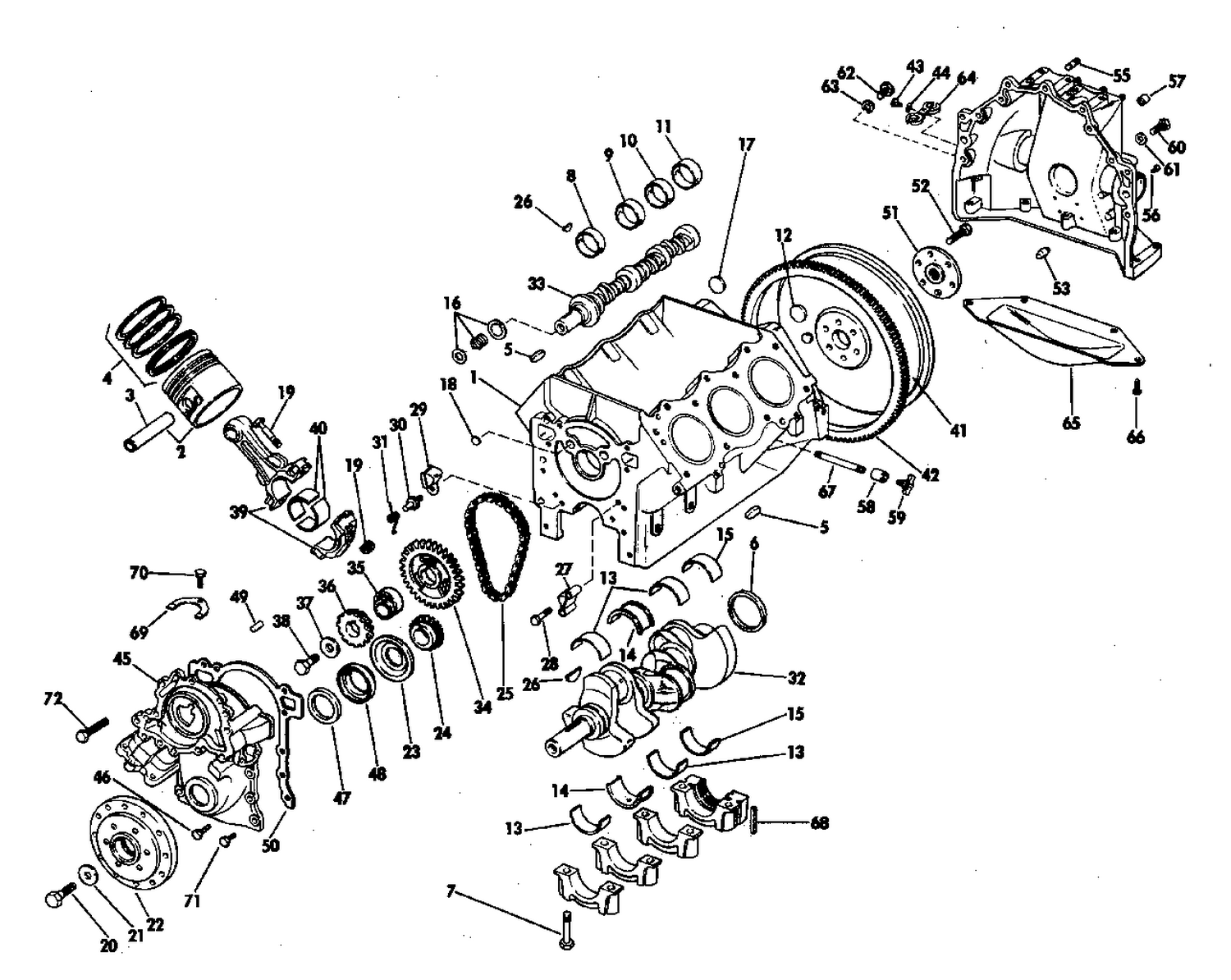

CRANKCASE GROUP 155 HP

CRANKCASE GROUP 155 HP

Parts (86)

RefPart NumberDescription
1 0991671 CRANKCASE ASSEMBLY
2 1396480 PISTON & PIN, .010 O.S.
2 1396481 PISTON & PIN, .020 O.S.
2 1396482 PISTON & PIN, .030 O.S.
2 1399524 PISTON & PIN, Std
3 1365034 PIN, Piston
4 0948851 RING SET, Std.
4 0948852 RING SET, .010 O.S.
4 0948853 RING SET, .020 O.S.
4 0948854 RING SET, .030 O.S.
5 0311208 FREEZE PLUG
6 0911766 SEAL, Rear main bearing (packing)
7 1185649 BOLT, Crankshaft bearing cap
8 1349783 BEARING, Camshaft front
9 1172022 BEARING, Camshaft, front, center
10 1172023 BEARING, Camshaft, rear, center
11 1172024 BEARING, Camshaft, rear
12 1172025 PLUG, Camshaft bearing cap
13 5466028 BEARING #1, #3, std.
13 5466031 BEARING #1, #3, .001 U.S.
13 5466034 BEARING #1, #3, .002 U.S.
13 5466037 BEARING #1, #3, .010 U.S.
14 5466029 BARING #2,Std
14 5466032 BEARING #2, .001 U.S.
14 5466035 BEARING #2, .002 U.S.
14 5466038 BEARING #2 .010 U.S.
15 5468578 BEARING #4, Std.
15 5468579 BEARING #4, .001 U.S.
15 5468580 BEARING #4, .002 U.S.
15 5468581 BEARING #4, .010 U.S.
16 0992044 THRUST BUTTON KIT
17 G-444776 PLUG, Lifter gallery, rear
18 1343470 PLUG, Lifter gallery, front
19 1396399 BOLT & NUT, Connecting rod
20 G-271743 BOLT, Balancer to crankshaft (5/8-18 x 1-3/8)
21 1190368 WASHER, Balancer to crankshaft
22 0991889 BALANCER, Harmonic
23 1193967 SLINGER, Crankcase oil
24 1192916 SPROCKET, Crankshaft
25 1359707 CHAIN, Timing
26 1352537 KEY, Woodruff
27 1354138 DAMPER
28 G-180033 BOLT, Hex head (1/4-20 x 1-3/8)
29 1356634 DAMPER, Spring loaded
30 1356635 BOLT, Damper to crankcase
31 1358909 SPRING, Damper
32 0992499 CRANKSHAFT
33 0992627 CAMSHAFT
34 1195077 SPROCKET, Camshaft
35 1361789 ECCENTRIC, Fuel pump
36 1361749 GEAR, Distributor drive
37 1285607 WASHER
38 1285606 BOLT, Camshaft sprocket
39 1377248 CONNECTING ROD, Less bearing
40 5463929 BEARING ASSY., .010" U.S.
40 5463930 BEARING ASSY., .002" U.S.
40 5463931 BEARING ASSY., .001" U.S.
40 5463932 BEARING ASSY., Std.
41 1359407 FLYWHEEL & RING GEAR
42 1359081 RING, Flywheel
43 0303699 SCREW
44 0306407 LOCCKWASHER,Cover latch
45 0381880 TIMING CHAIN COVER ASSEMBLY
46 0312449 SCREW, Cover to block
47 0312157 PACKING, Oil shedder
48 0312158 SHEDDER, Crankcase oil
49 0312160 PIN, Cover to block
50 0312162 GASKET, Cover
51 0314683 COUPLING
52 0306872 BOLT, Flywheel
53 0310969 DOWEL
54 0980382 ADAPTER HOUSING This part replaces 0383159.
56 0160280 DRIVE SCREW
57 0309614 DOWEL
58 0311852 PIPE
59 0379757 DRAIN COCK
60 0310896 SCREW
62 0312861 SCREW, Cable ground
63 0307001 L'WASHER, Stud c'case
64 0314823 RETAINER, Cable con
65 0312271 GUARD, Ring gear
67 0311853 CONNECTOR, Pipe
68 1343472 PACKING, Rear main bearing
69 1374776 CLAMP, Distributor
70 G-180125 BOLT, 3/8-16 x 1-3/8
71 9425700 BOLT, Cover to block, lower, 5/16-18 x 7/8
