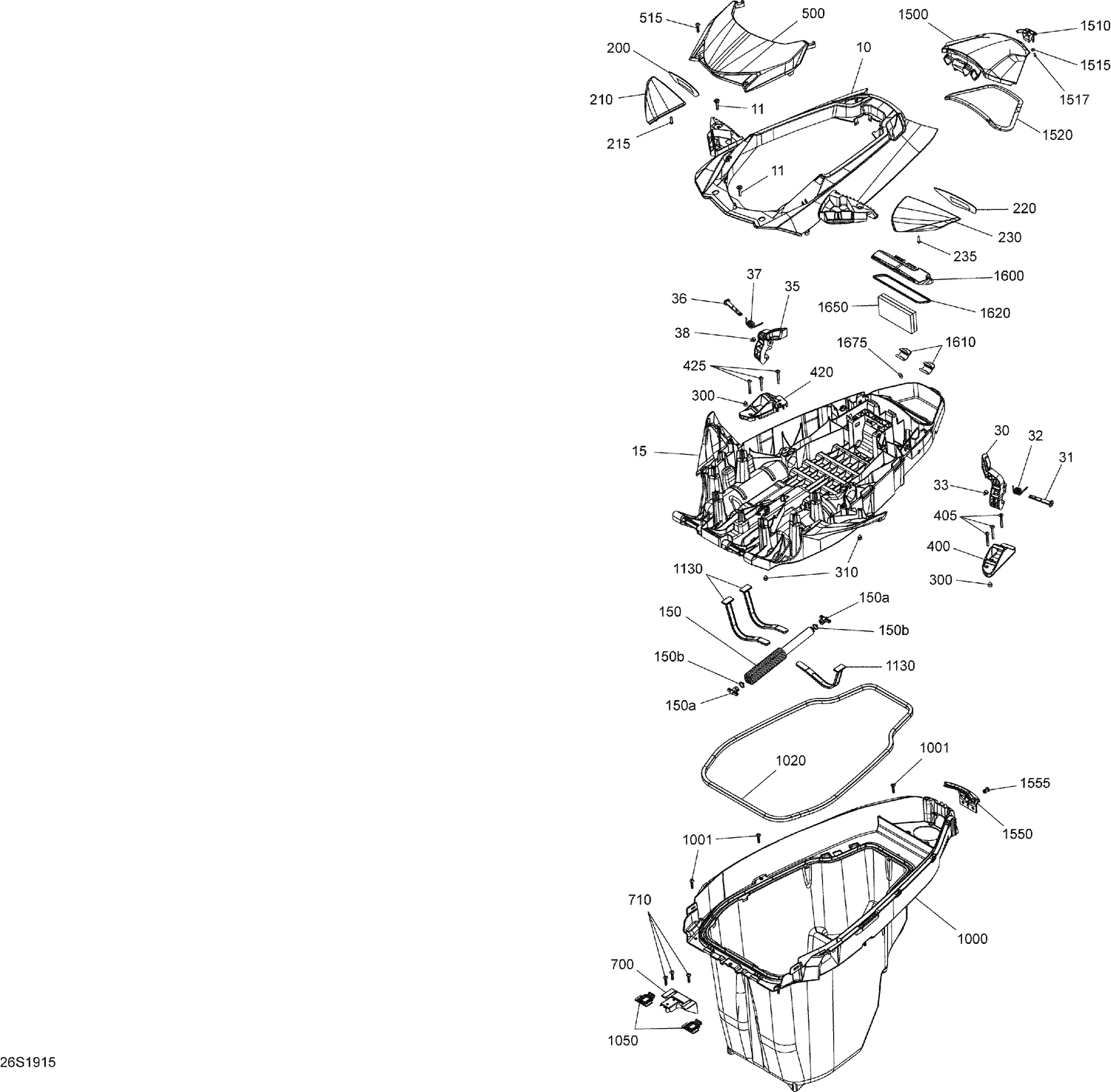

09- Front Cover
Parts (45)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 269502394 | Outer Skin |
| 11 | 250000399 | Hexagonal Cap Screw M6 X35 |
| 15 | 269502265 | Inner Console Support |
| 30 | 269502267 | LH Latch |
| 31 | 269502326 | Latch Axis |
| 32 | 269502268 | Latch Spring |
| 33 | 293830005 | Rubber Bumper |
| 35 | 269502299 | RH Latch |
| 36 | 269502326 | Latch Axis |
| 37 | 269502268 | Latch Spring |
| 38 | 293830005 | Rubber Bumper |
| 150a | 269501984 | Shock Absorber End Fitting This part replaces 269501717. |
| 150b | 293750001 | Tie Wrap 94 mm |
| 200 | 269502276 | RH Mirror Glass |
| 210 | 269502279 | Deep Black, RH Mirror Cover |
| 215 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 220 | 269502274 | LH Mirror Glass |
| 230 | 269502278 | Deep Black, LH Mirror Cover |
| 235 | 211000023 | Hex. Screw 10-14 X 7/8” |
| 300 | 293830005 | Rubber Bumper |
| 310 | 293830005 | Rubber Bumper |
| 400 | 269502385 | LH Latch Base |
| 405 | 250000827 | Torx Screw Truss Cone HD.M6X50 This part replaces 250000708. |
| 420 | 269502386 | RH Latch Base |
| 425 | 250000827 | Torx Screw Truss Cone HD.M6X50 This part replaces 250000708. |
| 500 | 269502283 | Deep Black, Top Cover |
| 515 | 250001007 | Screw Torx M6.81 X 30 |
| 700 | 269502282 | Shock Base |
| 710 | 250001007 | Screw Torx M6.81 X 30 |
| 1000 | 264000144 | Bin Compartment |
| 1001 | 250001007 | Screw Torx M6.81 X 30 |
| 1020 | 293250478 | Gasket |
| 1050 | 269502325 | Adjustment Hook |
| 1130 | 269502145 | Strap |
| 1500 | 264000132 | Glove Box Door |
| 1510 | 264000133 | Glove Box Latch |
| 1515 | 234042600 | Flat Washer 4 mm, Stainless |
| 1517 | 241140060 | Screw K40 X 10 |
| 1520 | 293250717 | Cover Gasket This part replaces 293250403. |
| 1550 | 269502538 | Glove Box Trim This part replaces 269502327. |
| 1555 | 293150230 | Tuflok Plastic Rivet |
| 1600 | 264000134 | Watertight Door |
| 1610 | 269501718 | Clip |
| 1620 | 293250412 | Gasket |
| 1650 | 264000135 | Sealed Compartment Foam |
