Parts Catalog

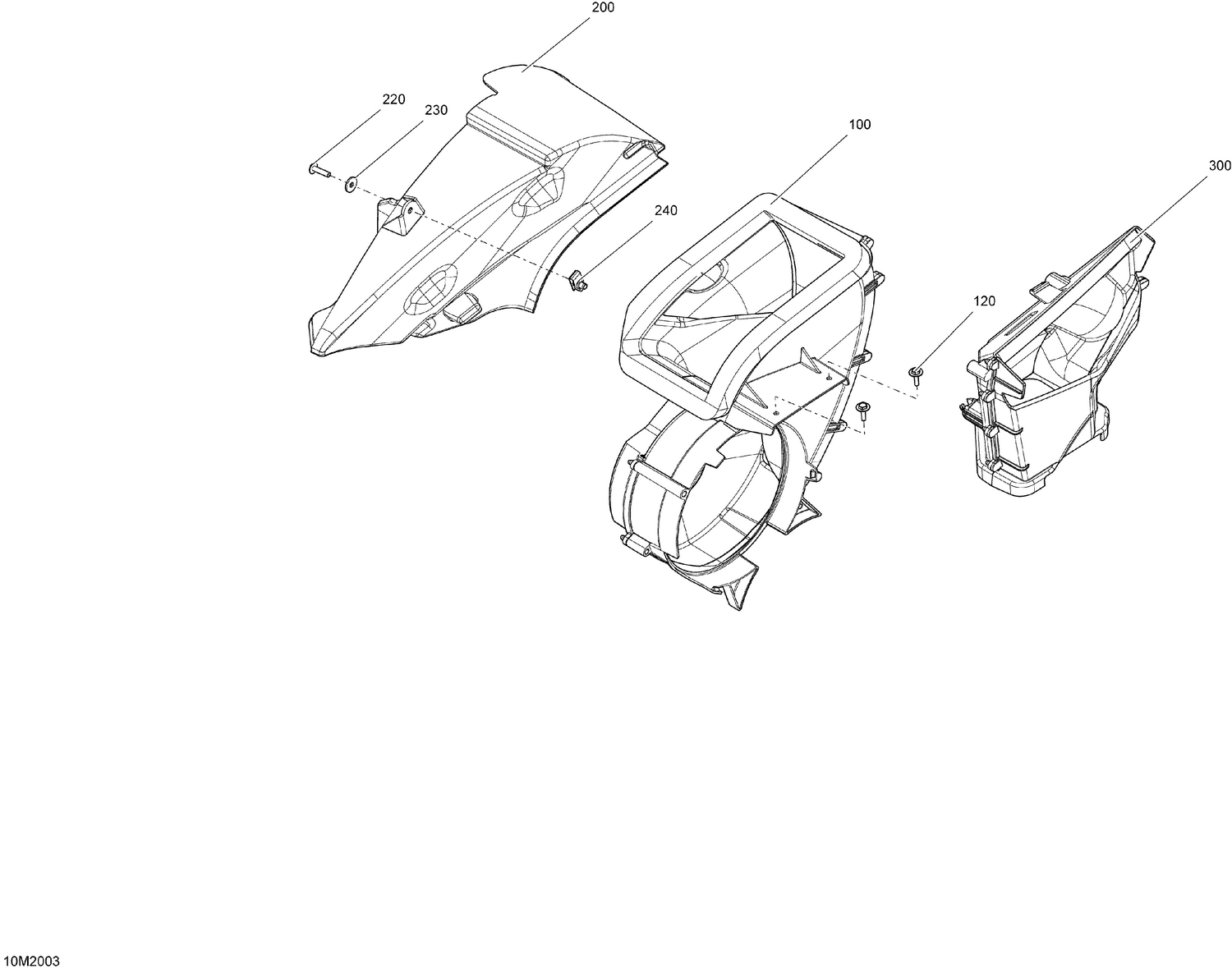

03- Cooling - System

Parts (6)

Ref	Part Number	Description
100	509000840	Inlet Duct
120	250000725	Screw M4 X 16
200	509000543	Air Chamber Ass'y
220	250000724	Torx Screw M5 X 20
230	391301600	Washer
240	250000958	Panel Nut M5 X 0.8
