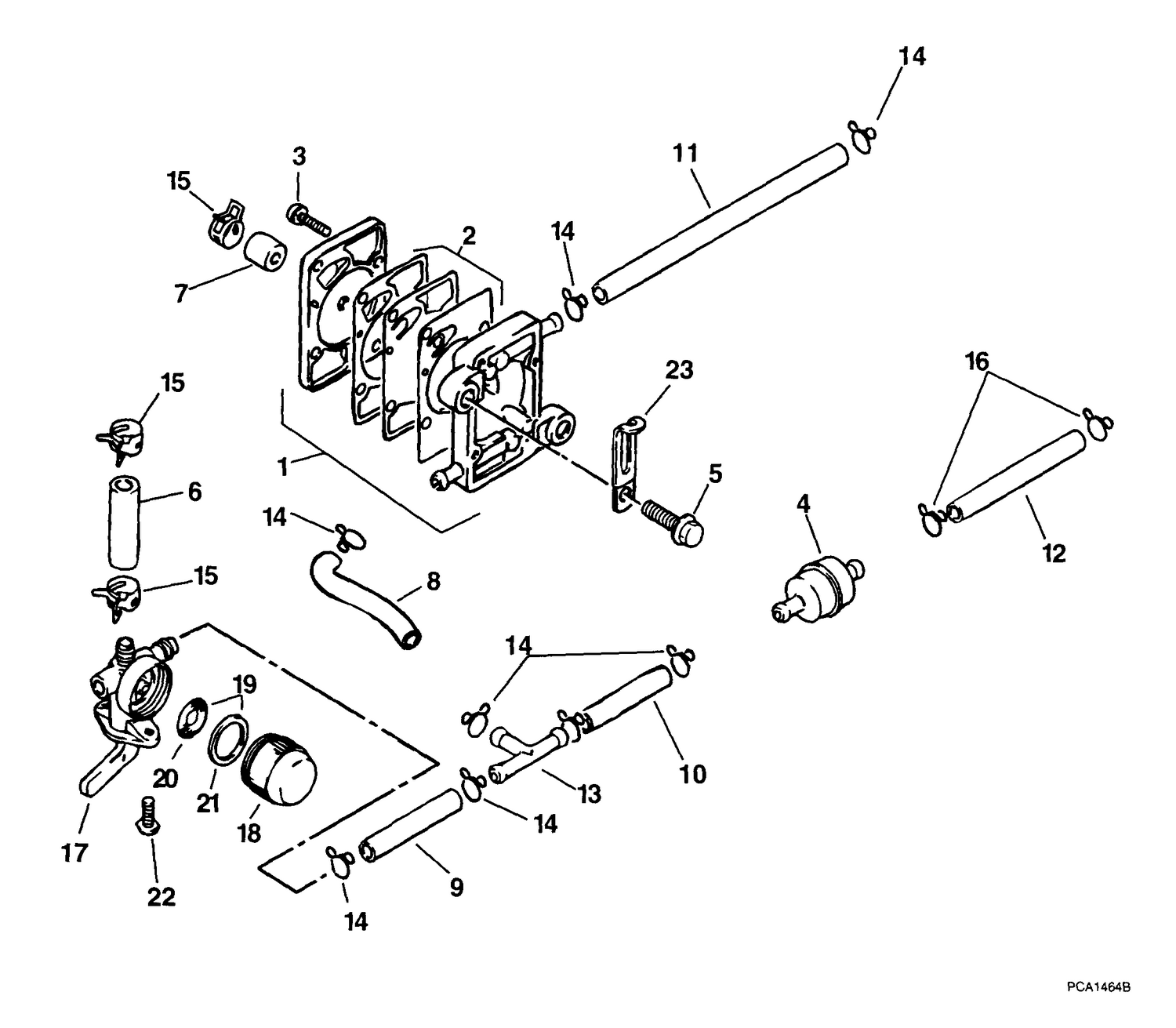

FUEL PUMP
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5030180 | FUEL PUMP ASSY. |
| 4 | 5030183 | FUEL FILTER |
| 6 | HOSE, | Tank to fuel valve assy., 1 5/8 in. (41 mm) |
| 7 | HOSE, | Vacuum, 1/2 in. (13mm) |
| 8 | HOSE, | Tee to pump, 5 in. (127mm) |
| 9 | HOSE, | Valve to tee, 1 3/4 in. (45mm) |
| 10 | HOSE, | Filter to tee, 4 in. (101mm) |
| 11 | HOSE, | Pump to carburetor, 10 in. (254mm) |
| 12 | HOSE, | Connector to filter, 8 1/2 in. (216mm) |
| 14 | 5030132 | CLAMP |
| 15 | 5030133 | CLAMP |
| 16 | 5030134 | CLAMP |
| 17 | 5030332 | FUEL VALVE & FILTER ASSY. |
| 22 | 5030011 | SCREW, Fuel valve assy. |
