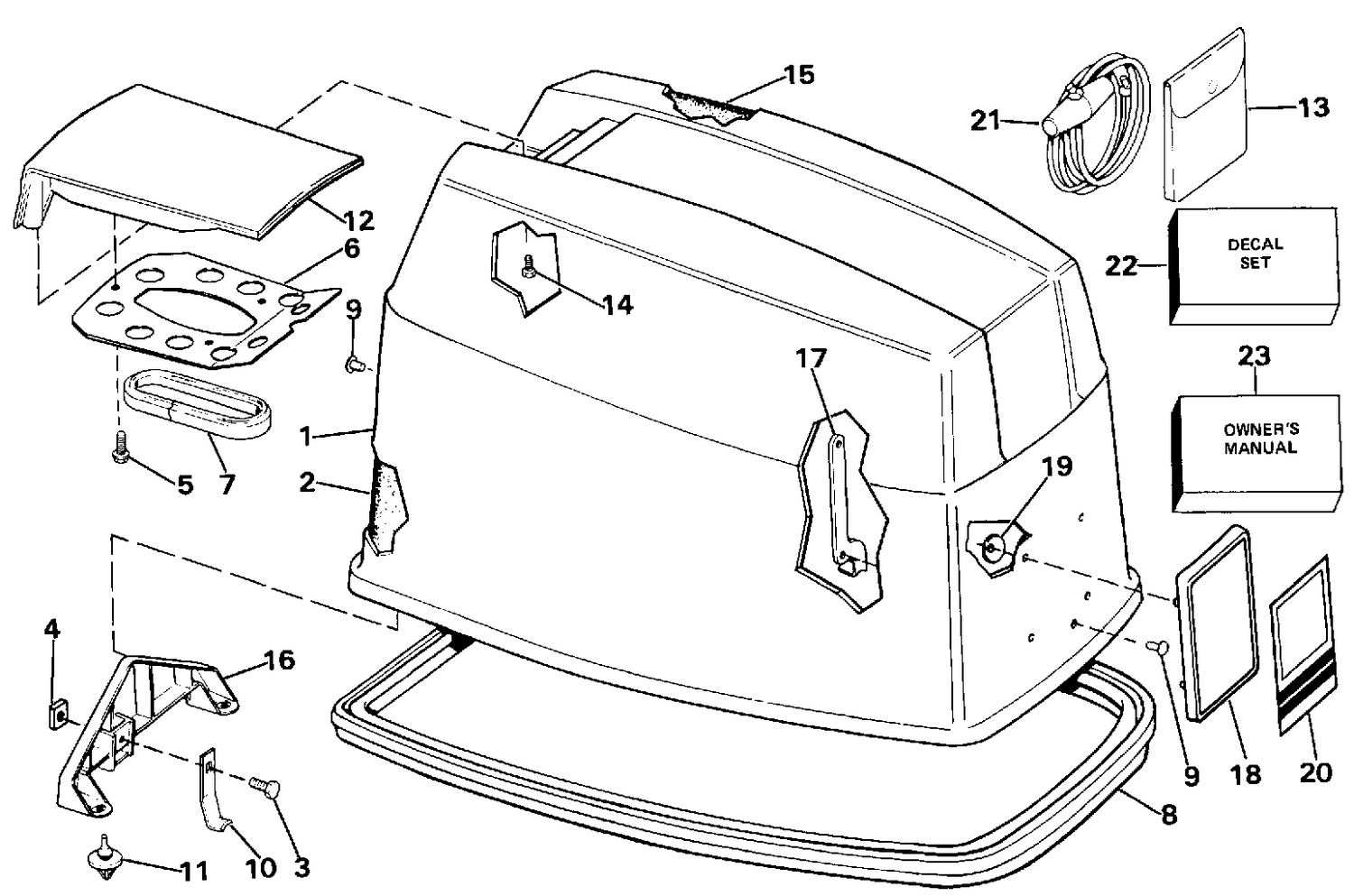

ENGINE COVER - EVINRUDE
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0282191 | ENGINE COVER ASSEMBLY |
| 1 | 0282279 | ENGINE COVER ASSEMBLY |
| 6 | 0206520 | AIR INLET BAFFLE |
| 7 | 0315984 | SEAL , Baffle to motor cover This part replaces 0209507. |
| 8 | 0209518 | SEAL, Engine cover |
| 13 | 0314494 | BAG EMERGENCY STARTER ROPE |
| 18 | 0209788 | APPLIQUE, Front |
| 20 | 0209787 | PLATE, Applique, front, 75 |
| 20 | 0209994 | PLATE, Applique, front, 70 |
| 21 | 0378347 | CORDE DE LANCEUR |
| 22 | 0282246 | DECAL SET |
