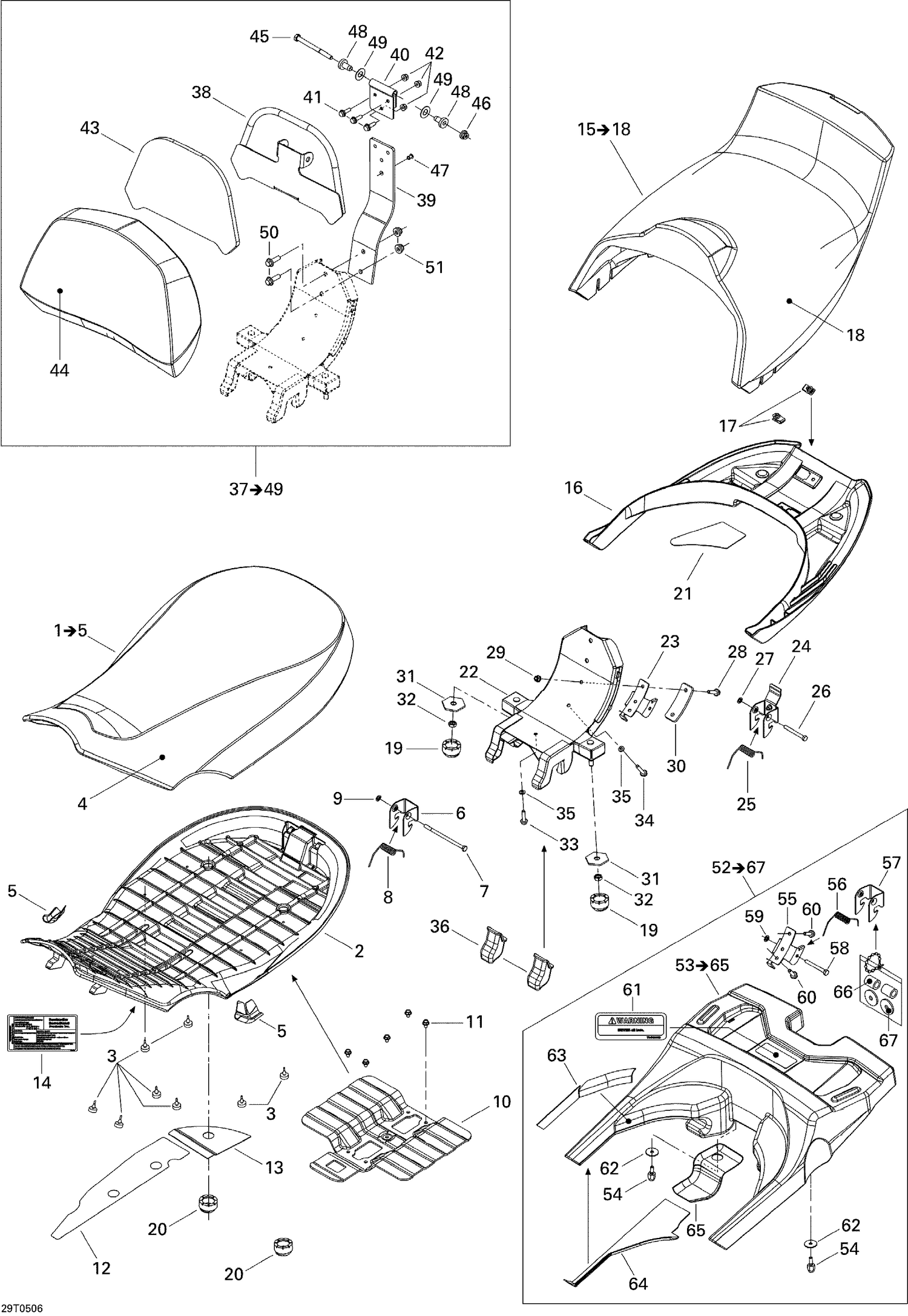

| Ref | Part Number | Description |
|---|
| 2 |
Not |
Available As Spare Part - Seat Base |
| 3 |
708000759 |
Rubber Stopper This part replaces 708000125. |
| 4 |
708000556 |
Seat Cover This part replaces 708000380. |
| 5 |
708000127 |
SEAT CORNER, BLACK - Call your local BRP dealership |
| 6 |
708000144 |
Latch, Black |
| 7 |
230061060 |
HEX. SCREW M6 X 110 - Call your local BRP dealership |
| 8 |
708000369 |
Spring |
| 9 |
732610072 |
Push Nut |
| 10 |
708000817 |
REINFORCEMENT SEAT - Call your local BRP dealership This part replaces 708000263. |
| 11 |
210261050 |
Hex. Forming Screw M6 X 10 This part replaces 210261080. |
| 12 |
708000198 |
REFLECTING SHEET - Call your local BRP dealership |
| 13 |
708000322 |
Reflecting Sheet |
| 14 |
704900874 |
Emission Label |
| 16 |
Not |
Available As Spare Part - Seat Base |
| 17 |
250100198 |
Panel Nut M6 X 1.0 This part replaces 250000048. |
| 18 |
708000383 |
Seat Cover |
| 19 |
708000760 |
Bumper Rubber This part replaces 708000323. |
| 20 |
708000760 |
Bumper Rubber This part replaces 708000323. |
| 21 |
708000268 |
Reflecting Sheet |
| 22 |
708000305 |
Seat Reinforcement |
| 23 |
708000309 |
LOCK SUPPORT, BLACK - Call your local BRP dealership |
| 24 |
708000398 |
Latch |
| 25 |
708000369 |
Spring |
| 26 |
207065544 |
Hex. Screw M6 X 55 |
| 27 |
732610072 |
Push Nut |
| 28 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 29 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 30 |
708000351 |
Plate |
| 31 |
708000350 |
Adjuster Stopper |
| 32 |
732610010 |
RH Threaded Hex. Jam Nut M10 |
| 33 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 34 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 35 |
234161471 |
Lock Washer M6, Black |
| 36 |
708000343 |
Protector |
| 38 |
Not |
Available As Spare Part - Backrest |
| 39 |
Not |
Available As Spare Part - Backrest Support |
| 40 |
Not |
Available As Spare Part - Pivot Plate |
| 41 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 42 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 43 |
Not |
Available As Spare Part - Backrest Foam |
| 44 |
708000385 |
Backrest Cover |
| 45 |
207089544 |
Hex. Screw M8 X 95 |
| 46 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 47 |
293150104 |
Pop Rivet 3/16" |
| 48 |
Not |
Available As Spare Part - Sleeve Pivot |
| 49 |
706200281 |
Hardened Washer |
| 50 |
207682544 |
Hex. Flange Screw M8 X 25 |
| 51 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 54 |
Not |
Available As Spare Part - Location Pins |
| 55 |
708000309 |
LOCK SUPPORT, BLACK - Call your local BRP dealership |
| 56 |
708000369 |
Spring |
| 57 |
708000144 |
Latch, Black |
| 58 |
207065544 |
Hex. Screw M6 X 55 |
| 59 |
732610072 |
Push Nut |
| 60 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 61 |
704900446 |
WARNING DECAL NEVER SIT HERE - Call your local BRP dealership |
| 62 |
224060251 |
Washer |
| 63 |
705001452 |
REFLECTING SHEET - Call your local BRP dealership |
| 64 |
705001453 |
REFLECTING SHEET - Call your local BRP dealership |
| 65 |
705001454 |
REFLECTING SHEET - Call your local BRP dealership |
| 66 |
219704394 |
Was 276000001 Hose 12.5 mm |
