Parts Catalog

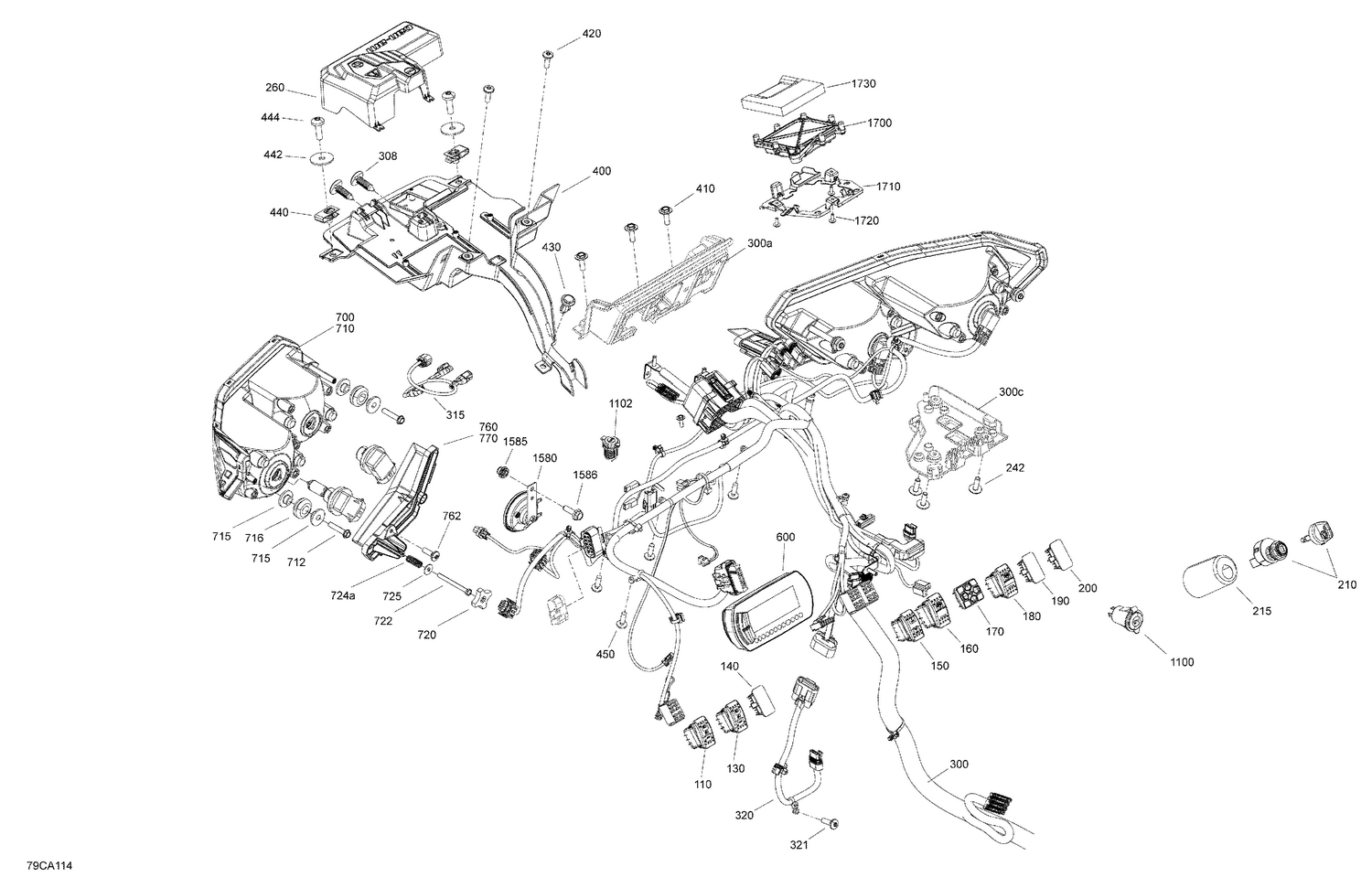

08- Electric - Front System

Parts (48)

Ref	Part Number	Description
110	710004492	Light Switch
130	710006788	Horn Switch
140	710007173	Plug Carling
150	710006040	Differential Switch
160	710006559	Differential Mode Switch
170	710006650	Multifonction Switch
180	710005470	Differential Lock Switch
190	710007173	Plug Carling
200	710007173	Plug Carling
210	710007870	Inter Allumage *Ignition This part replaces 710004198.
215	710005739	Key Switch Protector
242	250000959	Screw PT Type K-50 X 16
260	710006707	Junction Block Cover
300a	710006640	Fusebox Support
300c	710006706	Connector Support
308	293730006	Black, Dart
315	710006807	Front Differential Wiring Harness
320	710006837	Throttle Pedal Harness
321	250000720	Torx Screw K50 X 16
400	710006649	Wiring Harness Support
410	250000959	Screw PT Type K-50 X 16
420	250000720	Torx Screw K50 X 16
430	293150230	Tuflok Plastic Rivet
440	250100198	Panel Nut M6 X 1.0 This part replaces 250000957.
442	250200029	Washer M6
444	250000712	Torx Screw M6 X 20
450	250000720	Torx Screw K50 X 16
600	710007409	Multifunction Gauge MID
700	710008316	LH Beam This part replaces 710006976.
710	710008317	RH Beam This part replaces 710006977.
712	241152540	Hex. Flange Screw K50 X 2.24 X 25
715	710004749	Shoulder Bushing
716	709000582	Grommet
720	572106600	Handle
722	250000718	Hex. Screw K40 X 45
724a	517168600	Spring
725	234042600	Flat Washer 4 mm, Stainless
760	710006374	LH Auxiliary LED Headlight
762	250000959	Screw PT Type K-50 X 16
770	710006375	RH Auxiliary LED Headlight
1100	710005374	Prise Accessoire 12V
1102	219400510	USB Outlet
1580	710004791	Horn
1585	250100199	Insert Half Hex Body M6 x 1.0
1586	207662054	Hex. Flange Screw M6 X 20
1700	710008871	Differential Module This part replaces 710008127.
1710	710005532	FDM Support
1720	250000959	Screw PT Type K-50 X 16
