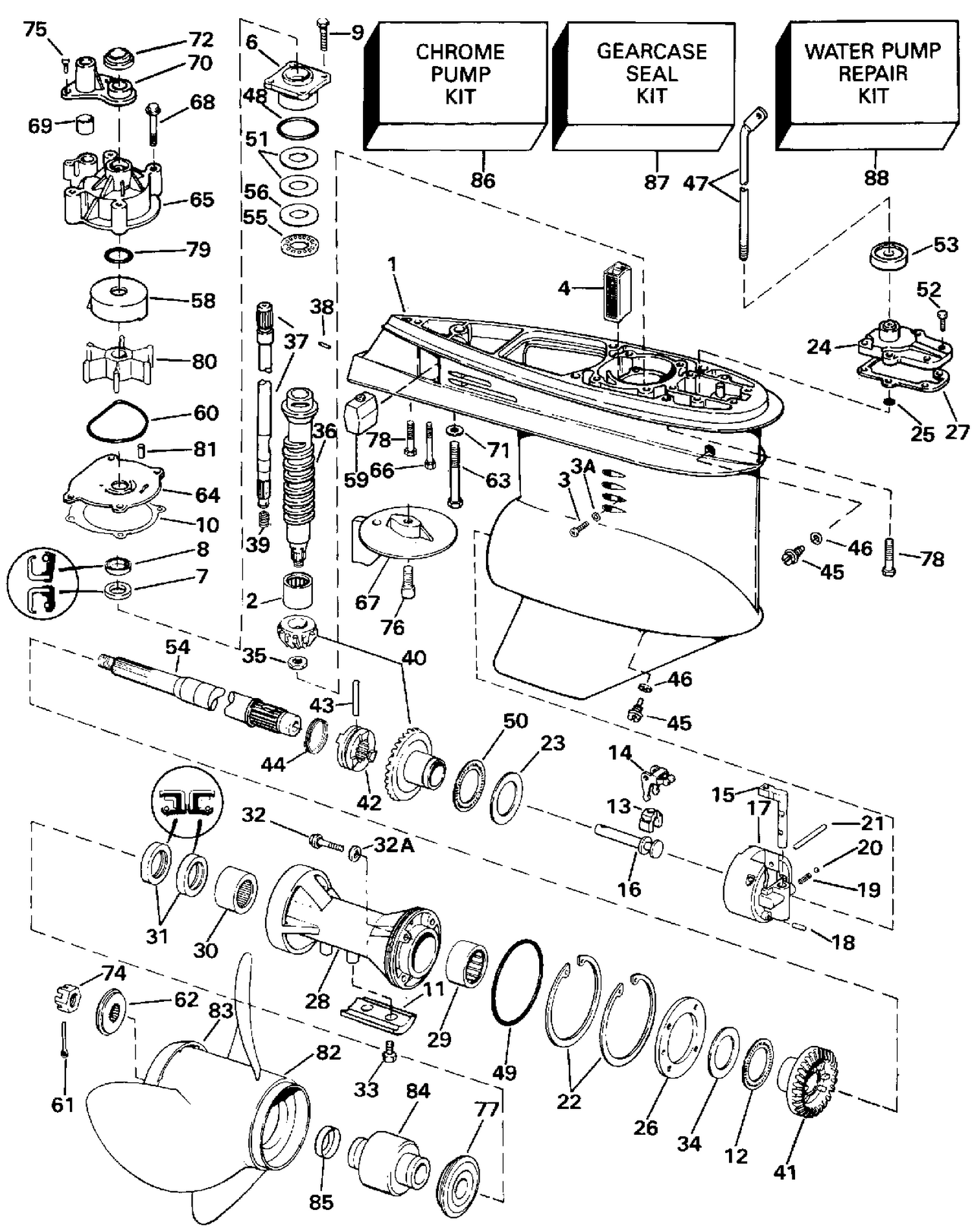

| Ref | Part Number | Description |
|---|
| 1 |
0431642 |
GEARCASE & BEARING ASSY. |
| 28 |
0397087 |
BEARING HOUSING SEAL ASSY. |
| 32 |
0316563 |
SCREW |
| 32A |
0332583 |
SCREW & SEAL ASSY. |
| 36 |
0335722 |
DRIVESHAFT, Lower |
| 37 |
5007671 |
DRIVESHAFT Assembly, Upper This part replaces 0337058. |
| 39 |
0335684 |
DRIVESHAFT SPRING |
| 47 |
0323269 |
SHIFT ROD |
| 54 |
0436888 |
PROPELLER SHAFT ASSY. This part replaces 0387818. |
| 58 |
0435027 |
CUP & PLATE This part replaces 0330379. |
| 58 |
0435526 |
CHROME CUP & PLATE KIT This part replaces 0330384. |
| 60 |
0331353 |
Seal, Impeller Housing Plate. |
| 63 |
0331998 |
SCREW, Gearcase to housing |
| 64 |
0435027 |
CUP & PLATE This part replaces 0330380. |
| 64 |
0435526 |
CHROME CUP & PLATE KIT This part replaces 0330383. |
| 65 |
0435485 |
IMPELLER HOUSING ASSY. This part replaces 0395040. |
| 67 |
0127466 |
TRIM TAB This part replaces 0337348. |
| 68 |
0335221 |
SCREW, Throttle body to reed plate This part replaces 0328715. |
| 71 |
0306314 |
L'WASHER,Scr,long |
| 76 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 78 |
0331999 |
SCREW, Gearcase housing |
| 79 |
0332000 |
SEAL RING |
| 82 |
0382761 |
PROPELLER ,14 x 11 |
| 82 |
0383160 |
PROPELLER 14 X 19 |
| 82 |
0389510 |
PROPELLER, 13 * 19 SST |
| 82 |
0389512 |
PRO, 12-3/4 x 21 sst cupped |
| 82 |
0389788 |
PROPELLER, 12 3/4 x 21 |
| 82 |
0389792 |
PROPELLER 14 x 11 -SST |
| 82 |
0389948 |
PROPELLER, 12-3/4 x 17 - SST |
| 82 |
0389949 |
PROPELLER, 12 3/4 X 15-SST |
| 82 |
0390896 |
PROPELLER, 13 * 19 AL. |
| 82 |
0392261 |
PROPELLER 13 3/4 X 13 - SST |
| 82 |
0394758 |
PROPELLER 13 1/2 X 21 SST II |
| 82 |
0394759 |
PROPELLER, 13 1/2 x 20 OMC Raker |
| 82 |
0394760 |
PROPELLER, 13 1/2 x 22 OMC Raker |
| 82 |
0765181 |
PROPELLER This part replaces 0391668. |
| 82 |
0765182 |
PROPELLER - W Models This part replaces 0391198. |
| 82 |
0765183 |
PROPELLER, WDEL Models This part replaces 0391199. |
| 86 |
0435526 |
CHROME CUP & PLATE KIT This part replaces 0395059. |
| 87 |
5006373 |
GEARCASE SEAL KIT This part replaces 0396354. |
| 88 |
5001594 |
WATER PUMP REPAIR KIT This part replaces 0395060. |
| 0435704 |
0435704 |
GEARCASE ASSY., Complete |
