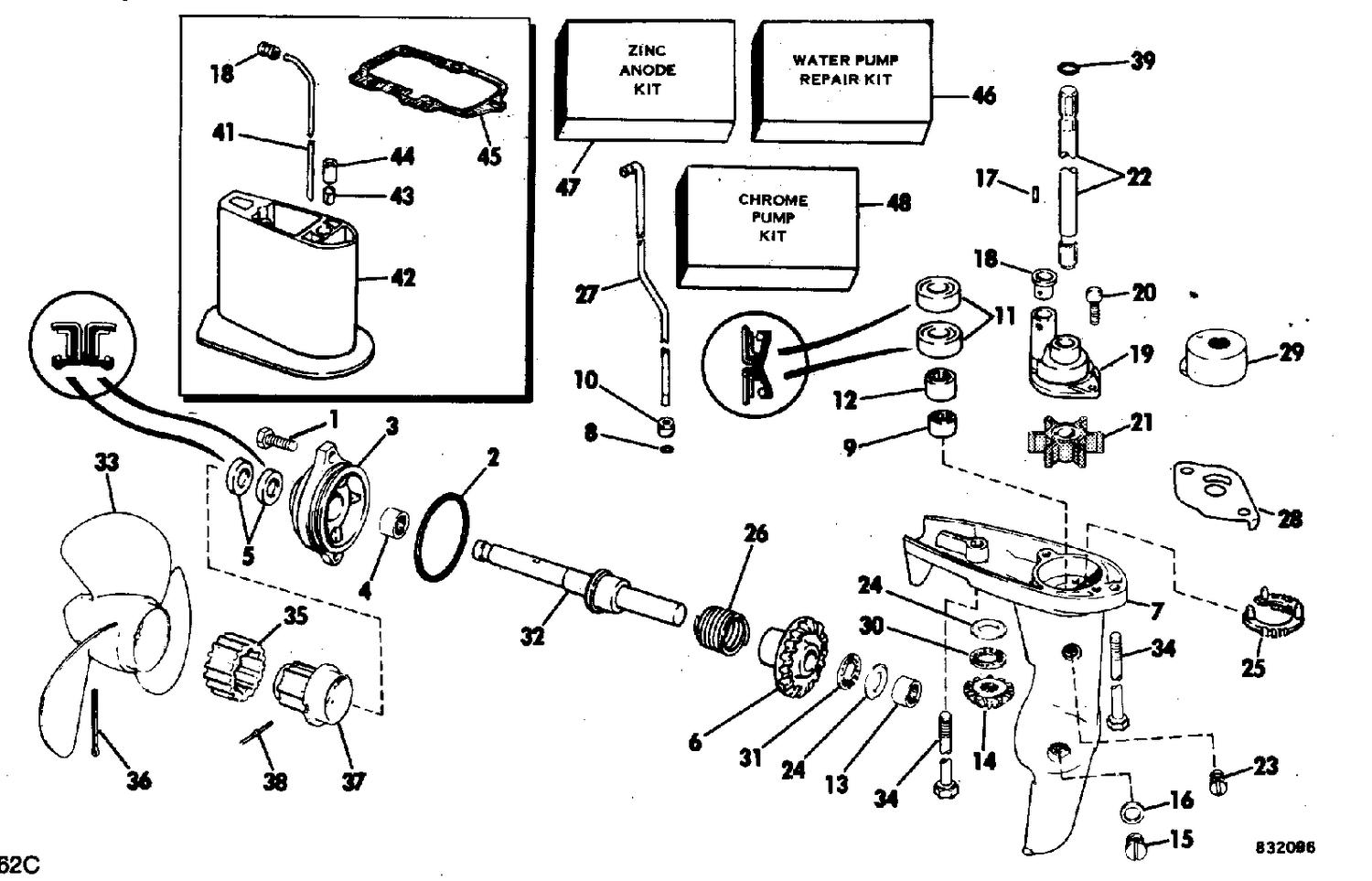

| Ref | Part Number | Description |
|---|
| 1 |
0300646 |
VIS, ancrage |
| 17 |
0300611 |
AXE, turbine vers arbre d'entraînement |
| 18 |
0317462 |
GROMMET, Water tube |
| 19 |
0326200 |
WATER PUMP IMPELLER HOUSING |
| 21 |
0389576 |
IMPELLER ASSY |
| 22 |
0391594 |
DRIVESHAFT ASSY., Std |
| 22 |
0391595 |
DRIVESHAFT ASSY., Long |
| 28 |
0326201 |
PLATE, Housing |
| 32 |
0398315 |
PROPELLER SHAFT ASSY. This part replaces 0390689. |
| 33 |
0317499 |
PROPELLER 7 1/2 X 6 (BLACK) |
| 33 |
0318487 |
PROPELLER This part replaces 0319774. |
| 33 |
0327677 |
PROPELLER, 7 1/2 x 6 1/2 |
| 34 |
0319545 |
VIS, supports de montage supérieurs vers support de direction |
| 35 |
0310331 |
RING, Clutch |
| 37 |
0391598 |
CLUTCH HUB, Propeller |
| 38 |
0333513 |
DRIVE IN, Propeller This part replaces 0326032. |
| 45 |
0327169 |
GASKET, Cyl. & c'case to exh. hsg. |
| 46 |
0394116 |
WATER PUMP REPAIR KIT (INCLUDES IMPELLER HOUSING) This part replaces 0391292. |
| 47 |
0173029 |
ANODE |
| 336 |
0313693 |
COTTER PIN |
| 0391736 |
0391736 |
EXTENSION KIT - 5 in |
| 0392857 |
0392857 |
GEARCASE ASSY.,Std |
| 0392858 |
0394061 |
GEARCASE ASSY., Long This part replaces 0392858. |
