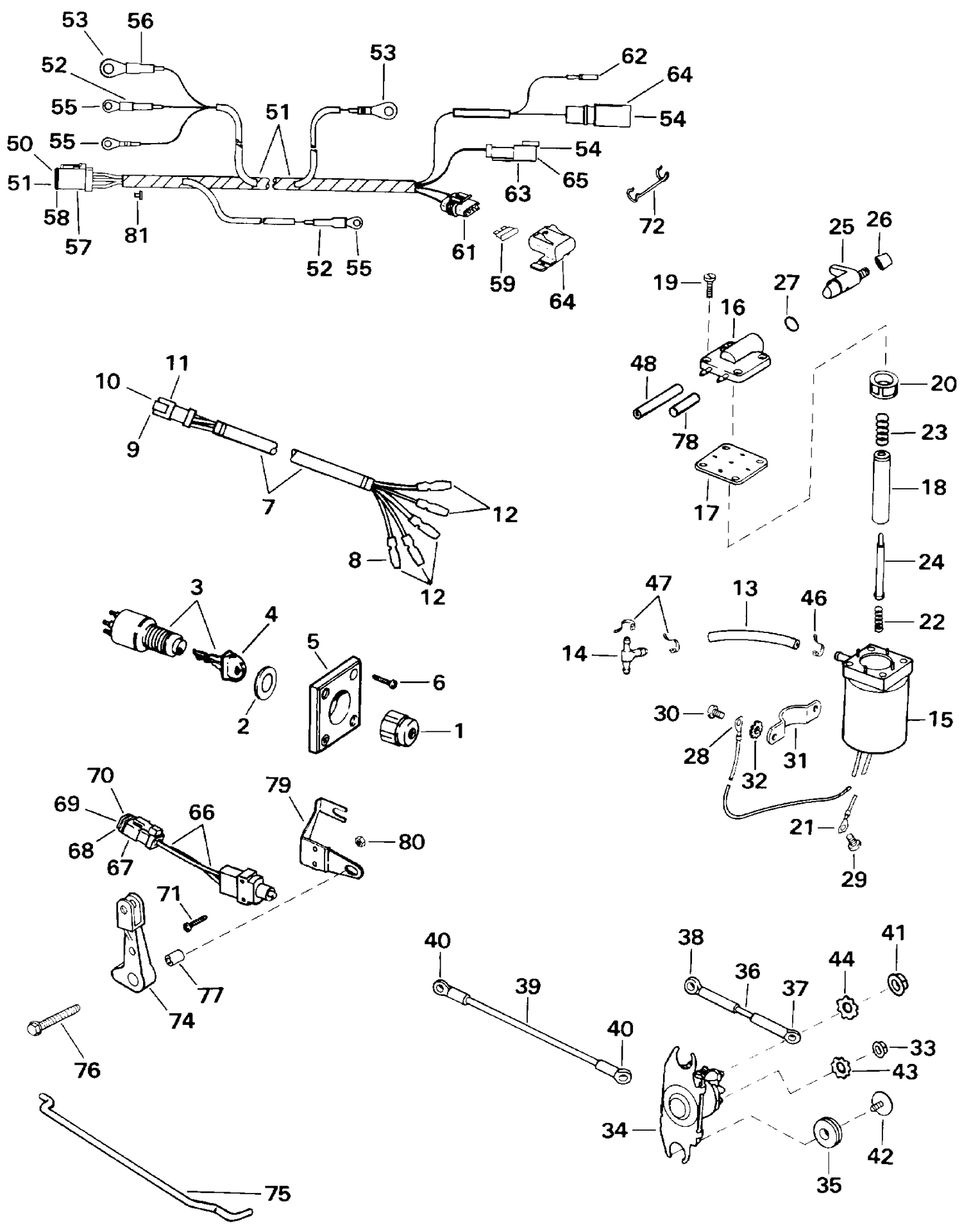

REMOTE START KIT - 9.9, 15 TILLER ELECTRIC (2-STROKE)
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 13 | *HOSE, | Tee to primer, 1 in. (25mm) |
| 15 | 5007356 | Kit Ay This part replaces 0437233. |
| 29 | 0329182 | VIS, borne |
| 47 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 48 | *HOSE, | Primer to carb, 3 1/2 in. (82mm) |
| 72 | 0512741 | DISPOSITIF DE RETENUE, conn. de l'interrupteur thermostatique |
| 77 | 0338250 | ENTRETOISE, manette des gaz |
| 0176905 | KIT | ASSY., Remote start 0176905 |
