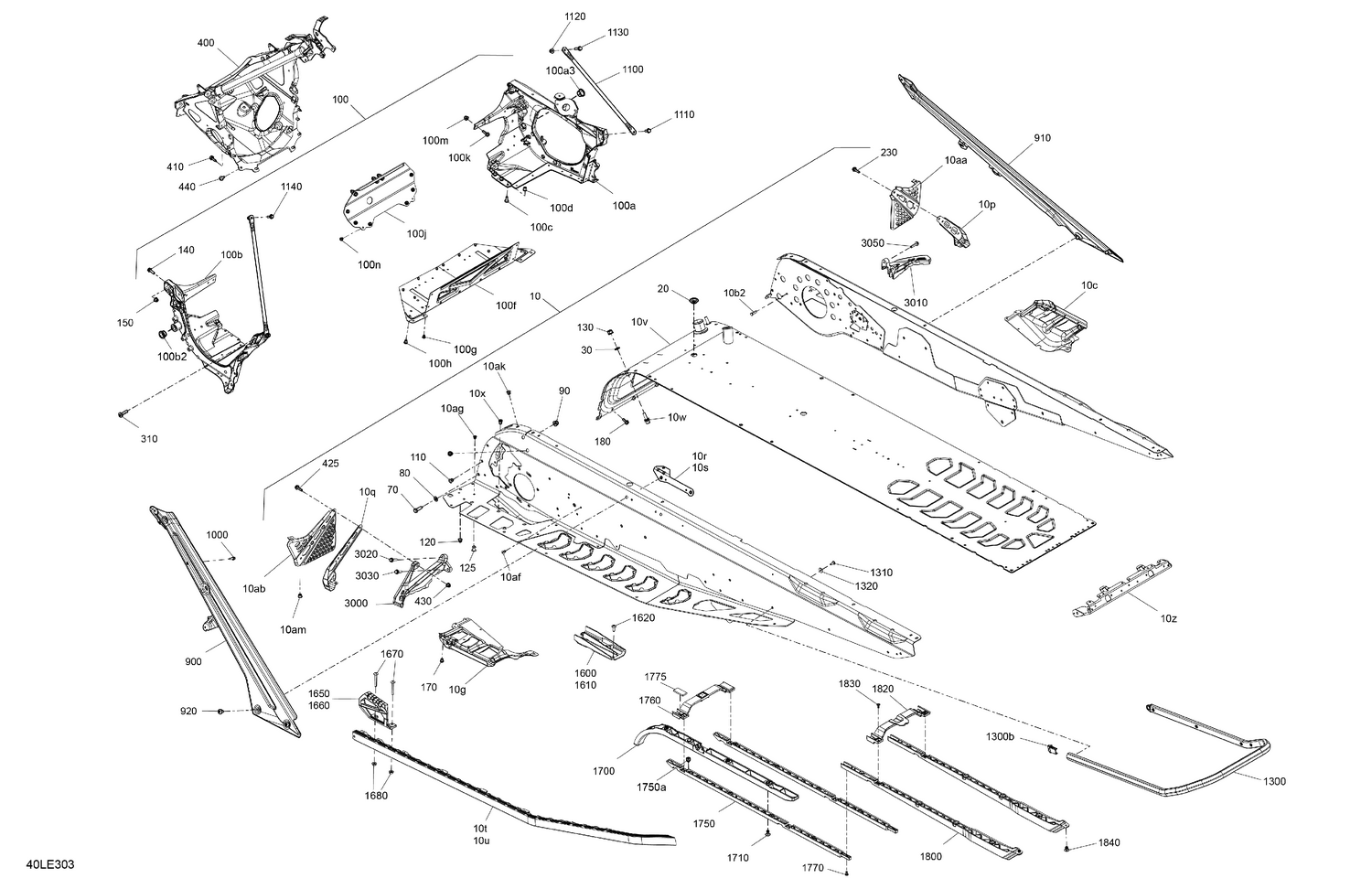

| Ref | Part Number | Description |
|---|
| 10aa |
518333006 |
RH Footrest |
| 10ab |
518333858 |
LH Footrest |
| 10af |
390909100 |
Avex Rivet |
| 10ag |
390909200 |
Avex Rivet |
| 10ak |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 10am |
293150266 |
Rivet Ornit 6,5 X 14.5 |
| 10b2 |
250300027 |
Clinch Stud M6 X 20 |
| 10c |
518330964 |
RH Footrest Reinforcement |
| 10g |
518330965 |
LH Footrest Reinforcement |
| 10p |
518334828 |
RH Stirrup Reinforcement |
| 10q |
518334829 |
LH Stirrup Reinforcement |
| 10r |
518331744 |
LH Under Chassis Reinforcement |
| 10s |
518331745 |
RH Under Chassis Reinforcement |
| 10t |
518334411 |
RH Chassis Reinforcement |
| 10u |
518334410 |
LH Chassis Reinforcement |
| 10v |
518335125 |
Radiator Tunnel 137 |
| 10w |
250300652 |
Protruding Stud M8 x 22 |
| 10x |
605636003 |
Clinch Nut M6 Hexsert |
| 10z |
518328990 |
Rear Cap |
| 20 |
293730052 |
Black, Plug |
| 30 |
250200146 |
Conical Spring Washer M8 |
| 70 |
250000942 |
Hex Screw M8 X 30 |
| 80 |
234081410 |
Flat Washer 8 mm |
| 90 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 100a3 |
505072690 |
Leg Bushing |
| 100b2 |
505072690 |
Leg Bushing |
| 100c |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 100d |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 100f |
518332716 |
Bottom Plate |
| 100g |
390909100 |
Avex Rivet |
| 100h |
293450268 |
Insert M5 X 0.8 |
| 100j |
518330100 |
Front Member |
| 100k |
207662046 |
Hex. Flange Screw M6 X 20 |
| 100m |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 100n |
390909100 |
Avex Rivet |
| 110 |
293150267 |
Rivet Ornit 6,5 X 16.5 |
| 120 |
293150265 |
Rivet Ornit 6,5 X 12.5 |
| 125 |
293150268 |
Rivet Ornit 6,5 X 18.5 |
| 130 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 150 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 170 |
293450268 |
Insert M5 X 0.8 |
| 180 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 230 |
207562056 |
Hex. Flange Screw S.Grip M6 X 20 |
| 310 |
250001060 |
Pan Screw HD.Torx M8X30 |
| 400 |
518334460 |
Chassis Suspension Module |
| 410 |
250001051 |
Hex. Forming Screw HD.FL. M6 X 16 |
| 425 |
207663546 |
Hex. Flange Screw M6 x 35 |
| 430 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 440 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 900 |
518336929 |
Deep Black, LH Rear Diagonal Cross Member This part replaces 518333956. |
| 910 |
518336930 |
Deep Black, RH Rear Diagonal Cross Member This part replaces 518333957. |
| 920 |
250000887 |
Pan Head Torx Screw M8 X 12 |
| 1000 |
250300651 |
Protruding Stud M5 X 12 |
| 1100 |
518329974 |
Upper Colomn Support |
| 1110 |
207561646 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 1120 |
233261416 |
Elastic Flanged Nut M6 X 1.0 |
| 1130 |
207662556 |
Hex. Flange Screw M6 X 25 |
| 1140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 1300b |
520001612 |
Cap |
| 1310 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 1320 |
224061201 |
Flat Washer |
| 1600 |
518335582 |
LH Footrest |
| 1610 |
518335583 |
LH Footrest |
| 1620 |
250000755 |
Torx Screw M6 X 16 |
| 1650 |
518330797 |
LH Side Foot Support |
| 1660 |
518330798 |
RH Side Foot Support |
| 1670 |
250000748 |
Torx Screw M6 X 45 |
| 1680 |
233161414 |
Hex. Flange Nut M6 |
| 1700 |
518329982 |
Front Protector |
| 1710 |
293150308 |
Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 1750a |
293830005 |
Rubber Bumper |
| 1760 |
518334162 |
Front Protective Structure |
| 1770 |
250001131 |
Torx Truss PT K40 x 12 |
| 1775 |
705002447 |
Gasket |
| 1800 |
518329979 |
Rear Protector |
| 1820 |
518333936 |
Central Protective Structure |
| 1830 |
250001131 |
Torx Truss PT K40 x 12 |
| 1840 |
293150308 |
Black, Ornit Rivet 3/16 X ,675 This part replaces 293150308. |
| 3000 |
518334924 |
LH Front Stirup |
| 3010 |
518329134 |
Toe Hold |
| 3020 |
250000793 |
Hex. Flange Screw M6 X 25 |
| 3030 |
207562054 |
Hex. Flange Screw S.GRIP M6 X 20 |
