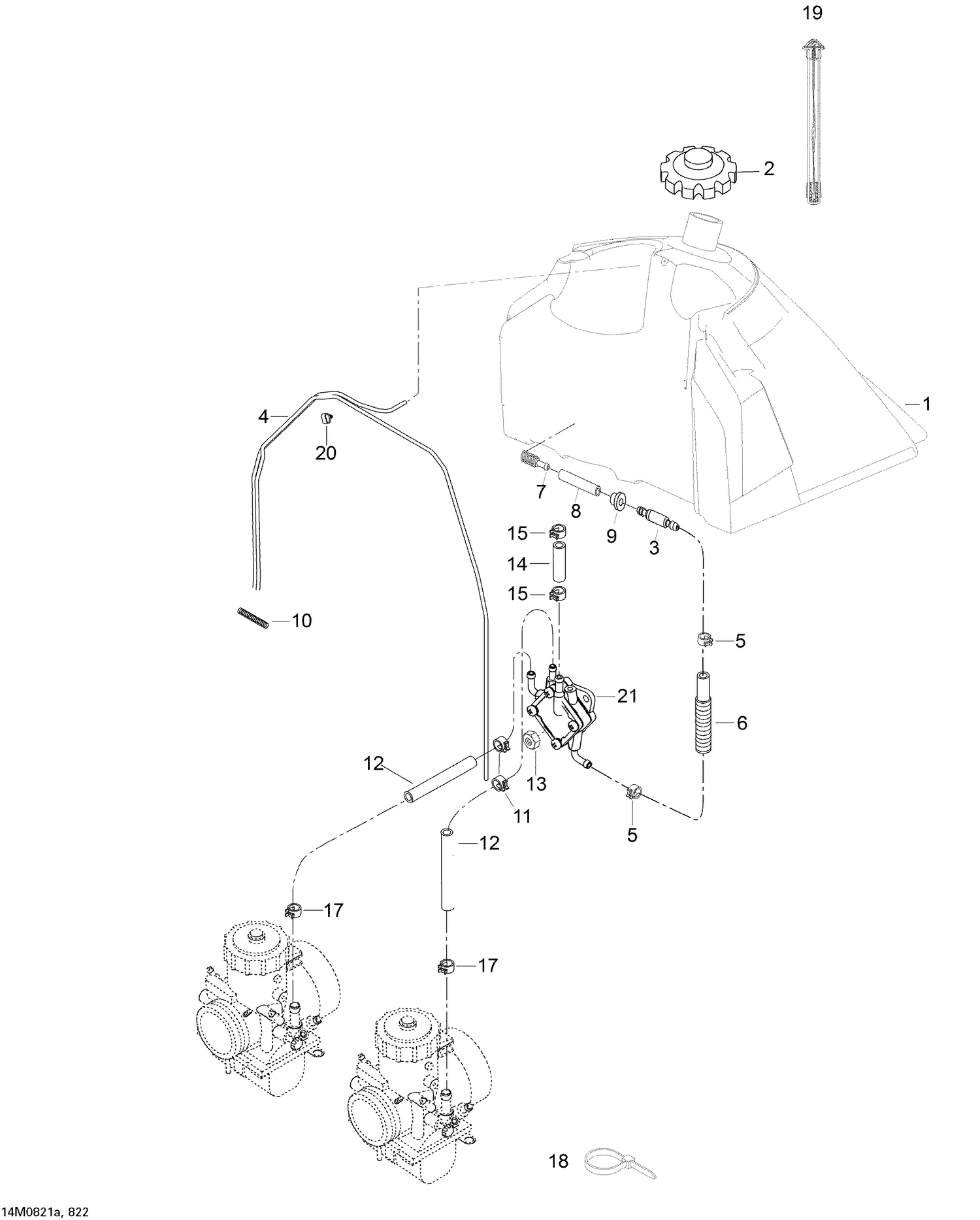

| Ref | Part Number | Description |
|---|
| 1 |
605154804 |
FUEL TANK - Call your local BRP dealership |
| 2 |
513033025 |
Fuel Tank Cap This part replaces 580259400. |
| 3 |
414872700 |
Male Connector |
| 4 |
M39035 |
HOSE - Call your local BRP dealership |
| 5 |
513032923 |
TUBE CLAMP - Call your local BRP dealership |
| 6 |
219704355 |
TUBING 1000MM LONG - Call your local BRP dealership |
| 7 |
414872100 |
Fuel Filter Strainer |
| 8 |
219704414 |
Was 415110000 Polyurethane Hose 5.2 mm |
| 9 |
707800347 |
Grommet This part replaces 570273900. |
| 10 |
M25003 |
SPRING - Call your local BRP dealership |
| 11 |
414420700 |
Spring Clamp |
| 12 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 13 |
232561414 |
Elastic Stop Nut M6 |
| 14 |
605355647 |
Hose 1/4, 350 mm |
| 15 |
513032979 |
UNIVERSAL SPRING CLAMP - Call your local BRP dealership |
| 17 |
414415200 |
Spring Clamp |
| 18 |
414115200 |
Tie-Rap 180 mm |
| 19 |
605351982 |
FUEL GAUGE - Call your local BRP dealership |
| 20 |
707800347 |
Grommet This part replaces 570273900. |
