Home / BRP / Can-Am 3-Wheel Vehicles / 2016 / RT Familly / RT, 2016 000A3GD00 000A3GF00 000A4GA00 000A4GB00 000A4GC00 000A4GD00 000A4GG00 000A4GJ00 000A4GK00 000B2GB00 000B2GC00 000B2GF00 000B5GA00 000B5GH00 000B5GJ00 000B9GA00 000B9GB00 000B9GC00 000B9GD00 000B9GF00 000B9GG00 000B9GH00 000B9GJ00 000G3GA00 000G3GB00 000G3GC00 000G3GH00 / 01- Valve Cover

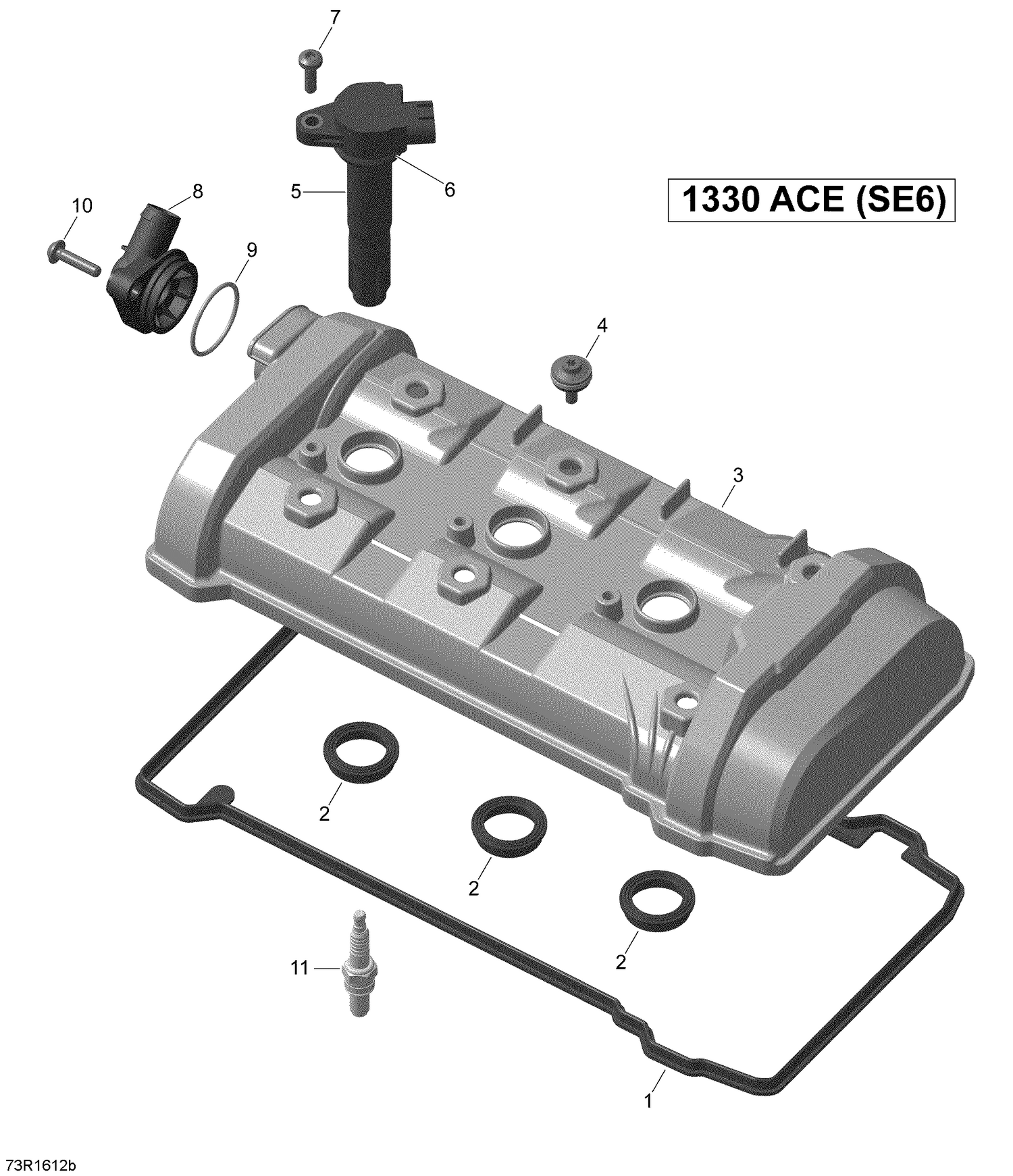

01- Valve Cover

01- Valve Cover

Parts (9)

RefPart NumberDescription
1 420250220 Gasket
2 420250240 Gasket
3 420210190 Valve Cover
4 420440495 Torx Distance Screw M6
6 420201430 Protection Cap
7 420441386 Torx Flange Screw M6 X 20
8 420210630 Connector
9 420950870 O-Ring
10 420841549 Torx Flange Screw M6 X 25
