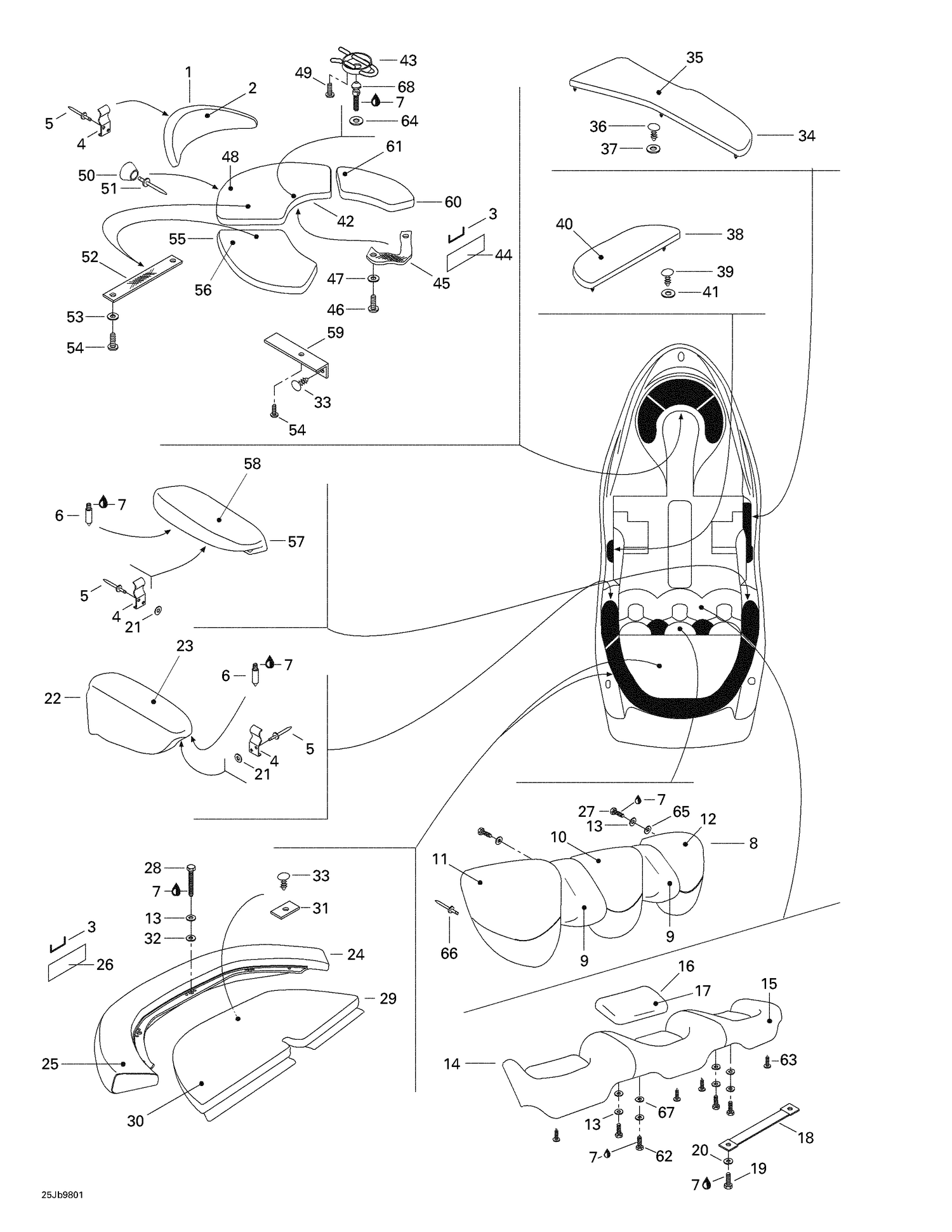

| Ref | Part Number | Description |
|---|
| 2 |
204610029 |
Front Backrest Cover (Dark Green) |
| 3 |
293730005 |
Staple |
| 4 |
269000388 |
SEAT SUPPORT - Call your local BRP dealership |
| 5 |
293150043 |
Pop Rivet 3/16" |
| 6 |
269000380 |
Threaded Rod M5 |
| 7 |
293800060 |
Loctite 243, 10 ml This part replaces 293800015. |
| 9 |
204610035 |
Rear Bump Cover (Dark Green) |
| 10 |
204610368 |
Rear Backrest Cover (White) (Center) |
| 11 |
204610369 |
Rear Backrest Cover (White) R.H |
| 12 |
204610382 |
Rear Backrest Cover (White) L.H |
| 13 |
234062600 |
Flat Washer M6, Stainless This part replaces 213200007. |
| 15 |
204610039 |
Rear Seat Cover (Dark Green) |
| 17 |
204610384 |
Rear Seat Pillow Cover |
| 18 |
204610284 |
Retaining Strap |
| 19 |
207161660 |
Hex. Screw M6 X 16 This part replaces 215061660. |
| 20 |
234062600 |
Flat Washer M6, Stainless This part replaces 213200007. |
| 21 |
234061600 |
Stainless Flat Washer M6 This part replaces 213200001. |
| 23 |
204610050 |
LH Rear Seat Arm-Rest Cover (Dark Green) |
| 25 |
204610052 |
Rear Spoiler Cover (Dark Green) |
| 26 |
204610184 |
Staple Cover, Meter |
| 27 |
207164060 |
Hex. Screw M6 X 40 This part replaces 210000012. |
| 28 |
207162560 |
Hex. Screw M6 X 25 This part replaces 210000005. |
| 30 |
204610361 |
Platform Cover |
| 31 |
204610194 |
Strap |
| 32 |
234002600 |
Flat Washer 10 mm, Stainless This part replaces 217002600. |
| 33 |
293730006 |
Black, Dart |
| 35 |
204610120 |
RH Elbow Padding Cover (Dark Green) |
| 36 |
293730006 |
Black, Dart |
| 37 |
234062600 |
Flat Washer M6, Stainless This part replaces 213200007. |
| 39 |
293730006 |
Black, Dart |
| 40 |
204610122 |
LH Elbow Padding Cover (Dark Green) |
| 41 |
234062600 |
Flat Washer M6, Stainless This part replaces 213200007. |
| 43 |
204610178 |
Front Seat Latch |
| 44 |
204610184 |
Staple Cover, Meter |
| 45 |
293000060 |
Passenger Strap |
| 46 |
241140060 |
Screw K40 X 10 This part replaces 211000028. |
| 47 |
234042600 |
Flat Washer 4 mm, Stainless This part replaces 217042600. |
| 48 |
204610350 |
Center Front Seat Cover (White) |
| 49 |
205441660 |
Socket Head Screw M4 X 16 This part replaces 211000086. |
| 50 |
293830043 |
Rubber Stopper |
| 51 |
293150013 |
Pop Rivet 3/16" |
| 52 |
293000060 |
Passenger Strap |
| 53 |
234042600 |
Flat Washer 4 mm, Stainless This part replaces 217042600. |
| 54 |
241140060 |
Screw K40 X 10 This part replaces 211000028. |
| 56 |
204610353 |
LH Front Seat Cover (White) |
| 58 |
204610048 |
RH Rear Seat Arm-Rest Cover (Dark Gree |
| 59 |
204610100 |
SEAT BRACKET - Call your local BRP dealership |
| 61 |
204610355 |
RH Front Seat Cover (White) |
| 62 |
207164560 |
Hex. Screw M6 X 45 This part replaces 215064560. |
| 63 |
293730014 |
Black Dart |
| 64 |
234062600 |
Flat Washer M6, Stainless This part replaces 213200007. |
| 65 |
234082600 |
Flat Washer 8 mm, Stainless This part replaces 213200011. |
| 66 |
293150008 |
Pop Rivet 3/16" This part replaces 293150011. |
| 67 |
234082600 |
Flat Washer 8 mm, Stainless This part replaces 213200011. |
