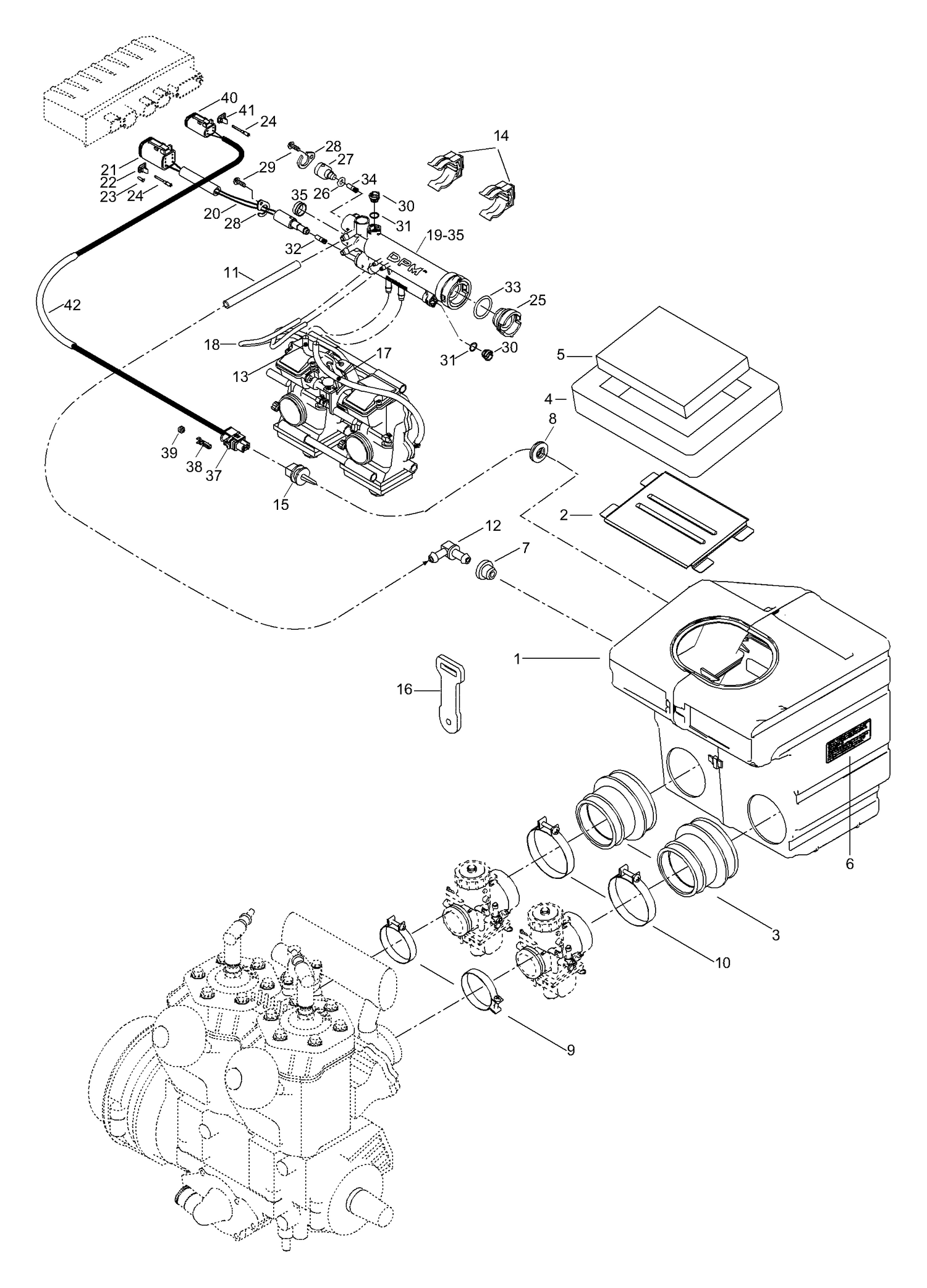

01- Air Silencer
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 508000004 | INTAKE GRILL - Call your local BRP dealership |
| 3 | 508000092 | Intake adaptor |
| 4 | 508000099 | Lower foam |
| 5 | 508000154 | Air filter |
| 6 | 516001191 | Caution Label, Air Intake |
| 7 | 513032908 | Grommet |
| 8 | 570065500 | GROMMET - Call your local BRP dealership |
| 9 | 512059835 | Clamp This part replaces 512059305. |
| 10 | 27046 | Clamp |
| 11 | 39004 | Hose |
| 12 | 414580600 | Connector |
| 13 | 512059524 | Hose |
| 14 | 512058919 | SUPPORT - Call your local BRP dealership |
| 15 | 270600000 | AIR TEMPERATURE SENSOR - Call your local BRP dealership |
| 16 | 512059372 | CARBURETOR LATCH - Call your local BRP dealership |
| 17 | 39004 | Hose |
| 18 | 404161904 | HOSE - Call your local BRP dealership |
| 20 | 515175693 | Harness assy |
| 21 | 515175673 | Connector housing |
| 22 | 515175678 | Lock |
| 23 | 293000052 | Sealing Cap |
| 24 | 278000632 | Female terminal |
| 25 | 512058949 | Cap |
| 26 | 512059558 | O-ring |
| 27 | 512059557 | Cap |
| 28 | 415061600 | SOLENOID LOCK - Call your local BRP dealership |
| 29 | 241140060 | Screw K40x10 |
| 30 | 512058921 | Cap |
| 31 | 512058925 | O-ring |
| 32 | 404161825 | STARTER JET - Call your local BRP dealership |
| 33 | 512058950 | O-ring |
| 35 | 512058982 | Cap |
| 37 | 515175588 | FEMALE TERMINAL HOUSING, 2 CIRCUITS - Call your local BRP dealership |
| 38 | 278000998 | Female terminal |
| 39 | 278000999 | Seal |
| 40 | 515175670 | Connector housing |
| 41 | 515175706 | Lock |
