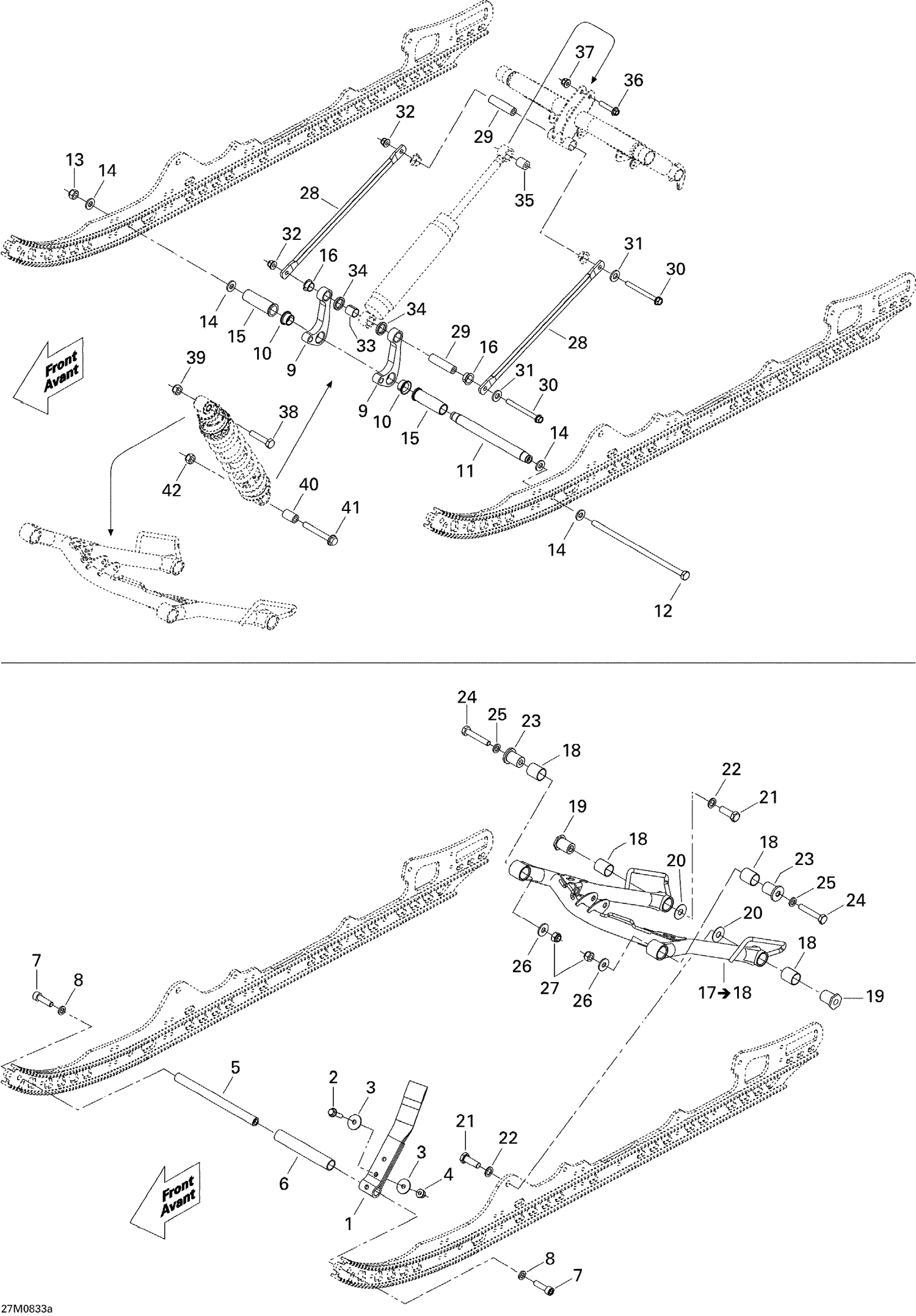

08- Front Arm Renegade
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503192360 | Stopper Strap This part replaces 503191365. |
| 2 | 207683044 | Hex. Flange Screw M8 X 30 |
| 3 | 224081301 | Flat Washer |
| 4 | 233281414 | Hex. Flange Elastic Nut M8 |
| 5 | 503191260 | Axle Strap |
| 6 | 503191448 | Spacer |
| 7 | 205503544 | Socket Head Screw M10 X 35, Scotch Grip |
| 8 | 503189564 | Washer |
| 9 | 503191161 | Rocker Arm |
| 10 | 503191552 | Bushing |
| 11 | 503191764 | Center Shaft |
| 12 | 503191352 | LONG BOLT - Call your local BRP dealership |
| 13 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 14 | 732900049 | Washer |
| 15 | 503191351 | Center Bushing |
| 16 | 503191555 | Swivel Bushing |
| 18 | 503191554 | Bushing |
| 19 | 503191966 | Lower Axle This part replaces 503190727. |
| 20 | 503190656 | Washer |
| 21 | 250000537 | Hex. Cap Screw M12 X 35 This part replaces 250000225. |
| 22 | 503189276 | Washer |
| 23 | 503190698 | Axle |
| 24 | 207006084 | HEX. SCREW M10 X 60 - Call your local BRP dealership |
| 25 | 503189564 | Washer |
| 26 | 250200014 | Flat Washer M10 This part replaces 506151251. |
| 27 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 28 | 503191097 | THROTTLE ROD - Call your local BRP dealership |
| 29 | 503190643 | Axle Bar (Long) |
| 30 | 207089044 | Hex. Screw M8 X 90 |
| 31 | 503189157 | Washer |
| 32 | 233281414 | Hex. Flange Elastic Nut M8 |
| 33 | 503191553 | Bushing |
| 34 | 503190694 | Plastic Spacer |
| 35 | 414936000 | Bushing |
| 36 | 207684044 | Hex. Flange Screw M8 X 40 |
| 37 | 233281414 | Hex. Flange Elastic Nut M8 |
| 38 | 207005044 | Hex. Screw M10 X 1.5 X 50 |
| 39 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 40 | 503190604 | Central Shock Axle |
| 41 | 207607544 | Hex. Flange Screw M10 X 75 |
