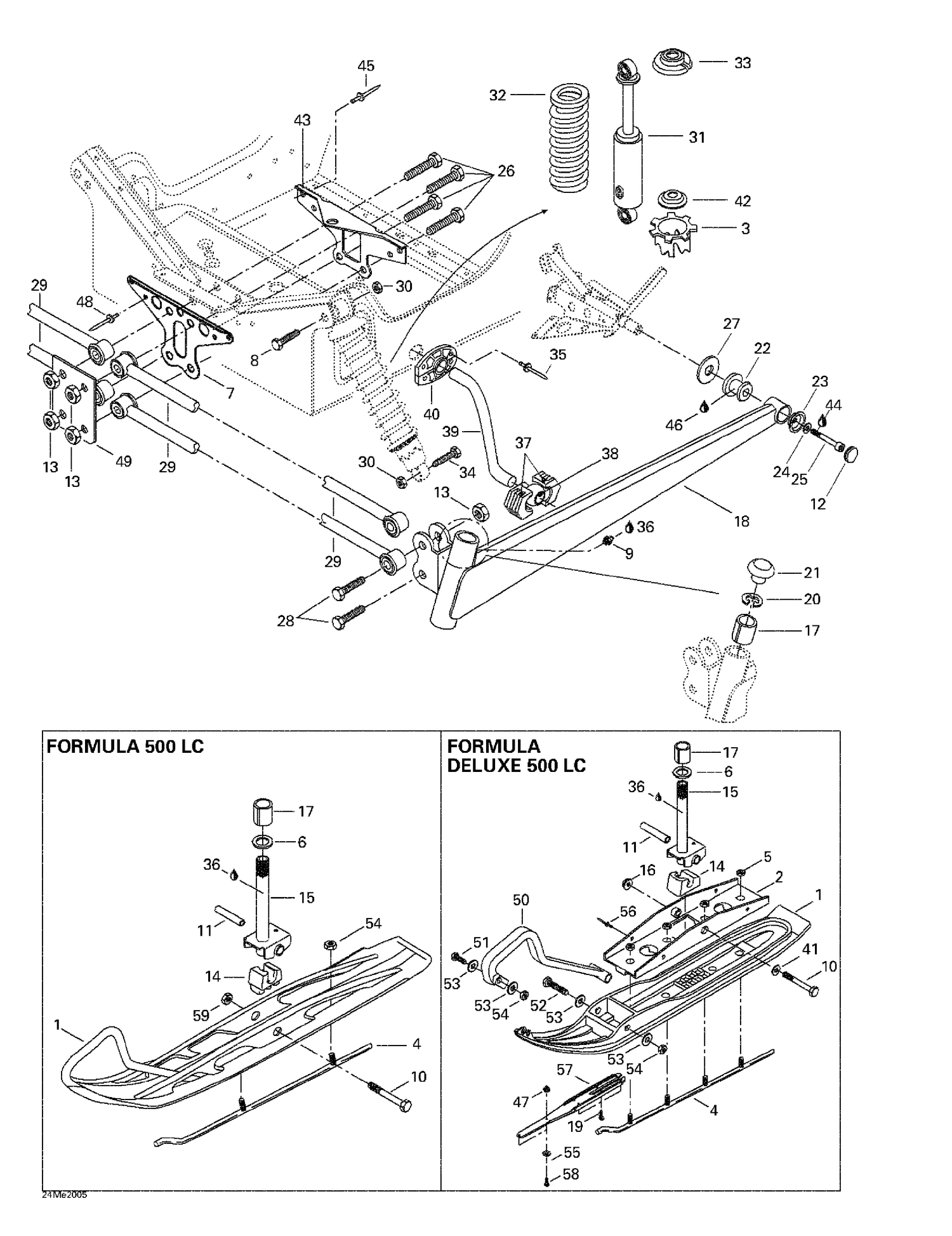

07- Front Suspension And Ski
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 505073625 | Adjustment Cam This part replaces 503183700. |
| 6 | 505070004 | WASHER - Call your local BRP dealership |
| 7 | 517254800 | Front Link Plate |
| 8 | 207006044 | HEX. SCREW M10 X 60 - Call your local BRP dealership |
| 9 | 408200700 | Grease Fitting |
| 10 | 250000001 | HEX. SCREW M10 X 110 - Call your local BRP dealership |
| 13 | 232521414 | NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership |
| 17 | 505070003 | Cushion |
| 18 | 505070380 | RH Swing Arm (Silver) |
| 20 | 371910400 | CIRCLIP - Call your local BRP dealership |
| 21 | 572091300 | Cap |
| 22 | 570062200 | DAMPER - Call your local BRP dealership |
| 23 | 705007171 | Cup This part replaces 506115800. |
| 24 | 234181401 | Lock Washer 8 mm |
| 25 | 205082544 | Socket Head Screw M8 X 25 |
| 26 | 230020044 | Hex. Screw M12 x 100 |
| 27 | 503146700 | WASHER - Call your local BRP dealership |
| 28 | 207025044 | Hex. Screw M12 x 50 |
| 29 | 580649700 | Arm Ass'y (42") |
| 30 | 233601416 | Elastic Locking Nut M10 X 1.5 |
| 31 | 505070012 | Shock |
| 33 | 706200881 | Spring Stopper This part replaces 503140600. |
| 34 | 207005544 | Hex. Screw M10 X 55 |
| 35 | 390402300 | Pop Rivet 3/16" |
| 36 | 219700417 | SYNTHETIC GREASE, 400 G - Call your local BRP dealership |
| 37 | 572069800 | Block Sliding |
| 38 | 505070068 | Ball Joint |
| 39 | 505070069 | Stabilisator |
| 40 | 505070139 | BUSHING - Call your local BRP dealership |
| 42 | 503187500 | Spring Guide |
| 43 | 517254900 | Rear Link Plate |
| 44 | 293800060 | Loctite 243, 10 ml |
| 45 | 390909200 | Avex Rivet |
| 46 | 293550030 | Grease, Super Lube This part replaces 293550014. |
| 48 | 390404900 | Rivet pop 1/4" |
| 49 | 518306700 | Support |
| 54 | 232581414 | Hex. Elastic Stop Nut M8 |
| 505070381 | LH | Swing Arm (Silver) 505070381 |
