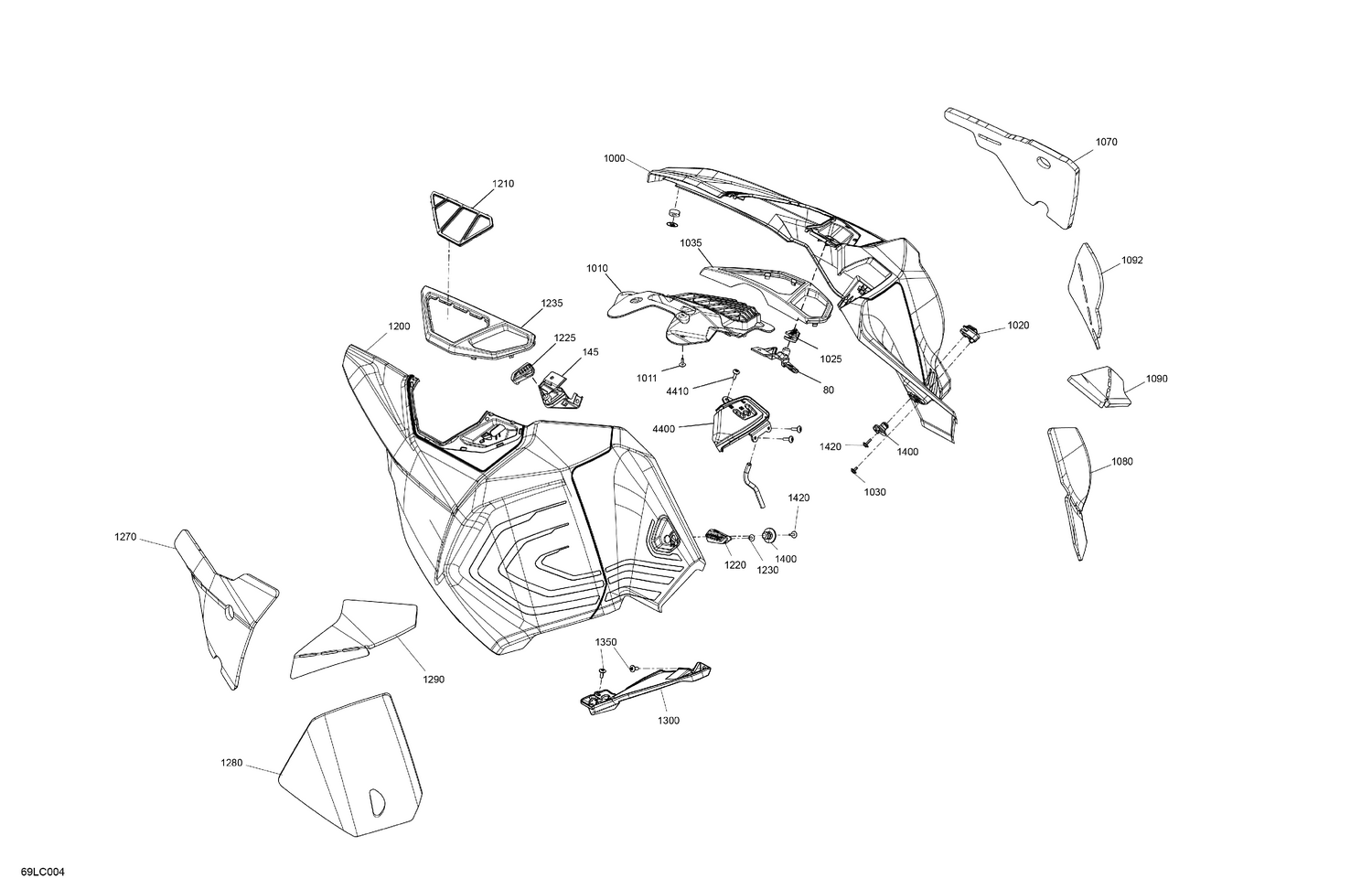

| Ref | Part Number | Description |
|---|
| 1 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 2 |
0328836 |
WASHER, Primer pump |
| 9 |
0398868 |
END CAP This part replaces 0328802. |
| 12 |
HOSE, |
Primer to tee 25mm (1") |
| 13 |
HOSE, |
Carb. to primer 190mm (7-1/2") |
| 14 |
0329054 |
SCREW |
| 15 |
0395781 |
KNOB & DETENT ASSY |
| 16 |
0330992 |
JOINT TORIQUE, bouton |
| 17 |
0329670 |
NUT |
| 18 |
0325569 |
T, amorçage |
| 19 |
HOSE, |
Tee to carb. 203mm (8") |
| 20 |
HOSE, |
Manifold to tee 114mm (4-1/2") |
| 80 |
517306450 |
RH Knob Part |
| 145 |
517306451 |
LH Knob Part |
| 1000 |
517306823 |
RH Side Panel 20" With Gearbox |
| 1010 |
517306706 |
RH Grille |
| 1011 |
250000725 |
Screw M4 X 16 |
| 1020 |
517305773 |
RH Rear Latch |
| 1025 |
517305773 |
RH Rear Latch |
| 1030 |
250000805 |
Plastite Screw M4 X 10 |
| 1035 |
517306888 |
Black, RH Trim 20",24"" |
| 1070 |
517308470 |
RH Central Side Panel Foam |
| 1080 |
517308472 |
RH Rear Side Panel Foam |
| 1090 |
517308474 |
RH Upper Side Panel Foam |
| 1092 |
517308475 |
RH Rear Side Panel Foam |
| 1200 |
517306703 |
LH Side Panel 20" |
| 1210 |
517306832 |
LH Air Intake Grip |
| 1220 |
517305774 |
LH Rear Latch |
| 1225 |
517305774 |
LH Rear Latch |
| 1230 |
250000805 |
Plastite Screw M4 X 10 |
| 1235 |
517306889 |
Black, LH Trim 20",24" |
| 1270 |
517306577 |
LH Central Side Panel Foam This part replaces 517308476. |
| 1280 |
517306578 |
LH Rear Side Panel Foam This part replaces 517308477. |
| 1290 |
517306579 |
LH Upper Side Panel Foam This part replaces 517308478. |
| 1300 |
517307359 |
LH Snow Deflector |
| 1350 |
250000721 |
Torx Truss Screw M6 X 16 |
| 1400 |
517305985 |
Rear Stud |
| 1420 |
250000725 |
Screw M4 X 16 |
| 4400 |
517306818 |
Shift Lever Grille |
| 0398357 |
5007336 |
Kit Ay This part replaces 0398357. |
