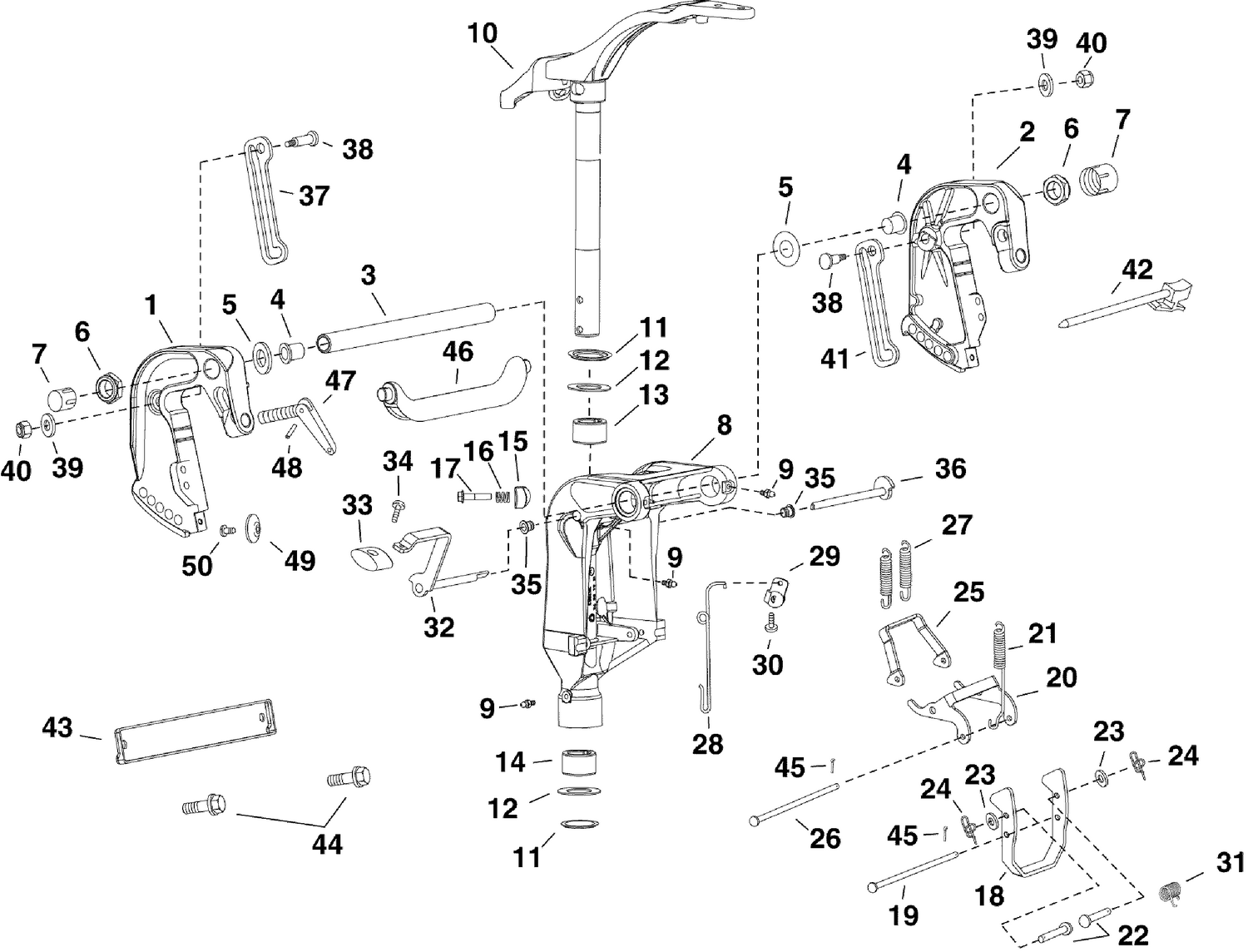

| Ref | Part Number | Description |
|---|
| 1 |
0353548 |
STERN BRACKET, Starboard |
| 2 |
0353547 |
STERN BRACKET, Port |
| 3 |
0351896 |
TILT TUBE |
| 4 |
0319787 |
BUSHING |
| 5 |
0319699 |
THRUST WASHER, Stern bracket |
| 6 |
0335554 |
CROU, tube de relevage |
| 7 |
0317894 |
CACHE, tube de relevage |
| 8 |
5007080 |
SWIVEL BRACKET |
| 10 |
5009612 |
STEERING ARM & SHAFT ASSEMBLY This part replaces 5007182. |
| 11 |
0318295 |
THRUST WASHER, Upper |
| 13 |
0342914 |
BUSHING |
| 14 |
0339489 |
BUSHING |
| 15 |
0342397 |
BLOC, friction de direction |
| 18 |
0338657 |
LINK, Shallow water drive |
| 19 |
0322945 |
PIN, Link shallow water drive |
| 20 |
0322949 |
LINK, Reverse lock |
| 21 |
0319697 |
SPRING REVERSE LOCK |
| 22 |
0322947 |
HEAD ASSY. |
| 23 |
0303887 |
WASHEER, Pin to swivel bracket |
| 25 |
0322950 |
LEVER, Reverse lock |
| 26 |
0326943 |
PIN, Link to lock lever |
| 27 |
0315078 |
SPRING, Reverse lock |
| 28 |
0319696 |
ROD, Reverse lock |
| 29 |
0319695 |
BELL CRANK |
| 30 |
0319108 |
SCREW BELCRANK |
| 31 |
0322946 |
SPRING, Shallow water drive |
| 32 |
0436897 |
LEVER & SHAFT Assembly, Tilt lock |
| 33 |
0328048 |
KNOB, Tilt & reverse lock lever |
| 34 |
0319227 |
SCREW, Knob |
| 35 |
0342525 |
DOUILLE, arbre de verrouillage de relevage vers support pivotant |
| 36 |
0388661 |
CAM & SHIFT ASSY., Tilt lock |
| 38 |
0342507 |
PIN, Tilt lock to stern brackets |
| 39 |
0303884 |
RONDELLE |
| 42 |
0436387 |
TILT PIN |
| 43 |
0357240 |
TIE BAR, Stern bracket This part replaces 0351247. |
| 46 |
0339992 |
CARRYING HANDLE |
| 47 |
0391421 |
CLAMP SCREW & HANDLE |
| 47 |
0433675 |
CLAMP SCR. & HAND. ASSY. |
