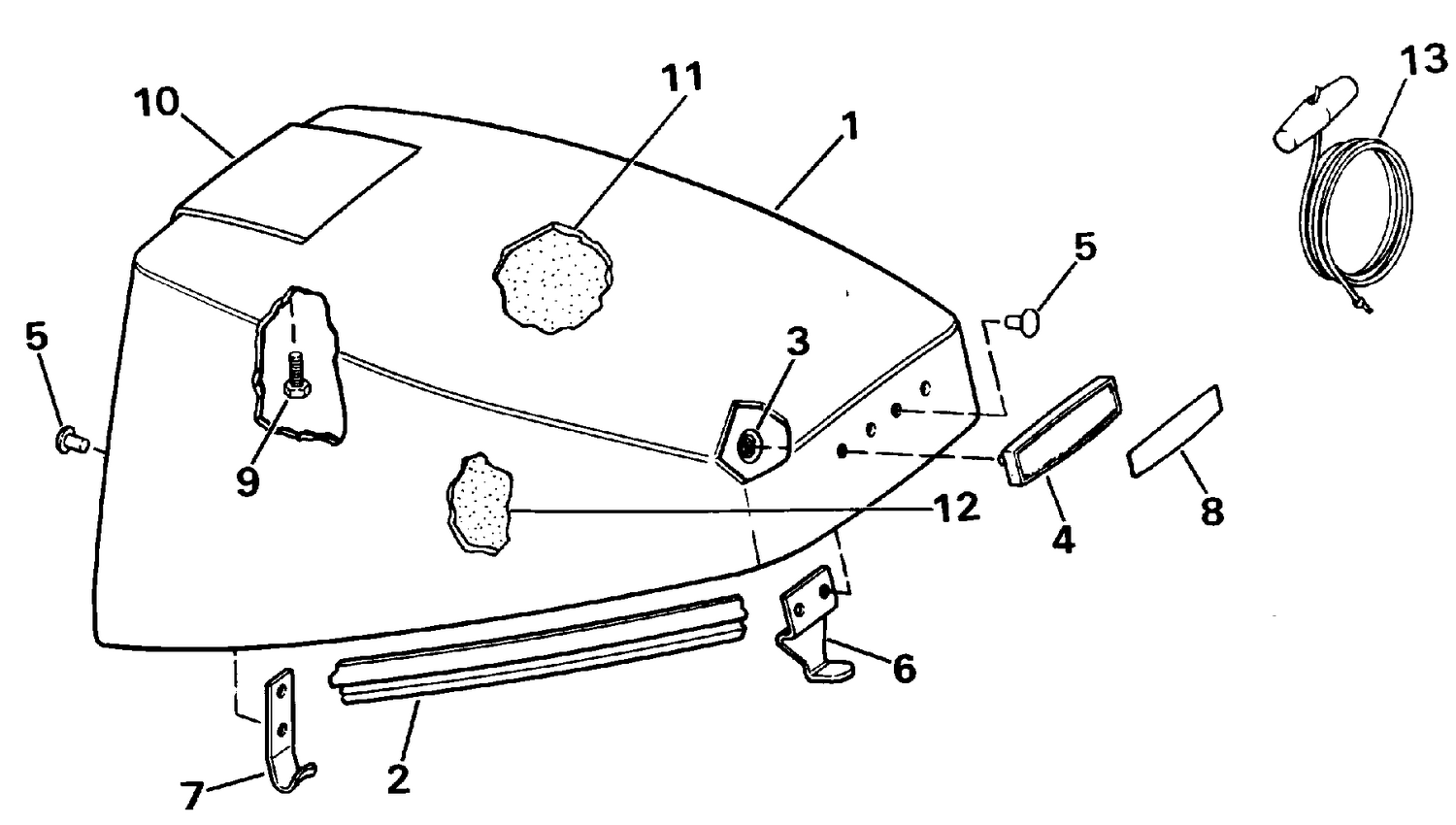

ENGINE COVER - JOHNSON
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0433730 | ENGINE COVER ASSY. |
| 1 | 0433731 | ENGINE COVER ASSY. |
| 1 | 0434553 | ENGINE COVER ASSY. |
| 2 | 0331867 | SEAL Engine cover |
| 4 | 0334864 | FRAME, Front |
| 4 | 0335809 | APPLIQUE, Front |
| 5 | 0318836 | RIVET |
| 6 | 0396886 | HOOK, Front (Includes No. 5) |
| 7 | 0391124 | HOOK, Rear |
| 8 | 0335055 | PLATE, Applique, front |
| 8 | 0335806 | PLATE, Applique, front |
| 8 | 0335808 | PLATE, Applique, front |
| 10 | 0331134 | TILT HANDLE |
| 11 | 0335597 | SOUND BLANKET, Top |
| 12 | 0335598 | SOUND BLANKET, Side |
| 13 | 0433824 | STARTER ROPE |
| 0434298 | 0434298 | OWNER'S MANUAL, Jo. |
| 0434299 | 0434299 | OWNER'S MANUAL, Jo. |
| 0434306 | 0434306 | OWNER'S MANUAL, Jo. |
| 0434316 | 0434316 | OWNER'S MANUAL, Jo. |
| 0434735 | 0434735 | DECAL SET |
| 0434736 | 0434736 | DECAL SET |
| 0434739 | 0434739 | DECAL SET |
