Parts Catalog

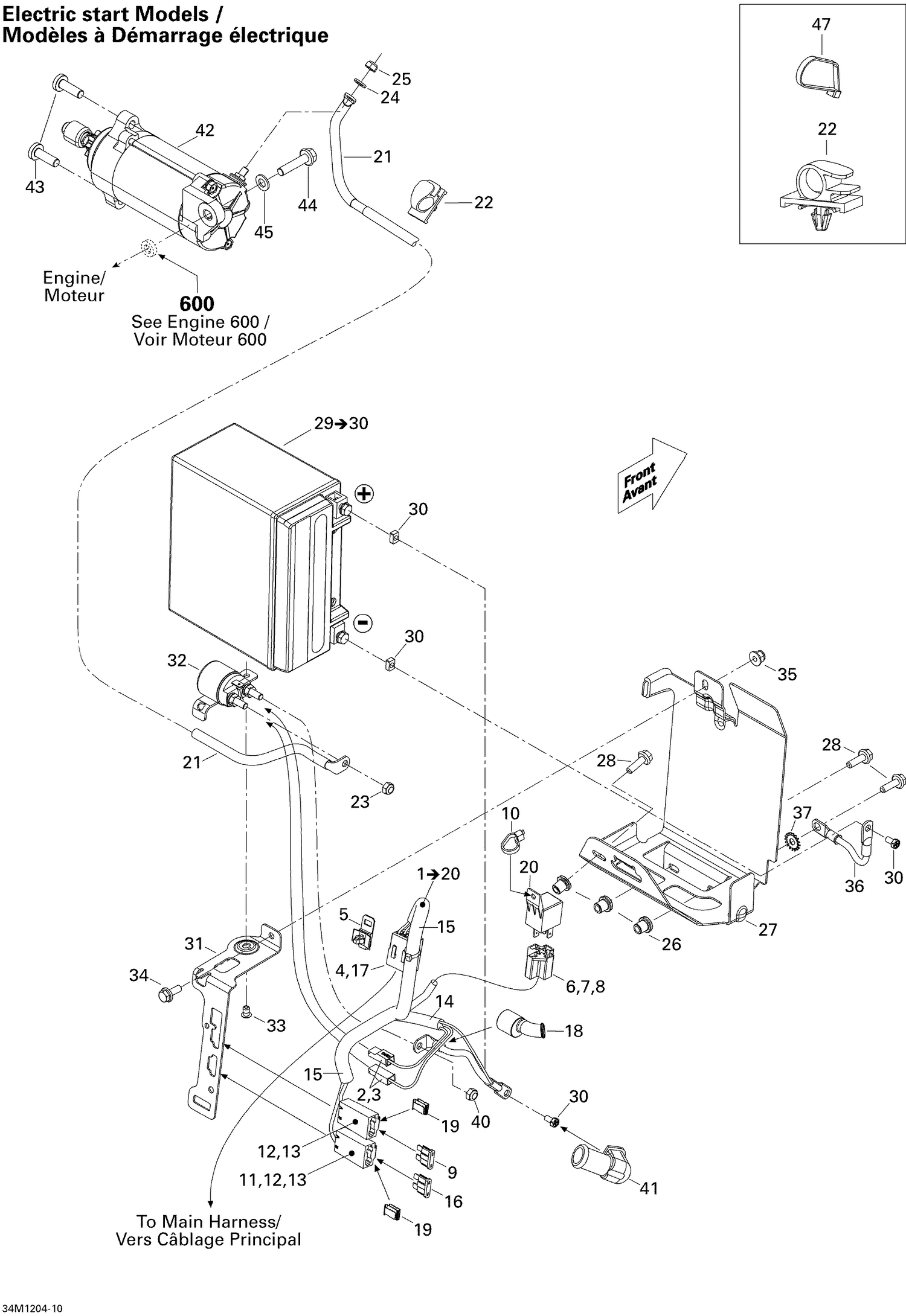

10- Battery And Starter

Parts (45)

Ref	Part Number	Description
2	409010100	Female Terminal
3	409010400	Female Terminal Housing, 1 Circuit
4	515175232	Male Terminal
5	515175283	Housing Support
6	409209900	Female Housing, 5 Circuits
7	561503100	FEMALE TERMINAL - Call your local BRP dealership
8	561503100	FEMALE TERMINAL - Call your local BRP dealership
9	410917200	Fuse, 30 Amperes
10	293750002	Tie Wrap 142 mm
11	409011600	Female Terminal
12	409004200	Female Terminal
13	409004000	Fuse Holder
14	219704425	Tubing 6 Mm 3000Mm Long
15	219704399	Was 409901700 Tubing (9 mm)
16	278000344	Fuse, 5 Amperes
17	515175817	Male Terminal Housing, 8 Circuits
18	515175919	Protector Cap
19	710000992	Clip
20	710010053	Relay This part replaces 515177041.
21	515177067	BATTERY WIRE - Call your local BRP dealership
22	515177066	Clip
23	232561414	Elastic Stop Nut M6
24	234061410	Flat Washer 6 mm
25	232561414	Elastic Stop Nut M6
26	293450275	Insert This part replaces 415107300.
27	515176886	BATTERY SUPPORT ASS'Y - Call your local BRP dealership
28	207662044	Hex. Flange Screw M6 X 20
30	250000282	Battery Bolt Kit This part replaces 295500849.
31	515177008	BATTERY STRIP - Call your local BRP dealership
32	515176501	Starter Relay
33	390402200	Pop Rivet 3/16"
34	207661644	Hex. Flange Screw M6 X 16
35	233261414	Hex. Flange Elastic Nut M6 x 1.0
36	515176358	Ground Wire
37	250200041	Lock Washer Serrated M6
40	232561414	Elastic Stop Nut M6
41	710000495	Protector Cap
42	515178473	Starter This part replaces 515176858.
43	250000752	Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248.
44	207583544	Hex Flange Screw M8 X 35, Scotch Grip
45	250200008	Flat Washer With Teflon 8 mm
47	293750001	Tie Wrap 94 mm
47	293750002	Tie Wrap 142 mm
47	293750009	Tie-Rap 173 mm
47	414115200	Tie-Rap 180 mm
