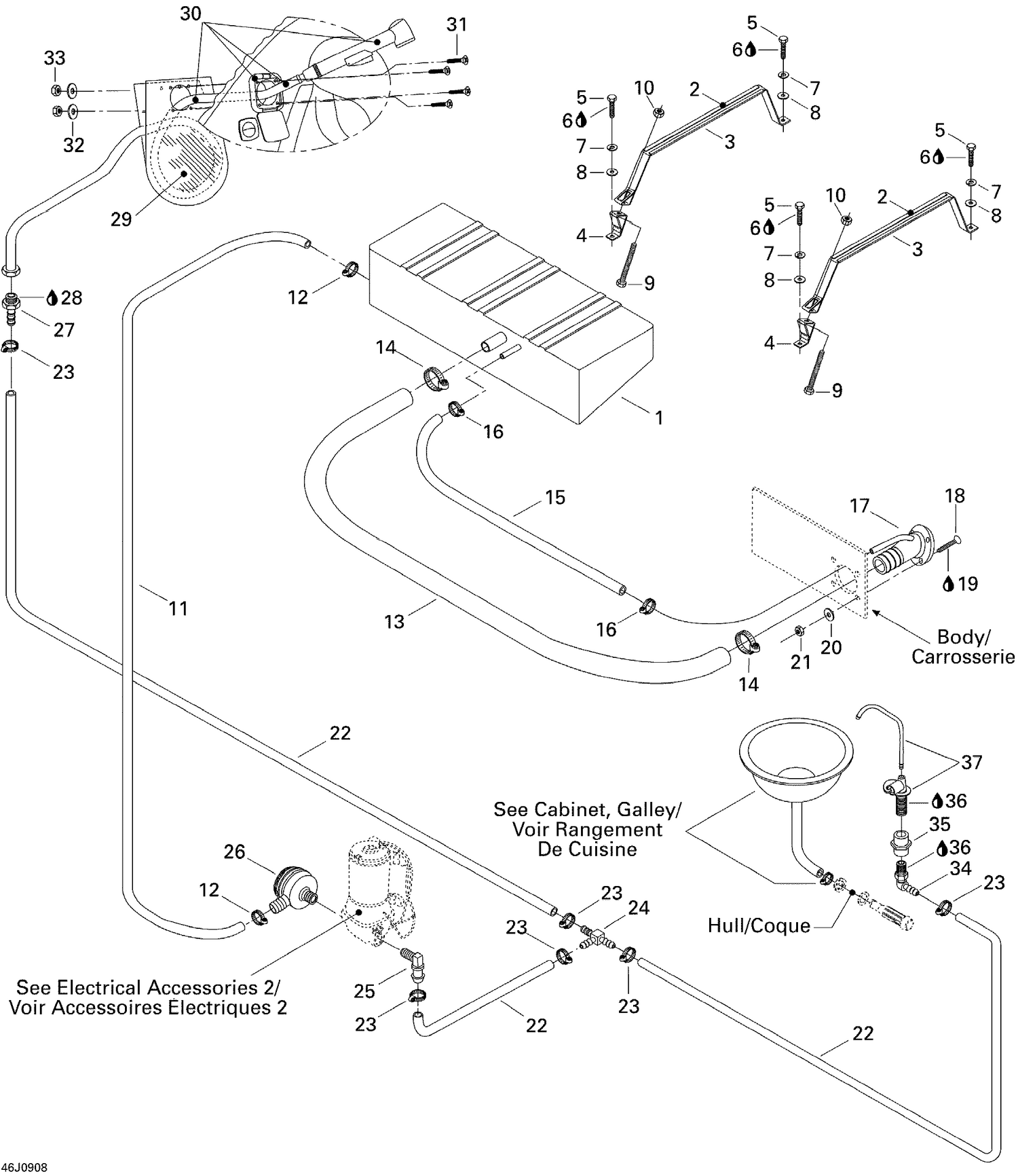

| Ref | Part Number | Description |
|---|
| 1 |
204940002 |
WATER TANK - Call your local BRP dealership |
| 2 |
293830044 |
PROTECTOR PAD - Call your local BRP dealership |
| 3 |
204940003 |
WATER TANK STRAP - Call your local BRP dealership |
| 4 |
275500252 |
TANK BRACKET - Call your local BRP dealership |
| 5 |
207183060 |
Hex. Screw M8 X 30 |
| 6 |
293800060 |
Loctite 243, 10 ml |
| 7 |
234181601 |
Lock Washer 8 mm, Stainless |
| 8 |
234082600 |
Flat Washer 8 mm, Stainless |
| 9 |
207185560 |
HEX. SCREW M8 X 55 - Call your local BRP dealership |
| 10 |
232581600 |
Hex. Elastic Nut M8 |
| 11 |
204940010 |
FRESH WATER HOSE, METER - Call your local BRP dealership |
| 12 |
293650069 |
NORMA CLAMP - Call your local BRP dealership |
| 13 |
204940005 |
PVC Hose, Meter |
| 14 |
293650074 |
Norma Clamp |
| 15 |
204940015 |
PVC Hose 16 Mm , Meter |
| 16 |
293650172 |
Tridon Gear Clamp |
| 17 |
204940041 |
VENT NECK-FILLER - Call your local BRP dealership |
| 18 |
208643060 |
Phillips Screw M4 X 30 |
| 19 |
293800060 |
Loctite 243, 10 ml |
| 20 |
234042600 |
Flat Washer 4 mm, Stainless |
| 21 |
232541600 |
Elastic Stop Nut M4 |
| 22 |
204940008 |
FRESH WATER HOSE, METER - Call your local BRP dealership |
| 23 |
293650172 |
Tridon Gear Clamp |
| 24 |
204940011 |
T-Fitting |
| 25 |
204940009 |
ELBOW FITTING 90 - Call your local BRP dealership |
| 26 |
204940007 |
FRESH WATER FILTER - Call your local BRP dealership |
| 27 |
204940019 |
MALE FITTING 1/2? - Call your local BRP dealership |
| 28 |
219704455 |
Was 293800018 Loctite 592, 50 ml |
| 29 |
204940029 |
Bag, Hose/Shower |
| 30 |
204940018 |
FRESH WATER SHOWER - Call your local BRP dealership |
| 31 |
208443060 |
Phillips Screw M4 X 30 |
| 32 |
234042600 |
Flat Washer 4 mm, Stainless |
| 33 |
232541600 |
Elastic Stop Nut M4 |
| 34 |
204940031 |
NYLON FITTING 1/2, 90 - Call your local BRP dealership |
| 35 |
204940030 |
NYLON FITTING 1/2? - Call your local BRP dealership |
| 36 |
296000309 |
Silicone Sealant 51388, 300 ml |
