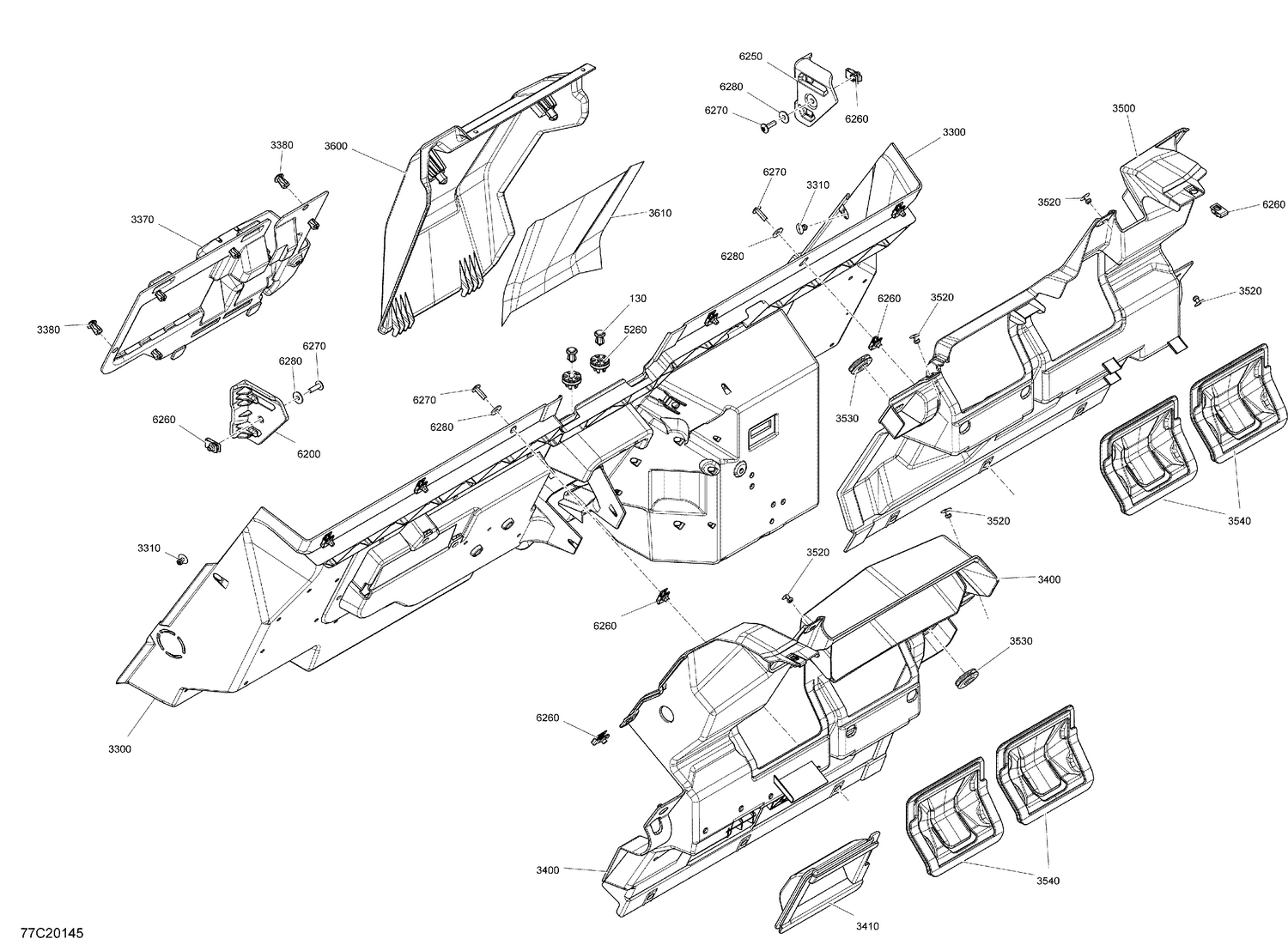

09- Cab Interior - Back Wall Section
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 130 | 293150230 | Tuflok Plastic Rivet |
| 3300 | 707900929 | Rear Lower Seperation Panel This part replaces 707900769. |
| 3310 | 293150104 | Pop Rivet 3/16" |
| 3370 | 707900703 | Cover Fuse Box |
| 3380 | 293150230 | Tuflok Plastic Rivet |
| 3400 | 703501073 | LH Upper Bulkhead Kit This part replaces 707900632. |
| 3410 | 707900652 | Bulkhead Cover |
| 3500 | 707900935 | RH Upper Bulkhead Kit This part replaces 707900441. |
| 3520 | 293150104 | Pop Rivet 3/16" |
| 3530 | 705010718 | Grommet |
| 3540 | 707900486 | Bulkhead Cover |
| 3600 | 707900442 | Central Upper Rear Bulkhead |
| 3610 | 707900773 | Aluminum Foil |
| 5260 | 707900133 | Insert |
| 6200 | 707900615 | LH Shoulder Pad |
| 6250 | 707900616 | RH Shoulder Pad |
| 6260 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250000957. |
| 6270 | 250000722 | Torx Screw M6 X 20 |
