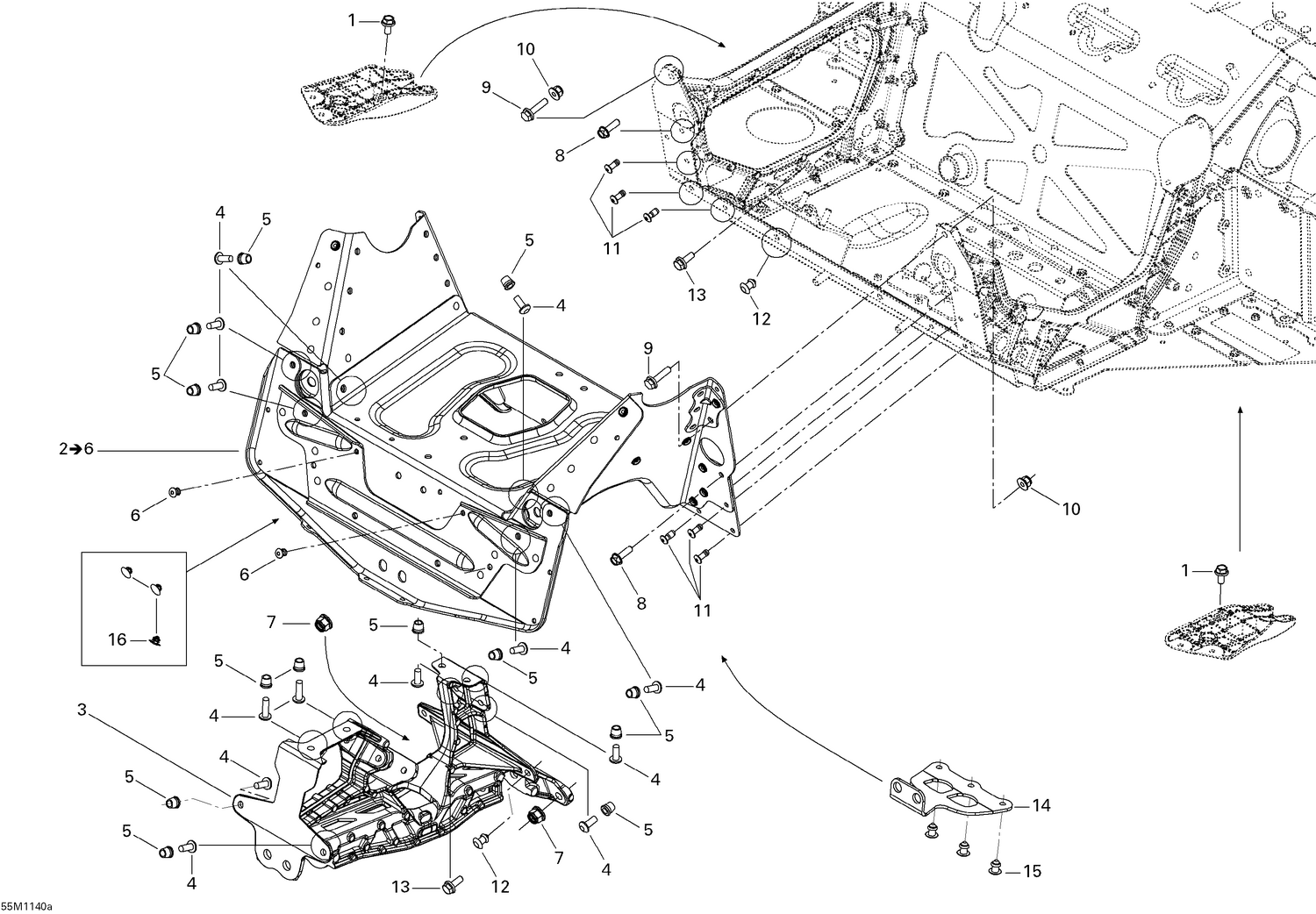

| Ref | Part Number | Description |
|---|
| 1 |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 3 |
518327487 |
Front Suspension Support This part replaces 518325925. |
| 4 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 5 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 6 |
293150144 |
Stavex Rivet |
| 7 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 8 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 9 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 10 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 11 |
293150191 |
Monobolt Rivet, 4.8 mm |
| 12 |
293150182 |
Monobolt Rivet 6.4 |
| 13 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 14 |
518326466 |
MODULE REINFORCEMENT - Call your local BRP dealership |
| 15 |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
