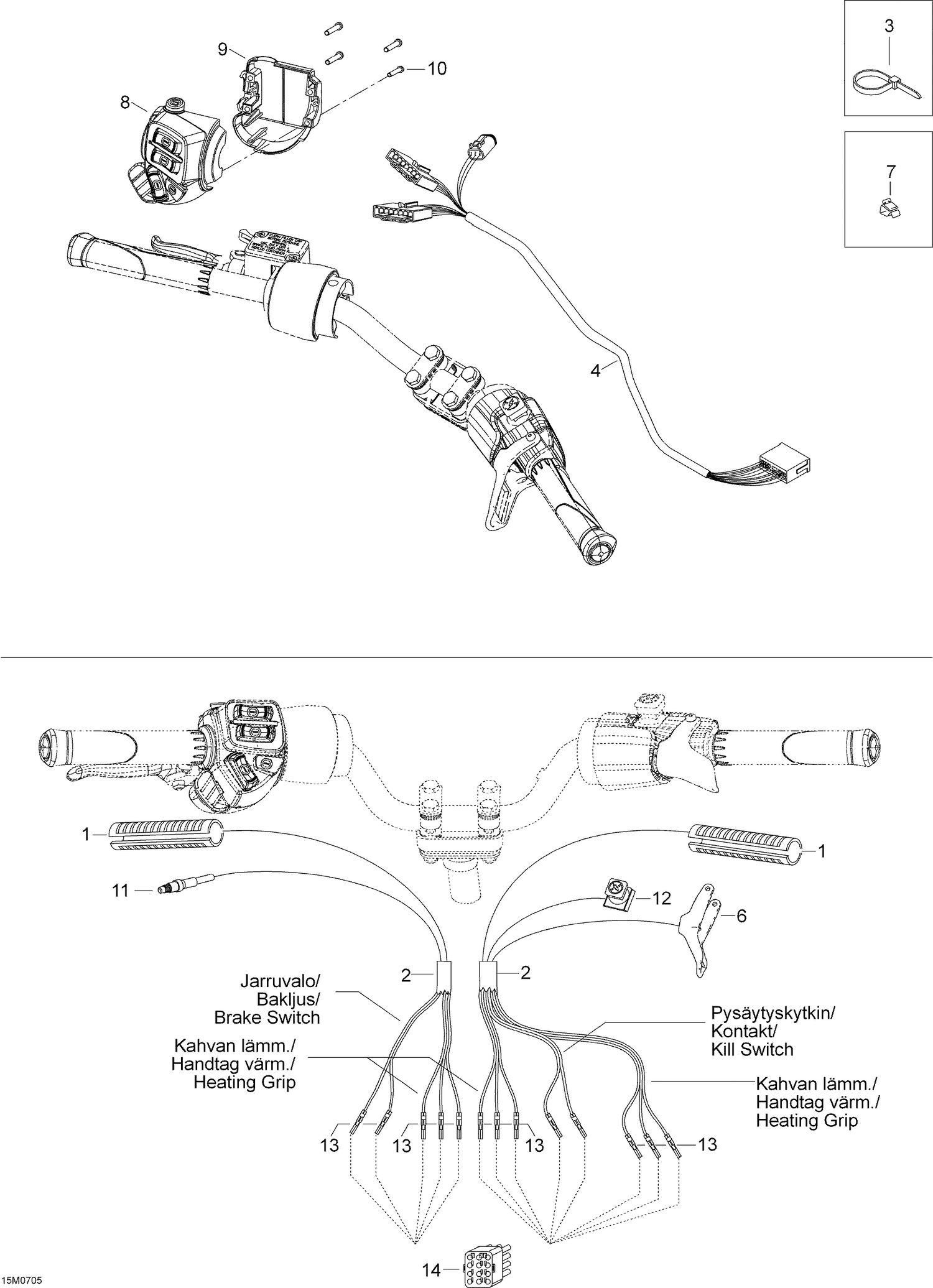

10- Steering Wiring Harness
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 515176139 | HEATER ELEMENT - Call your local BRP dealership This part replaces 515175657. |
| 2 | M39023 | Housing |
| 3 | M27010 | TIE RAP 98MM - Call your local BRP dealership |
| 3 | M27100 | Tie Rap 290 Mm |
| 4 | 605353265 | Steering Harness |
| 6 | 512059481 | Throttle Handle |
| 7 | 414227300 | Clip |
| 8 | 515176015 | LH SWITCH HOUSING - Call your local BRP dealership |
| 8 | 515176088 | Start/RER Button |
| 9 | 515175926 | Switch Housing Plate |
| 10 | M40903 | Screw 3.5X25 |
| 11 | 507032366 | Microswitch |
| 12 | 515175410 | Kill Switch |
| 13 | 605642628 | CONNECTOR - Call your local BRP dealership This part replaces M42603. |
