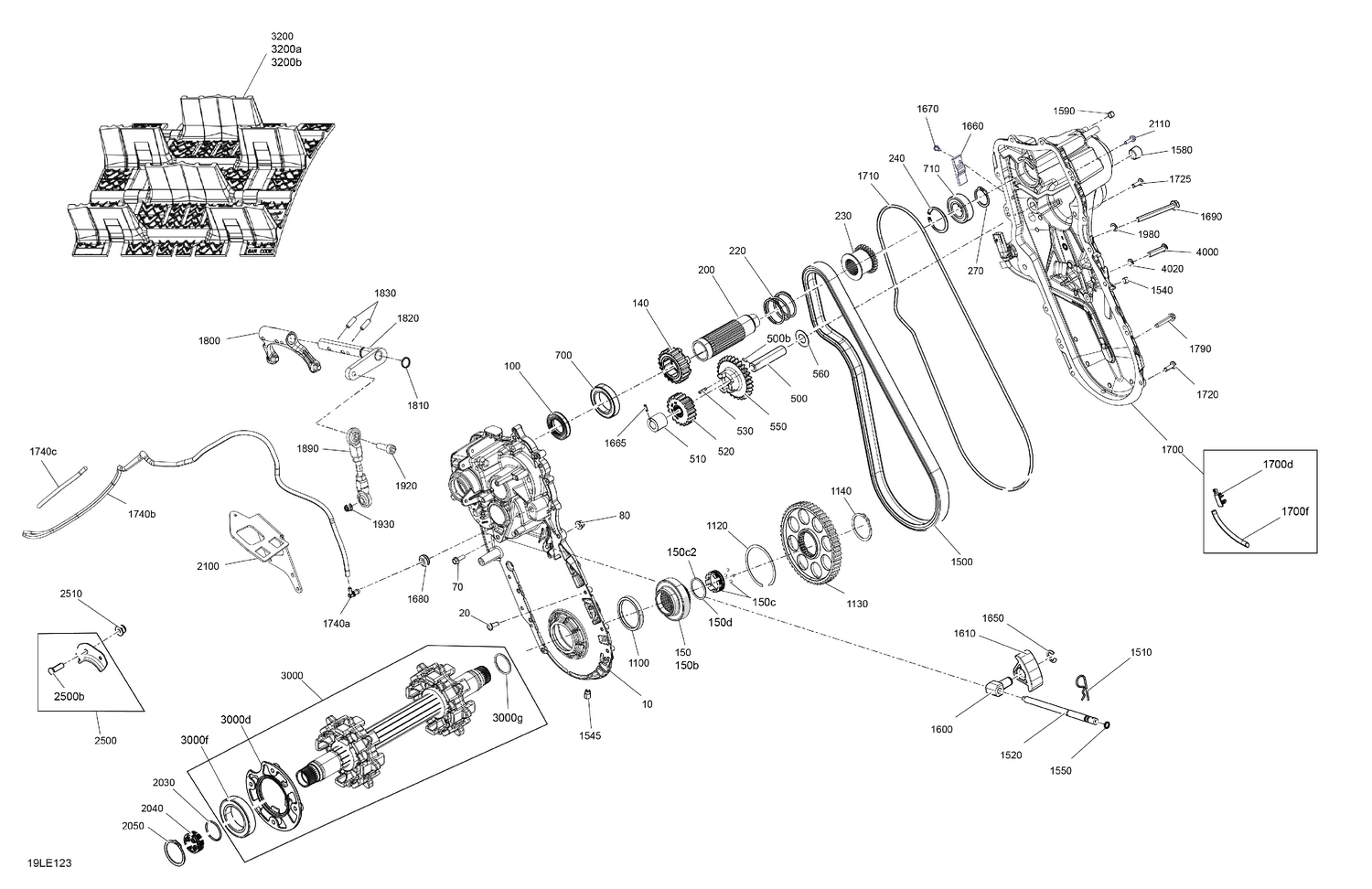

04- Drive - System
Parts (72)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 504154828 | Gearbox Case Ass'y |
| 20 | 250001213 | Socket Head Screw M6 X 18 |
| 70 | 250001016 | Hex Flanged Screw M8 X 25 S.Grip |
| 80 | 233261434 | Flanged Elastic Nut M6 |
| 100 | 293200168 | Oil Seal |
| 140 | 504154082 | Sprocket 27 Teeth Ass'y |
| 150b | 293350142 | Ball Bearing |
| 150c2 | 504154043 | Cap |
| 150d | 293300291 | O-Ring Seal |
| 200 | 504154813 | Machined Gearbox Shaft IN |
| 220 | 504153690 | Spring Return |
| 230 | 504154811 | Machined Sliding Gear 27 Teeth |
| 240 | 293370055 | Circlip |
| 270 | 705502897 | Circlip |
| 500b | 250400010 | Rolled Pin M3 X 10 |
| 510 | 504154816 | Ring |
| 520 | 504154086 | Sprocket 19 Teeth Ass'y |
| 530 | 570048600 | Alignement Rod |
| 550 | 504154087 | Gear Straight 29 Teeth Ass'y |
| 560 | 504154817 | Ring |
| 700 | 293350053 | Ball Bearing |
| 710 | 293350153 | Ball Bearing |
| 1100 | 293200159 | Oil Seal |
| 1120 | 504152582 | Circlip |
| 1130 | 504153998 | Sprocket 53 Teeth |
| 1140 | 504152572 | Circlip |
| 1500 | 504153397 | Drive Chain, 116 Links |
| 1510 | 414575600 | Hair Pin |
| 1520 | 504153627 | Adjustment Screw |
| 1540 | 250500013 | Hex. Countersunk Drain Plug |
| 1545 | 504153704 | Magnetic Plug |
| 1550 | 293300202 | O-Ring |
| 1580 | 267001113 | Nylon Plug |
| 1590 | 250500013 | Hex. Countersunk Drain Plug |
| 1600 | 504154577 | Chain Tensioner |
| 1610 | 504153312 | Chain Slider |
| 1650 | 293370105 | Circlip |
| 1660 | 504154834 | Slide Chain |
| 1665 | 250400010 | Rolled Pin M3 X 10 |
| 1670 | 250001158 | Torx Screw Button Head M6X10 |
| 1680 | 414036300 | Grommet |
| 1690 | 207588544 | Hex. Flange Screw M8 X 85, Scotch Grip |
| 1700d | 515179692 | Clip Connector |
| 1700f | 415130141 | Sleeve |
| 1710 | 293300288 | O-Ring Seal |
| 1720 | 250001153 | Flanged Hex. Screw M6X20 |
| 1725 | 250001153 | Flanged Hex. Screw M6X20 |
| 1740a | 414580700 | Male Connector |
| 1740b | 219704410 | Hose |
| 1740c | 515179201 | Heat Shield |
| 1790 | 250001015 | Flanged Hex. Screw M6 X 35 |
| 1800 | 504154097 | Fork Ass'y |
| 1810 | 293300202 | O-Ring |
| 1820 | 504154099 | Reverse Axle |
| 1830 | 250400045 | Spring Pin M5 X 16 |
| 1890 | 504153658 | Ball Joint |
| 1920 | 205562044 | Socket Head Screw M6 X 20, Scotch Grip |
| 1930 | 233261434 | Flanged Elastic Nut M6 |
| 1980 | 504082900 | Washer |
| 2030 | 293300201 | O-Ring |
| 2040 | 504154043 | Cap |
| 2050 | 504152572 | Circlip |
| 2100 | 504154941 | Support |
| 2110 | 207562034 | Hex. Flange Screw M6 X 20, Scotch Grip |
| 2500b | 250300028 | Clinch Stud, M8 X 25 |
| 2510 | 233281414 | Hex. Flange Elastic Nut M8 |
| 3000d | 504154417 | Retaining Ring |
| 3000f | 293350059 | Ball Bearing |
| 3000g | 293300291 | O-Ring Seal |
| 3200a | 415130661 | Clip |
| 3200b | 504152651 | Cleat |
| 4000 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 |
