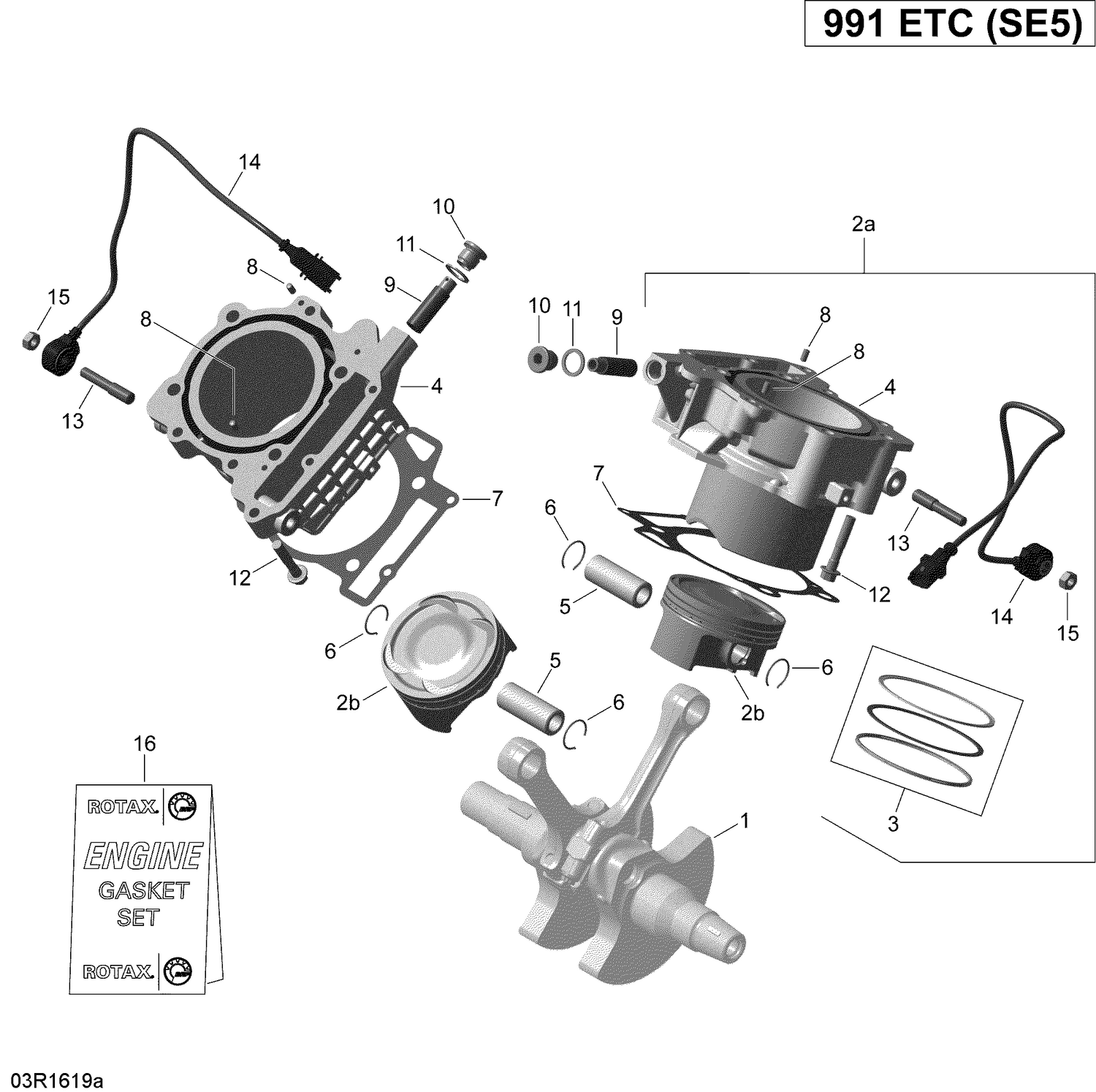

01- Cylinder And Piston
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420890567 | CRANKSHAFT - Call your local BRP dealership |
| 3 | 420295858 | Piston Ring Set |
| 4 | Not | Available As Spare Part - Cylinder |
| 5 | 420216222 | Piston Pin |
| 6 | 420245436 | Piston Circlip |
| 7 | 420650390 | Cylinder Gasket |
| 8 | 420929650 | Drive Pin 5 X 10 |
| 9 | 415129408 | Chain Tensioner |
| 10 | 420640457 | Plug Screw |
| 11 | 420430622 | O-Ring |
| 12 | 420940637 | HEX. FLANGED SCREW M8 X 45 - Call your local BRP dealership |
| 13 | 420441444 | STUD M8/M10 - Call your local BRP dealership |
| 14 | 420664031 | Noise Sensor |
| 15 | 232081414 | Hex. Nut M8 |
| 16 | 420685480 | Gasket Set, Engine |
