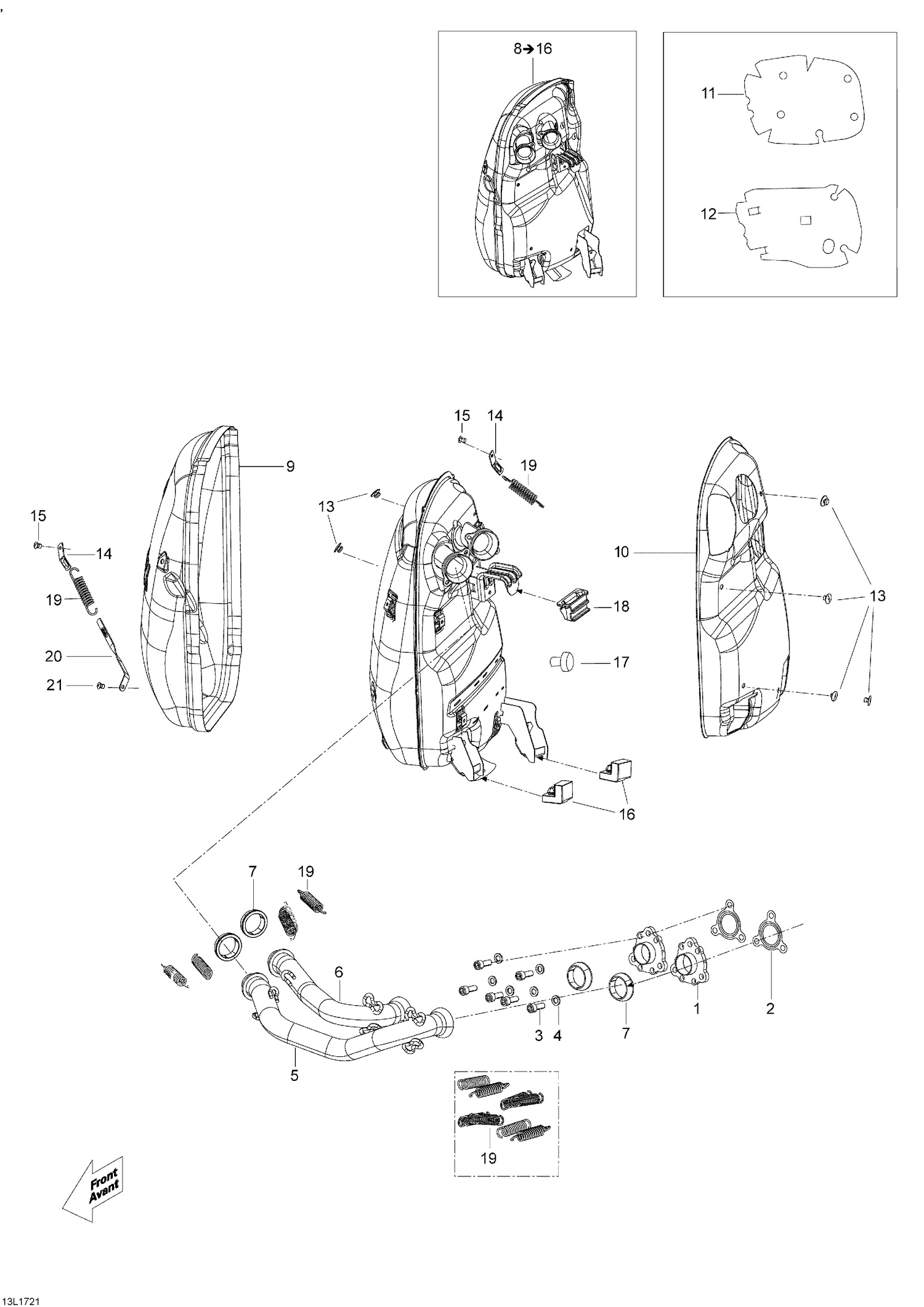

01- Exhaust System
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 514054673 | Manifold |
| 2 | 514055112 | Gasket |
| 3 | 250000414 | Socket Head Screw M8 x 22 |
| 4 | 250200111 | Washer |
| 5 | 514054733 | Tube (PTO) |
| 6 | 514054734 | WELDED TUBE - Call your local BRP dealership |
| 7 | 514054807 | Exhaust Gasket |
| 9 | 514055325 | RH Heat Shield |
| 10 | 514054645 | LH Heat Shield |
| 11 | 514054769 | Insulating Wool |
| 12 | 514054770 | Insulating Wool |
| 13 | 390910000 | Pop Rivet 3/16 |
| 14 | 514054522 | Spring Bracket |
| 15 | 390909200 | Avex Rivet |
| 16 | 514054529 | Stopper Lower |
| 17 | 570044700 | Rubber Bumper |
| 18 | 514054737 | Stopper |
| 19 | 415107100 | Spring |
| 20 | 514055317 | Spring Bracket |
