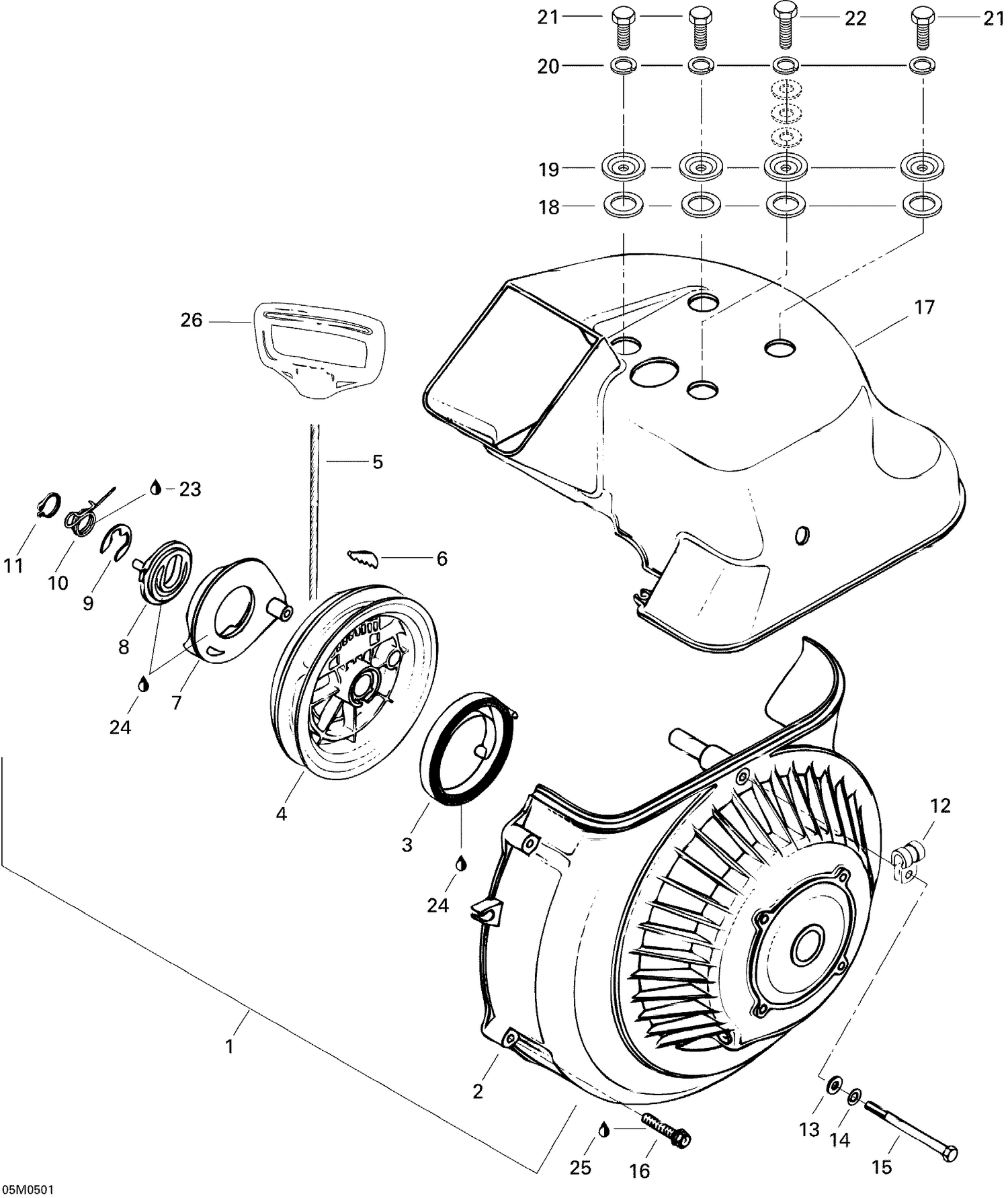

| Ref | Part Number | Description |
|---|
| 1 |
420889823 |
Demar.Rappel *Starter-Rewind This part replaces 420889825. |
| 2 |
420889823 |
Demar.Rappel *Starter-Rewind This part replaces 420810287. |
| 3 |
420939115 |
Rewind Spring |
| 4 |
420852283 |
Rope Sheave |
| 5 |
219704403 |
Was 412500100 Rope-Starter |
| 6 |
420852070 |
Key Clamp |
| 7 |
420852296 |
Pawl |
| 8 |
420852302 |
PAWL LOCK - Call your local BRP dealership |
| 9 |
420845300 |
CIRCLIP - Call your local BRP dealership |
| 10 |
420938986 |
Pawl Spring |
| 11 |
420945770 |
LOCK RING - Call your local BRP dealership |
| 12 |
420851240 |
GEAR CLAMP - Call your local BRP dealership |
| 13 |
224061121 |
Flat Washer |
| 14 |
420945751 |
WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 15 |
207067544 |
Hex. Screw M6 X 75 |
| 16 |
420640411 |
TAPPING SCREW M6 X 35 - Call your local BRP dealership |
| 17 |
420910020 |
CYLINDER COWL - Call your local BRP dealership |
| 18 |
420960860 |
RUBBER WASHER - Call your local BRP dealership |
| 19 |
420827140 |
COWL COVER - Call your local BRP dealership |
| 20 |
420945832 |
Washer-Lock Din.128 This part replaces 420945752. |
| 21 |
207181644 |
Hex. Screw M8 x 16 |
| 22 |
207182544 |
Hex. Screw M8 X 25 |
| 23 |
420297433 |
Molykote G-N, 50 g |
| 24 |
420899763 |
Molykote PG 54, 10 g |
| 25 |
293800060 |
Loctite 243, 10 ml |
