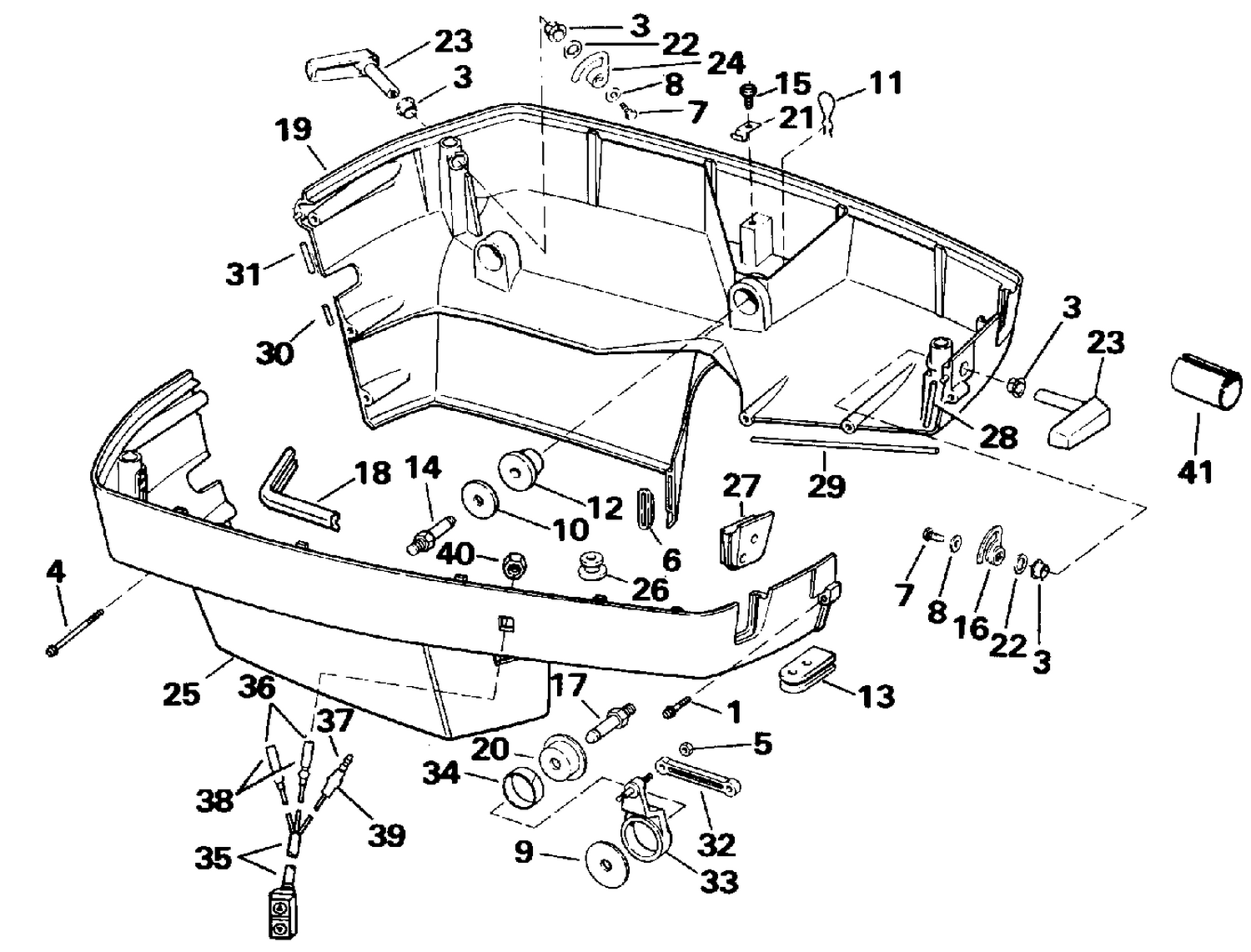

| Ref | Part Number | Description |
|---|
| 1 |
0328597 |
SCREW, Engine cover |
| 4 |
0329750 |
SCREW, Cover, rear |
| 9 |
0912138 |
WASHER, Transfer lever |
| 10 |
0349556 |
Washer This part replaces 0329749. |
| 11 |
0330288 |
SPRING PIN, Mount, front |
| 12 |
0349557 |
MOUNT This part replaces 0328584. |
| 13 |
0331896 |
Grommet, Plug - Trim lead hole |
| 14 |
0329743 |
STUD, Cover mount |
| 16 |
0332577 |
HOOK, Front and stbd. rear |
| 17 |
0912140 |
PIN, Lower mount, stbd. front |
| 18 |
0334471 |
SEAL, Cover |
| 19 |
0432281 |
COVER ASSY., Port |
| 20 |
0912130 |
CUP, Mounting |
| 23 |
0434758 |
LATCH HANDLE |
| 24 |
0332578 |
HOOK, Rear port |
| 25 |
0435778 |
COVER, Stbd. This part replaces 0432784. |
| 26 |
0333011 |
PLUG |
| 27 |
0331939 |
GROMMET, Remote cables |
| 28 |
SEAL, |
Engine cover front, upper, 3.75" |
| 29 |
SEAL, |
Front,9.45" |
| 30 |
SEAL, |
Rear lower,2.30" |
| 31 |
SEAL, |
Top rear, 3.75" |
| 32 |
0912263 |
LINK, Transfer level |
| 33 |
0984166 |
TRANSFER LEVER AND PIN |
| 34 |
0912139 |
BUSHING, Transfer level |
| 35 |
0585146 |
INTERRUPTEUR CORRECTION D'ASSIETTE/RELEVAGE This part replaces 0583803. |
