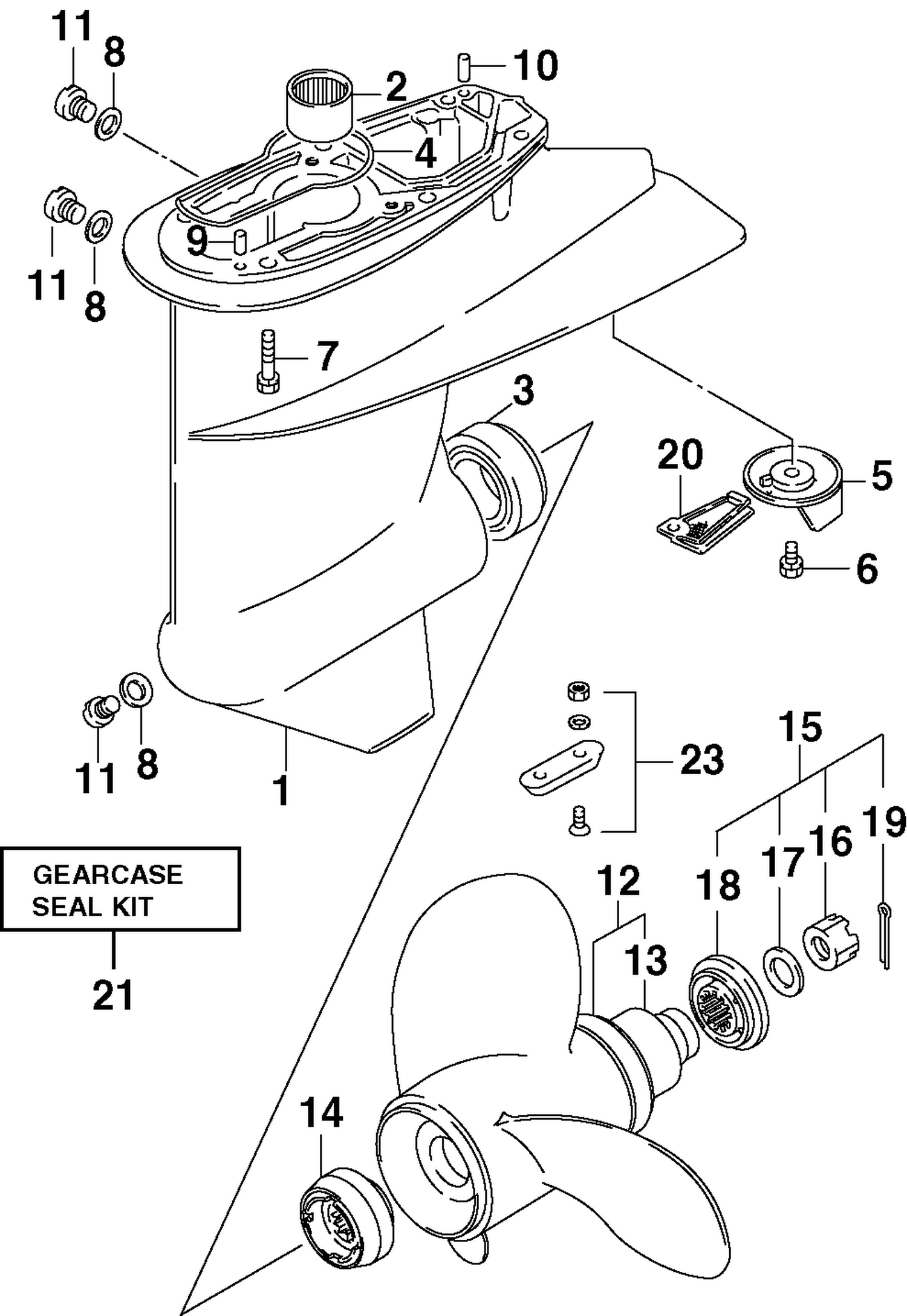

GEARCASE
Parts (8)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5036711 | HSG & BRG Assy, GEARCASE This part replaces 5032800. |
| 5 | 5031536 | TAB, TRIM |
| 6 | 5031215 | BOLT (8X16) |
| 7 | 5036712 | BOLT (8X45mm) This part replaces 5031218. |
| 9 | 5031246 | PIN (6X17mm) |
| 10 | 5031247 | PIN (6X23mm) |
| 11 | 5030094 | BOLT (10X7.5mm) |
| 14 | 5031551 | STOP, PROPELLER BUSHING |
