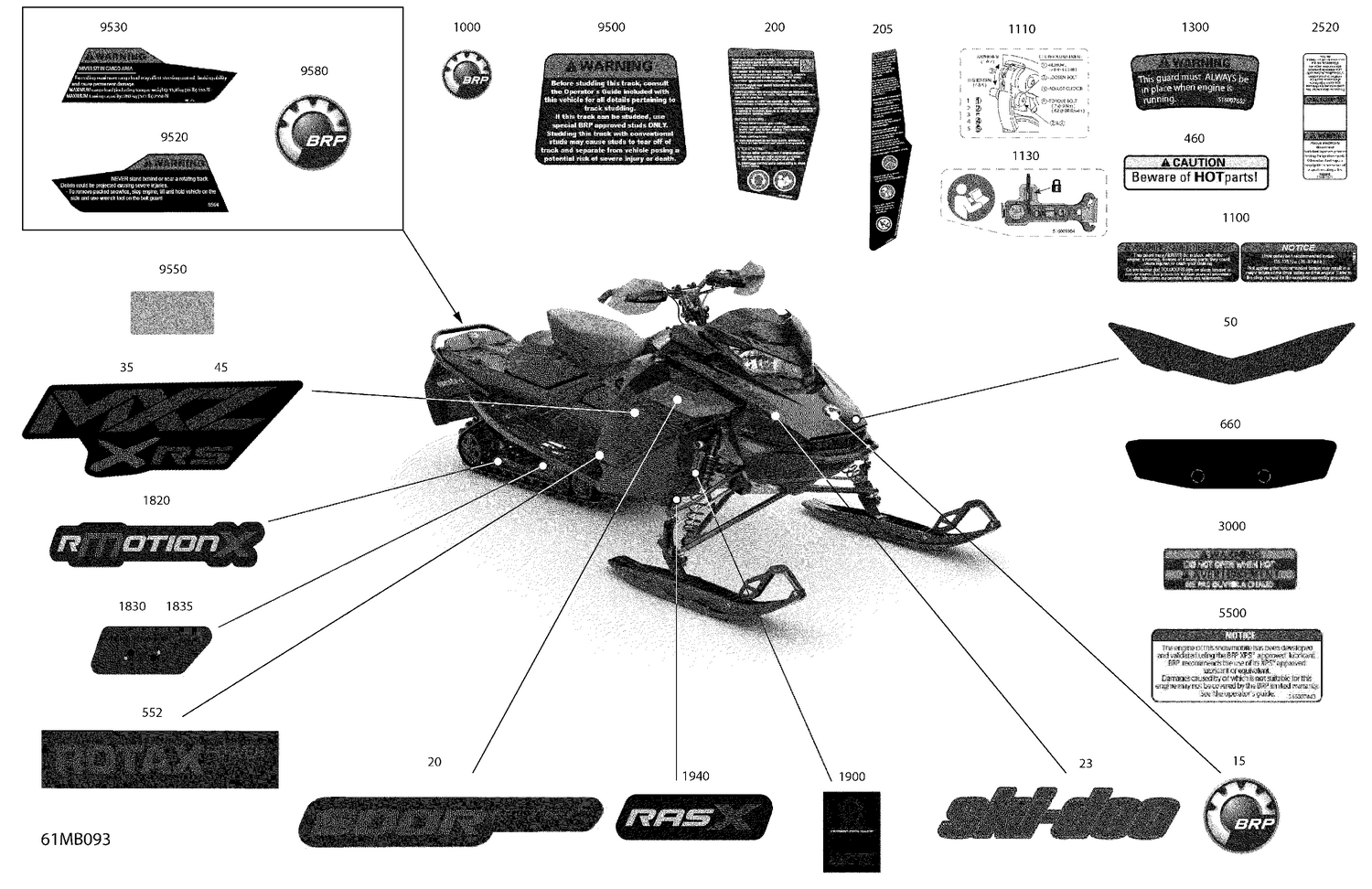

07- Body - Decals
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 15 | 704909041 | BRP Logo Emblem 68 MM UV |
| 20 | 516008848 | Decal 600R E-TEC |
| 23 | 516007669 | Hood Decal Ski-Doo |
| 35 | 516010684 | RH Upper Panel Decal "MXZ XRS" |
| 45 | 516010683 | LH Upper Panel Decal "MXZ XRS" |
| 50 | 516010686 | Front Hood Decal |
| 200 | 516010681 | LH General Warning Label |
| 205 | 516010924 | RH General Warning Label |
| 460 | 516005280 | Caution Decal Hot Parts |
| 552 | 516010685 | Decal ROTAX POWER |
| 660 | 516010972 | LINQ Decal |
| 1000 | 516010651 | BRP Logo 13 MM |
| 1100 | 516010898 | Clutch Instruction Label |
| 1110 | 516009265 | Decal Ramp Clicker |
| 1130 | 516009984 | Decal Tool |
| 1300 | 516007652 | Engine Guard Warning Decal |
| 1820 | 516010174 | Runner Decal |
| 1830 | 516011021 | LH Adjustment Instruction Label |
| 1835 | 516011022 | RH Adjustment Instruction Label |
| 1900 | 516005534 | Shock Adjustment Decal |
| 1940 | 516010603 | Decal Suspension "RASX" |
| 2520 | 516007661 | Warning Decal, Injectors |
| 3000 | 516005904 | Warning Decal |
| 5500 | 516008439 | Oil Warning Decal |
| 9500 | 516007645 | Rear Track Warning Decal |
| 9520 | 516008594 | LH Safety Label |
| 9530 | 516010575 | Cargo Load Instruction Label |
| 9550 | 516009954 | Protective Decal |
