Parts Catalog

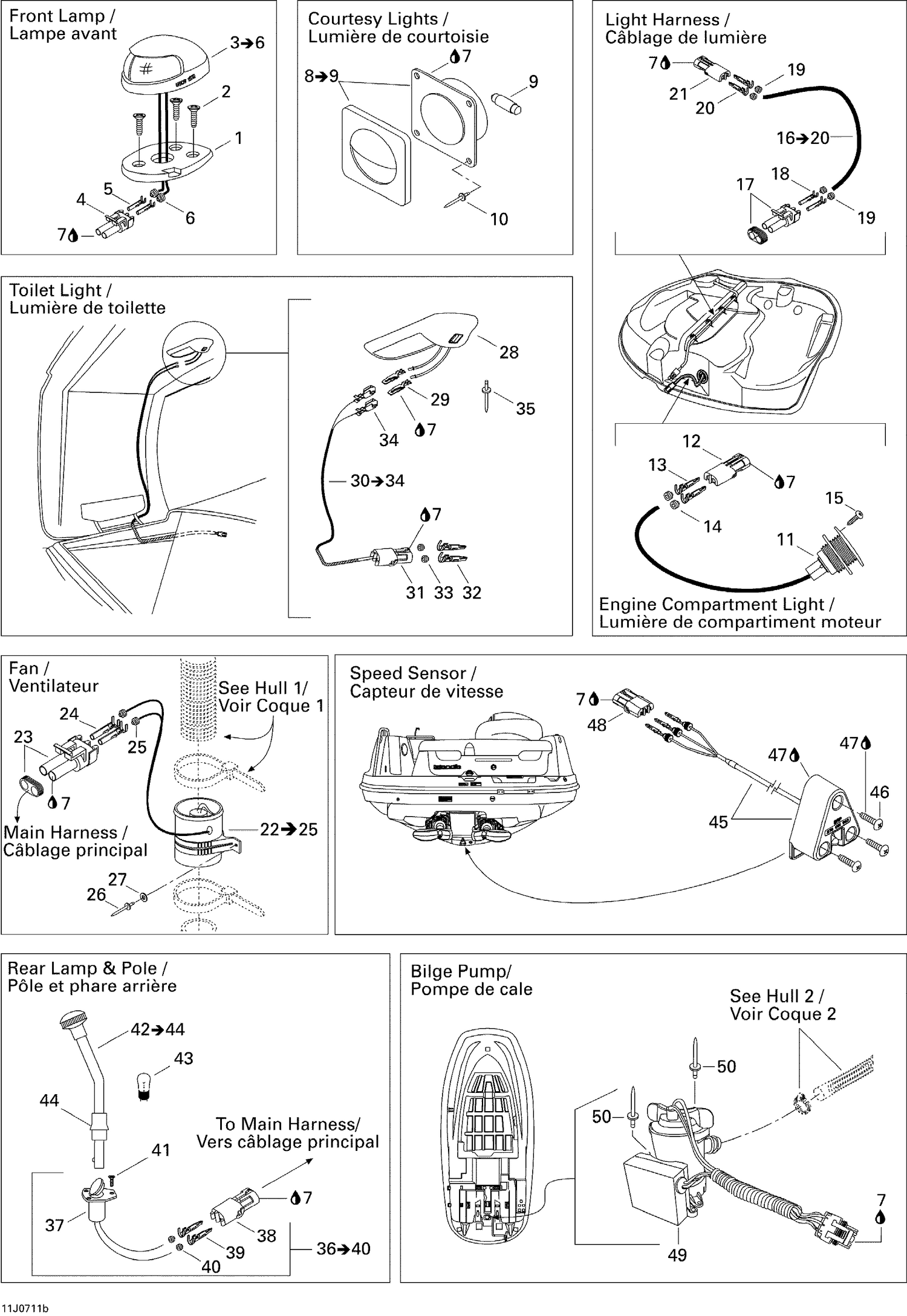

10- Electrical Accessories 2

Parts (42)

Ref	Part Number	Description
1	204470072	FRONT LAMP SUPPORT - Call your local BRP dealership
2	209642560	PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership
4	409209500	Female Housing, 2 Circuits
5	278001014	Female Terminal
6	278001013	Wire Seal
7	219704453	Was 293550004 Dielectric Grease, 150 g
9	204470081	BULB - Call your local BRP dealership
10	293150032	RIVET_POP 1/8 X ,487 - Call your local BRP dealership
11	204470412	Engine Compartment Light
12	278000217	Female Housing, 2 Circuits
13	278000222	Male Terminal
14	278000218	Wire Seal
15	241142560	Hex. Flange Screw K40 X 25
17	278000220	Male Connector, 2 Circuits
18	409007300	Female Terminal
19	278000218	Wire Seal
20	278000222	Male Terminal
21	278000217	Female Housing, 2 Circuits
23	278000220	Male Connector, 2 Circuits
24	278000223	Female Terminal
25	278000218	Wire Seal
26	293150008	Pop Rivet 3/16" This part replaces 293150011.
27	234052600	Flat Washer 5 mm, Stainless
28	204470414	TOILET LIGHT ASS?Y - Call your local BRP dealership
29	204470553	Male Terminal
31	278000217	Female Housing, 2 Circuits
32	278000222	Male Terminal
33	278000218	Wire Seal
34	Not	Available As Spare Part - Female Terminal
35	293150029	RIVET_POP 5/32 - Call your local BRP dealership
37	Not	Available As Spare Part - Rear Lamp Base
38	278000217	Female Housing, 2 Circuits
39	278000222	Male Terminal
40	278000218	Wire Seal
41	209943260	Phillips Tapping Screw M4.2 X 32
43	204470053	Bulb
44	204470350	COLLAR - Call your local BRP dealership
45	278001993	Speed Sensor
46	211000021	PHILLIPS SCREW #10 X 7/8 - Call your local BRP dealership
47	296000309	Silicone Sealant 51388, 300 ml
48	278000281	Female Terminal Housing, 3 Circuits
49	204471176	Bilge Pump With Screen
