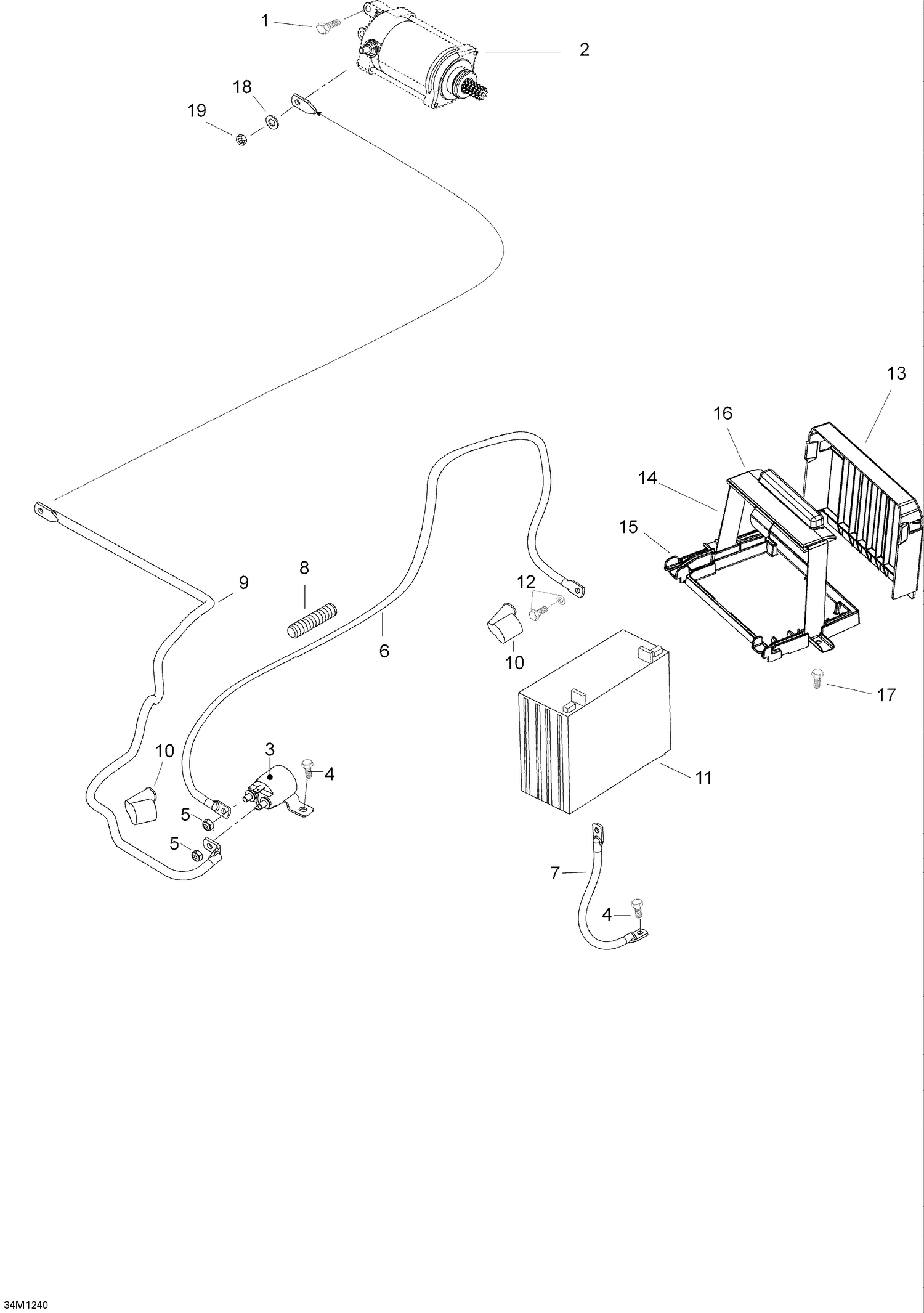

10- Battery And Starter
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420440647 | Torx Flange Screw M6 X 30 |
| 2 | 420893531 | Starter Ass'y This part replaces 420892421. |
| 3 | 515176011 | Starter Relay |
| 4 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 5 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 6 | 515176778 | BATTERY WIRE - Call your local BRP dealership |
| 7 | 515176777 | Ground Wire |
| 8 | M28015 | HOUSING - Call your local BRP dealership |
| 9 | 515176806 | Start Cable |
| 10 | 710000495 | Protector Cap |
| 11 | 515176151 | Battery YUASA YIX30L |
| 12 | 250000282 | Battery Bolt Kit This part replaces 295500849. |
| 13 | 510005079 | Battery Cover |
| 14 | 510005250 | Battery Strap |
| 15 | 515176804 | Battery Support |
| 16 | 605356094 | Strap Cover |
| 17 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 18 | 234061410 | Flat Washer 6 mm |
