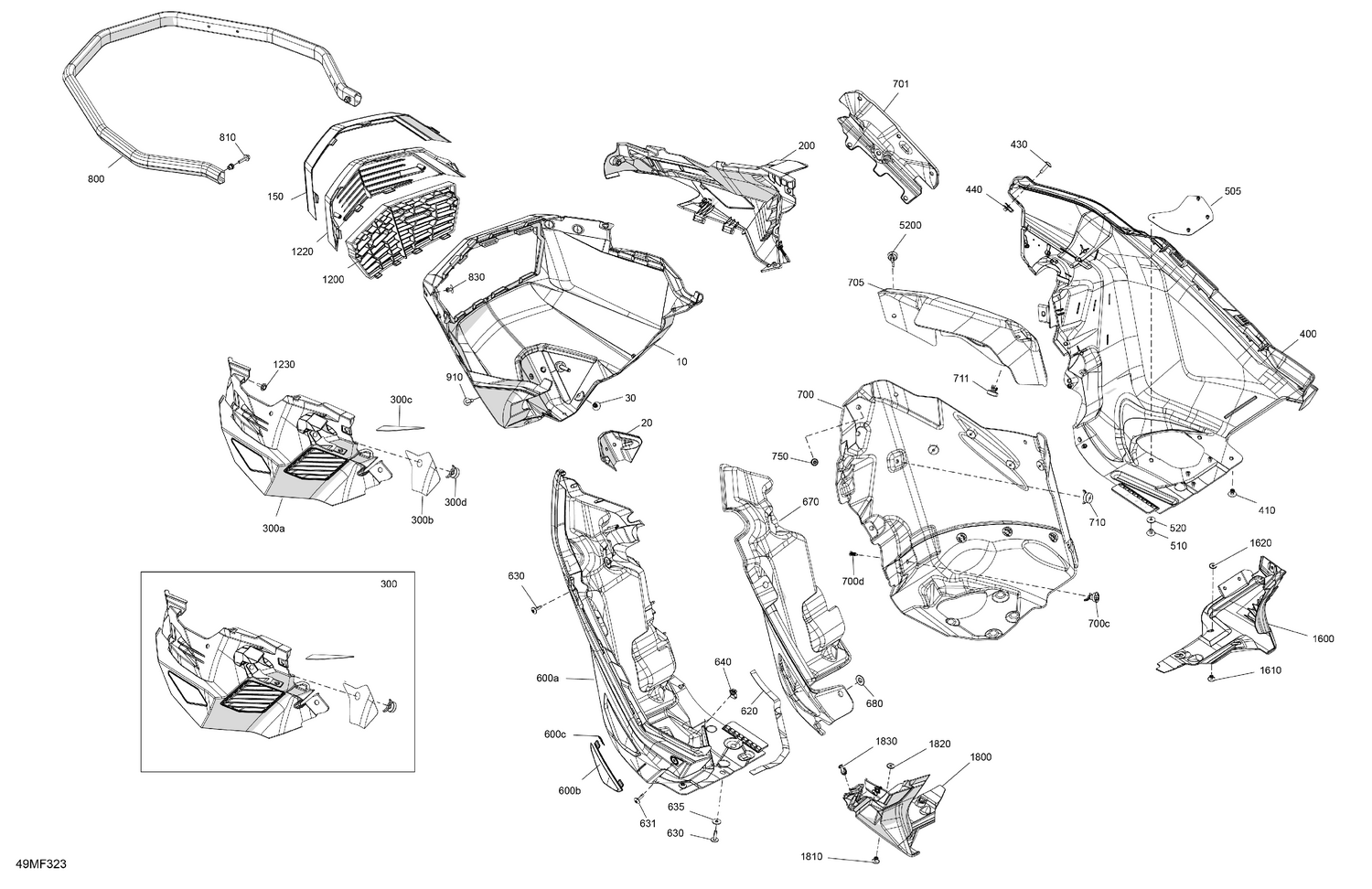

| Ref | Part Number | Description |
|---|
| 10 |
502008525 |
Deep Black, Front Bottom Pan |
| 20 |
502008466 |
Skid Plate |
| 30 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 150 |
502008540 |
Deep Black, Central Trim |
| 200 |
502008264 |
Deep Black, RH Bottom Pan Cap |
| 300a |
502008265 |
Deep Black, LH Bottom Pan Cap |
| 300b |
502008487 |
LH Front Heat Shield |
| 300c |
502008575 |
LH Front Heat Shield |
| 300d |
502008752 |
Stopper |
| 400 |
502008783 |
Deep Black, RH Bottom Pan |
| 410 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 430 |
250000586 |
Torx Truss M5 X 20 |
| 440 |
250000958 |
Panel Nut M5 X 0.8 |
| 505 |
502007868 |
Plate |
| 510 |
293150291 |
Black, Pop Rivet 3/16 X ,425 |
| 520 |
517124300 |
Washer |
| 600a |
502008786 |
Deep Black, LH Bottom Pan |
| 600b |
502007676 |
Bottom Pan Door |
| 600c |
269800431 |
Hairpin Cotter |
| 620 |
219704476 |
Gasket, Neoprene 2000Mm Long |
| 630 |
250001232 |
Screw Torx M5 X 20 |
| 631 |
250000586 |
Torx Truss M5 X 20 |
| 635 |
250200025 |
Washer M5 |
| 640 |
250000958 |
Panel Nut M5 X 0.8 |
| 670 |
502008508 |
LH Lower Acoustic Panel |
| 680 |
508000853 |
Push Nut |
| 700c |
502008753 |
Stopper |
| 700d |
293730062 |
Dart |
| 701 |
502008087 |
Heat Shield |
| 705 |
502008776 |
Acoustic Panel |
| 710 |
502008752 |
Stopper |
| 711 |
502008752 |
Stopper |
| 750 |
250000546 |
Oval Head Torx Screw K60 X 16 |
| 800 |
502007754 |
Front Bumper |
| 810 |
207552044 |
Hex. Flange Screw M5 X 20, Scotch Grip |
| 830 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 910 |
250000758 |
Torx Screw M6 X 25 |
| 1200 |
502007979 |
Lower Prefilter Grille |
| 1220 |
502008736 |
Upper Grille Prefilter |
| 1230 |
250000725 |
Screw M4 X 16 |
| 1600 |
502007714 |
RH Panel |
| 1610 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 1620 |
517124300 |
Washer |
| 1800 |
502007872 |
LH Panel |
| 1810 |
293150292 |
Black, Pop Rivet 3/16 X ,550 |
| 1820 |
517124300 |
Washer |
| 1830 |
293150230 |
Tuflok Plastic Rivet |
