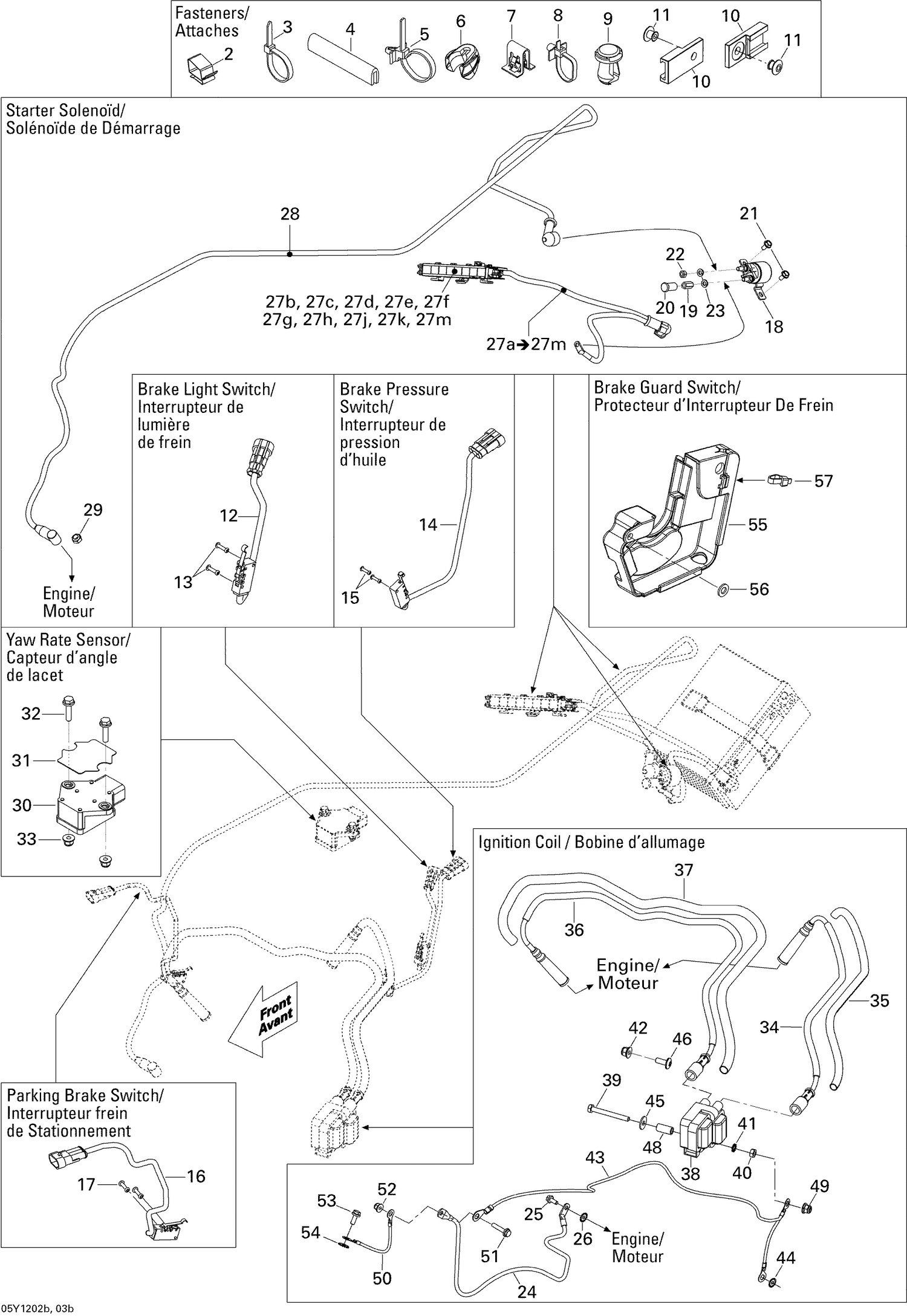

10- Electrical Accessories 2
Parts (61)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 414115200 | Tie-Rap 180 mm |
| 3 | 515175220 | Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 4 | 219704354 | Trim 1000Mm Long |
| 6 | 710001452 | WIRE BRACKET - Call your local BRP dealership |
| 8 | 710002197 | UNLOCKING CLIP - Call your local BRP dealership |
| 9 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 10 | 270000141 | Clip |
| 11 | 390402400 | Pop Rivet 3/16" |
| 12 | 710001357 | Brake Light Switch Ass'y |
| 13 | 293150150 | Pop Rivet |
| 14 | 710001379 | Brake Pressure Switch Ass'y |
| 15 | 293150150 | Pop Rivet |
| 16 | 710001379 | Brake Pressure Switch Ass'y |
| 17 | 293150150 | Pop Rivet |
| 18 | 710007777 | Starter Relay This part replaces 710001364. |
| 19 | 250100117 | HEX. COUPLING NUT M6 X 1.0 X 18 - Call your local BRP dealership |
| 20 | 710001610 | BOOT - Call your local BRP dealership |
| 21 | 210261250 | Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 22 | 232061600 | Hex. Nut M6 |
| 23 | 234161601 | Lock Washer Helical M6 |
| 24 | 710000177 | ENGINE GROUND CABLE - Call your local BRP dealership |
| 25 | 207661644 | Hex. Flange Screw M6 X 16 |
| 26 | 250200041 | Lock Washer Serrated M6 |
| 27b | 219704447 | Was 710000483 Heat Shrink Tubing |
| 27c | 275500578 | Shrink Tubing |
| 27d | 710000497 | PROTECTOR TUBE, 9 MM - Call your local BRP dealership |
| 27e | 710000495 | Protector Cap |
| 27f | 710000539 | Open Barrel |
| 27g | 710001046 | Fuse, 25 AMP |
| 27h | 710001047 | Fuse, 40 AMP |
| 27j | 710001078 | Fuse, 20 AMP |
| 27k | 710001200 | Fuse 30 amp. |
| 27m | 710002054 | Fuse, 60 AMP |
| 28 | 710000794 | POSITIVE CABLE - Call your local BRP dealership |
| 29 | 232561414 | Elastic Stop Nut M6 |
| 30 | 710002051 | YAW ANGLE SENSOR - Call your local BRP dealership |
| 31 | 293830127 | RUBBER BUMPER - Call your local BRP dealership |
| 32 | 207662544 | Hex. Flange Screw M6 X 25 |
| 33 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 34 | 707000399 | Cable Ass'y |
| 35 | 219704407 | Tubing 10 MM 1000MM Long |
| 36 | 707000518 | Cable Ass'y |
| 37 | 219704407 | Tubing 10 MM 1000MM Long |
| 38 | 278001546 | Ignition Coil |
| 39 | 207065544 | Hex. Screw M6 X 55 |
| 40 | 232061414 | Hex. Nut M6 |
| 41 | 234461608 | External Serrated Lock Washer 6 mm |
| 42 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 43 | 710002091 | GROUND CABLE - Call your local BRP dealership |
| 44 | 250200041 | Lock Washer Serrated M6 |
| 45 | 234062410 | Flat Washer 6 mm |
| 46 | 207662044 | Hex. Flange Screw M6 X 20 |
| 48 | 512059812 | SPACER - Call your local BRP dealership |
| 49 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 50 | 710001165 | GROUND HARNESS - Call your local BRP dealership |
| 51 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 52 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 53 | 207661644 | Hex. Flange Screw M6 X 16 |
| 54 | 250200041 | Lock Washer Serrated M6 |
| 55 | 710002322 | BOOT GUARD BRAKE SWITCH - Call your local BRP dealership |
| 56 | 234061410 | Flat Washer 6 mm |
