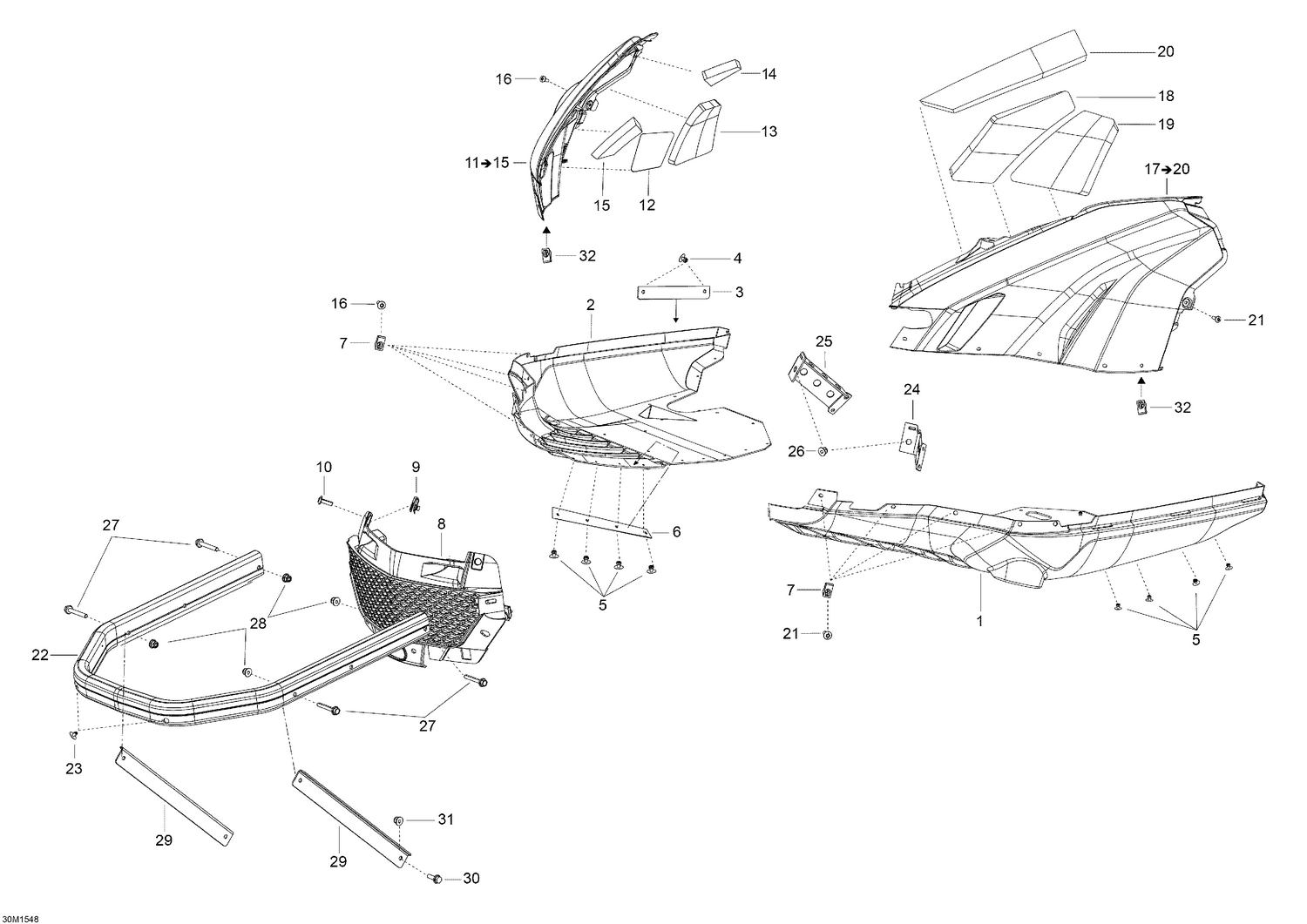

09- Bottom Pan _30M1548
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 502007436 | LH Lower Bottom Pan |
| 2 | 502006917 | BLACK BOTTOM-PAN LOWER RH. - Call your local BRP dealership |
| 3 | 502007255 | Heat Isolation Plate |
| 4 | 293150211 | Rivet |
| 5 | 293150104 | Pop Rivet 3/16" |
| 6 | 502007226 | SUPPORT PLATE - Call your local BRP dealership |
| 7 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 8 | 502007140 | Front Grille |
| 9 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 10 | 250000722 | Torx Screw M6 X 20 |
| 12 | 502007133 | Insulator |
| 13 | 502007132 | Insulator |
| 14 | 502007008 | INSULATOR - Call your local BRP dealership |
| 15 | 502007009 | Insulator |
| 16 | 250000722 | Torx Screw M6 X 20 |
| 18 | 502007088 | Insulator |
| 19 | 502007131 | Insulator |
| 20 | 502007185 | Insulator |
| 21 | 250000722 | Torx Screw M6 X 20 |
| 22 | 502007170 | Clear Bumper |
| 23 | 293730041 | Full Moon Dart 8 mm |
| 24 | 619690082 | BOTTOM PAN FASTENER LH - Call your local BRP dealership This part replaces 502007137. |
| 25 | 619690081 | BOTTOM PAN FASTENER RH - Call your local BRP dealership This part replaces 502007138. |
| 26 | 605636003 | Clinch Nut M6 Hexsert |
| 27 | 207664044 | Hex. Flange Screw M6 X 40 |
| 28 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 29 | 502006927 | Bumper Support |
| 30 | 207662044 | Hex. Flange Screw M6 X 20 |
