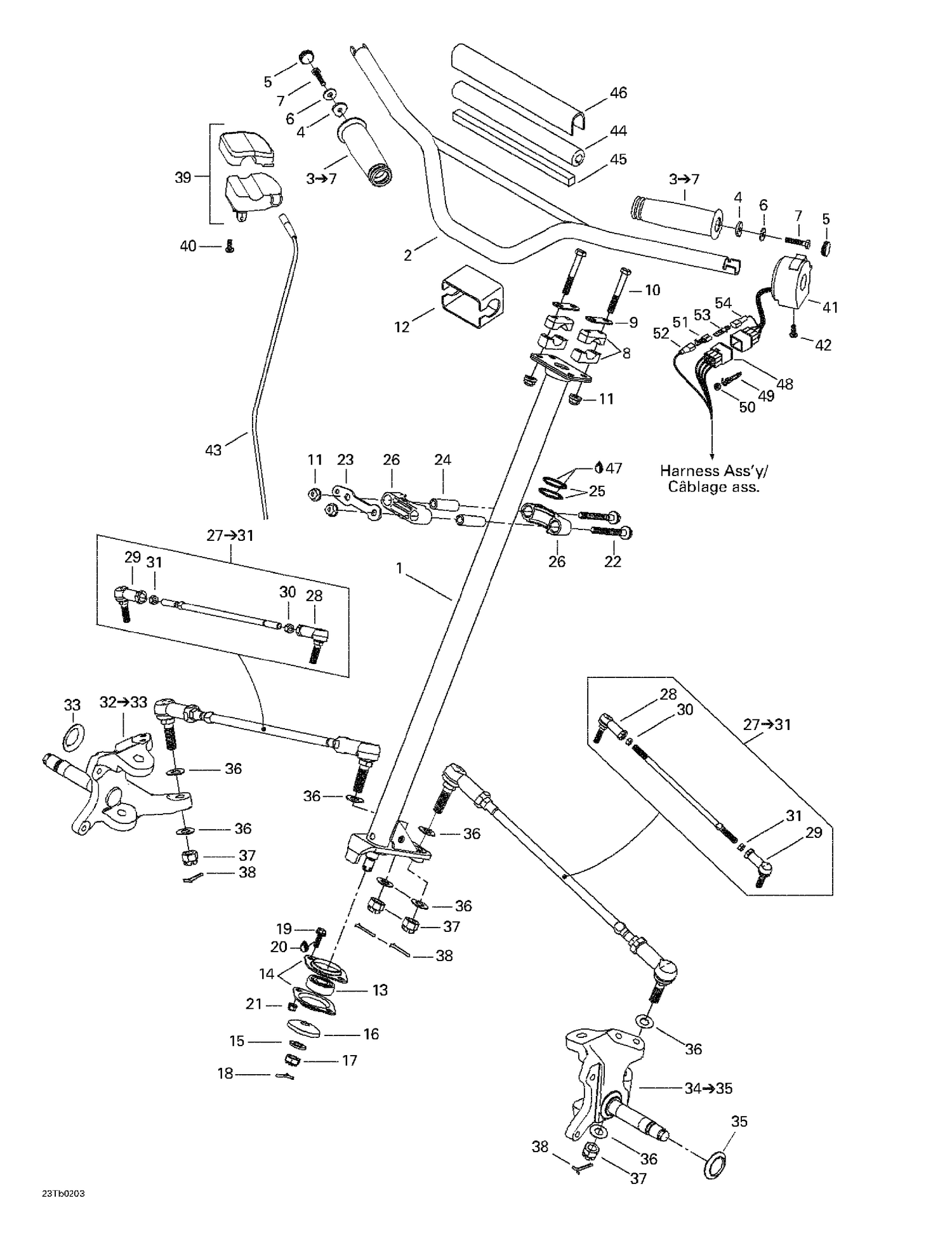

| Ref | Part Number | Description |
|---|
| 1 |
709400067 |
Main Tube |
| 2 |
709400071 |
Handle Bar |
| 3 |
295500691 |
HANDLE GRIP KIT, BLACK - Call your local BRP dealership |
| 4 |
Not |
Available As Spare Part - Grip Insert |
| 5 |
277000203 |
Black, Cap |
| 6 |
234062600 |
Flat Washer M6, Stainless |
| 7 |
250000002 |
Hex. Screw M6 X 30, Scotch Grip |
| 8 |
709400919 |
Steering Support This part replaces 414491600. |
| 9 |
709400509 |
Stiffner This part replaces 506151196. |
| 10 |
207086044 |
HEX. SCREW M8 X 60 - Call your local BRP dealership |
| 11 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 12 |
506151288 |
Cover |
| 13 |
709400439 |
Ball Bearing This part replaces 709400012. |
| 14 |
709400152 |
FLANGE, BEARING - Call your local BRP dealership This part replaces 709400013. |
| 15 |
234021410 |
Flat Washer 12 mm |
| 16 |
250200017 |
WASHER - Call your local BRP dealership |
| 17 |
232220413 |
HEX. CASTELLATED NUT M12 - Call your local BRP dealership |
| 18 |
211400017 |
Cotter Pin |
| 19 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 20 |
293800060 |
Loctite 243, 10 ml |
| 21 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 22 |
207687544 |
Hex. Flange Screw M8 X 75 |
| 23 |
709400053 |
STOPPER PLATE - Call your local BRP dealership |
| 24 |
709400072 |
BUSHING - Call your local BRP dealership |
| 25 |
293300068 |
O-Ring |
| 26 |
709400471 |
Half Bushing This part replaces 709400052. |
| 28 |
709402302 |
RH Ball Joint This part replaces 709400065. |
| 29 |
709402303 |
LH Ball Joint This part replaces 709400066. |
| 30 |
232026414 |
RH Hex. Nut This part replaces 732610019. |
| 31 |
732610020 |
LH HEX. JAM NUT M12 - Call your local BRP dealership |
| 33 |
705400056 |
WEAR RING - Call your local BRP dealership |
| 35 |
705400056 |
WEAR RING - Call your local BRP dealership |
| 36 |
503175400 |
Hardened Washer |
| 37 |
232221414 |
Hex. Castellated Nut M12 |
| 38 |
211400013 |
Cotter Pin |
| 39 |
709400016 |
THROTTLE HANDLE - Call your local BRP dealership |
| 40 |
205353046 |
Screw M5 x 30 |
| 41 |
710000072 |
MULTI FUNCTION SWITCH - Call your local BRP dealership |
| 42 |
205453046 |
SCREW M5 X 30 - Call your local BRP dealership |
| 43 |
709400048 |
THROTTLE CABLE - Call your local BRP dealership |
| 44 |
709400087 |
Steering Cover Foam |
| 45 |
709400094 |
FOAM INSERT - Call your local BRP dealership |
| 46 |
709400059 |
Steering Cover |
| 47 |
293600041 |
CABLE LUBRICANT, 400 G - Call your local BRP dealership This part replaces 293600042. |
| 48 |
710000081 |
Female Housing, 6 Circuits |
| 49 |
409012100 |
Female Terminal |
| 50 |
409012300 |
Seal |
| 51 |
278001009 |
Female Terminal |
| 52 |
278000770 |
Insulated Sheath |
| 53 |
278000230 |
Male Terminal |
