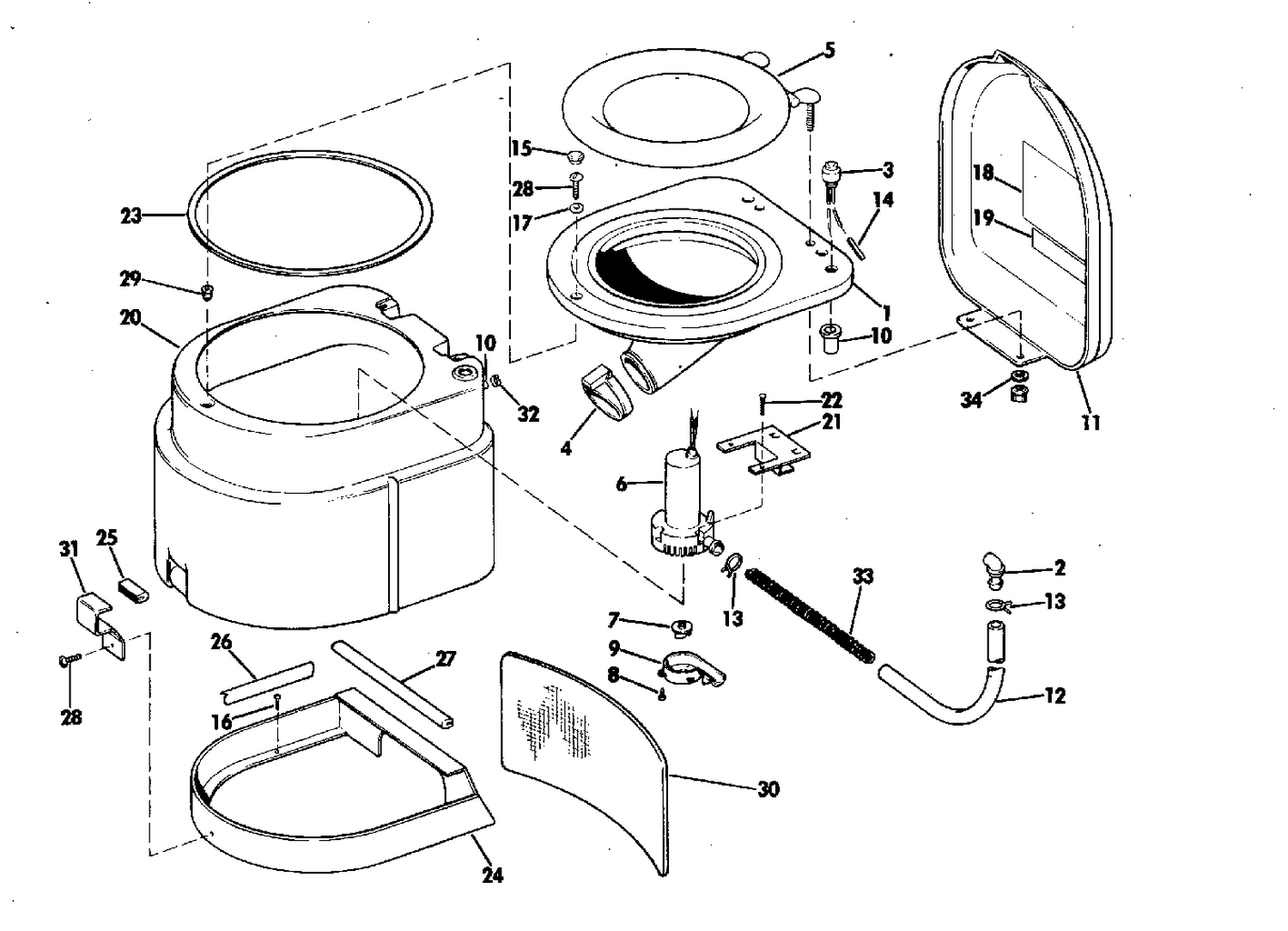

MARINE HEAD - FREE STANDING
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0122153 | BOWL, Head |
| 2 | 0122154 | FITTING, Inlet |
| 3 | 0172348 | SWITCH ASSY |
| 4 | 0122155 | FLAP VALVE |
| 5 | 0172349 | SEAT & HINGE |
| 6 | 0172352 | RECIRCULATING PUMP AY |
| 7 | 0122169 | IMPELLER PUMP |
| 8 | 0122170 | SCREW |
| 9 | 0122171 | HOUSING, Impeller |
| 10 | 0122159 | BUSHING, Strain relief |
| 11 | 0122156 | COVER HEAD |
| 12 | 0122175 | HOSE |
| 13 | 0307899 | CLAMP |
| 15 | 0122180 | PLUG, Trim |
| 16 | 0122178 | SCREW, Mounting |
| 17 | 0122179 | WASHER, Bowl tie down |
| 18 | 0122181 | DECAL INSTRUCTIONS |
| 19 | 0122264 | DECAL- Free stand |
| 20 | 0122204 | FREE STANDING BASE |
| 21 | 0122206 | PUMP CLIP |
| 22 | 0122207 | SCREW |
| 23 | 0122208 | BOWL GASKET |
| 24 | 0122209 | MOUNTING BASE |
| 25 | 0122210 | CUSHION |
| 26 | 0122211 | CUSHION |
| 27 | 0122212 | CUSHION |
| 28 | 0122215 | SCREW, Bowl & clamp |
| 29 | 0122236 | WELL NUT |
| 30 | 0172362 | FRAME & SCREEN ASSY |
| 31 | 0172363 | FRONT CLAMP ASSY |
| 33 | 0122370 | COIL |
| 0172360 | 0172360 | MARINE HEAD ASSY |
