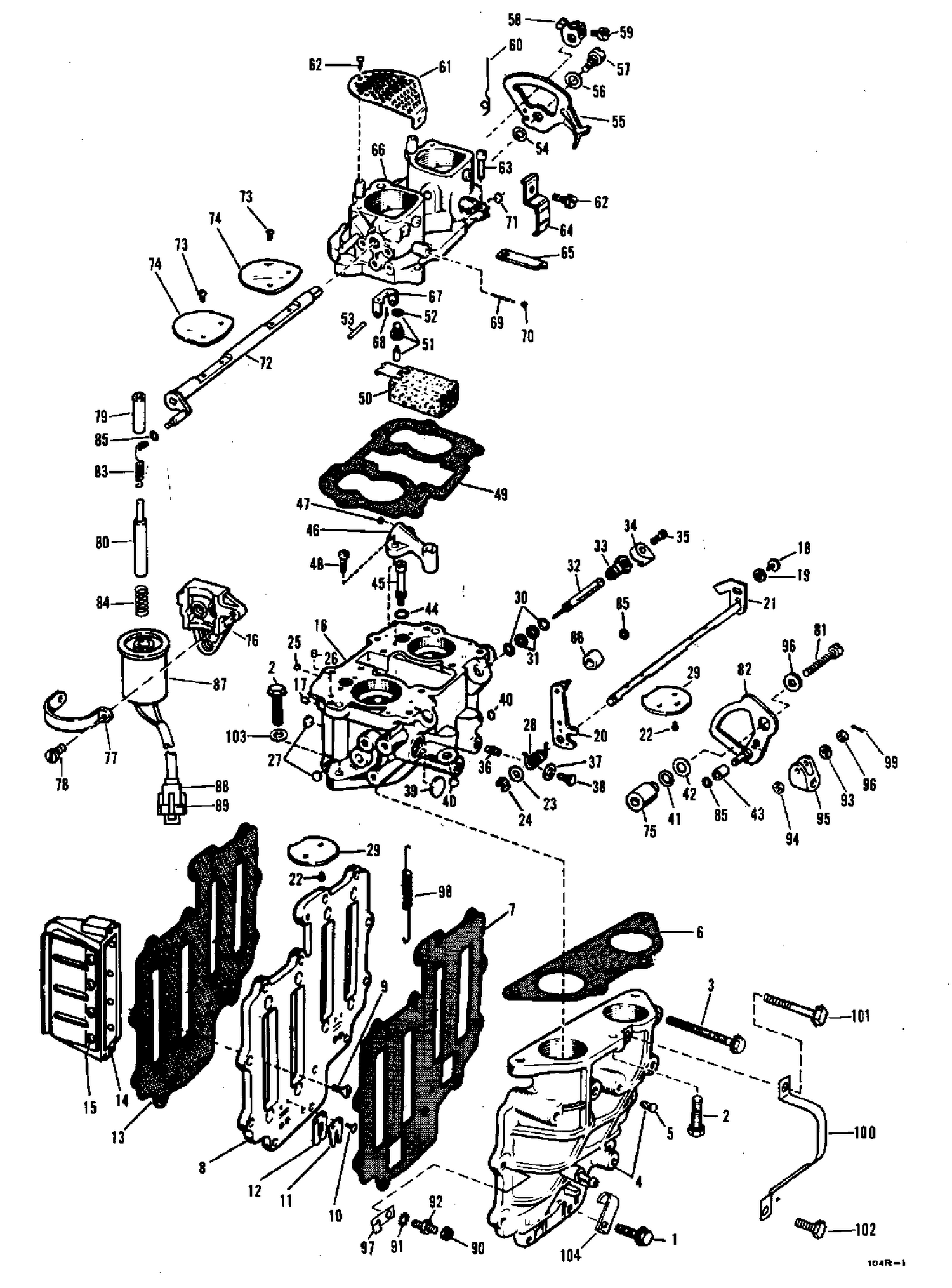

| Ref | Part Number | Description |
|---|
| 1 |
0310063 |
SCREW, Gearcase to housing This part replaces 0307062. |
| 2 |
0307028 |
SCREW |
| 3 |
0305122 |
SCREW |
| 4 |
0382570 |
INTAKE MANIFOLD & DRIVE SCREW ASSY. |
| 5 |
0305820 |
DRIVESCREW |
| 6 |
0310337 |
GASKET |
| 7 |
0312229 |
GASKET |
| 8 |
0382347 |
BASE & SCREEN,Leaf plate |
| 9 |
0307609 |
SCREW |
| 10 |
0303761 |
SCREW |
| 11 |
0304655 |
PLATE |
| 12 |
0302031 |
LEAF PLATE |
| 13 |
0307131 |
GASKET |
| 14 |
0379571 |
LEAF BLOCK ASSY |
| 16 |
0383071 |
CARBURETOR BODY AND PLUG ASSY. |
| 17 |
0308124 |
PLUG, Fuel passage |
| 20 |
0377986 |
FOLLOWER, Cam |
| 21 |
0382042 |
SHAFT ASSY., Throttle |
| 23 |
0301827 |
WASHER |
| 27 |
0550078 |
CORE PLUG |
| 29 |
0314405 |
VALVE, Throttle |
| 32 |
0307369 |
VALVE, Needle, slow speed |
| 34 |
0307370 |
KNOB, Adjusting, slow speed |
| 35 |
0551517 |
SCREW |
| 36 |
0328544 |
ORIFICE PLUG, (No. 63D) This part replaces 0309415. |
| 38 |
0307832 |
PLUG, Screw |
| 41 |
0305234 |
BOW WASHER |
| 42 |
0312024 |
BUSHING |
| 43 |
0305232 |
ROLLER, Cam foller |
| 44 |
0305242 |
O RING |
| 45 |
0312213 |
TUBE, High speed |
| 46 |
0381030 |
VENTURI & CORE PLUG ASSY. |
| 48 |
0306481 |
SCREW |
| 49 |
0310353 |
GASKET |
| 50 |
0377164 |
FLOAT & FLOAT ARM |
| 51 |
0379312 |
FLOAT VALVE ASSY. |
| 54 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz This part replaces 0306015. |
| 55 |
0378043 |
LEVER AND PIN |
| 56 |
0302473 |
BOW WASHER |
| 58 |
0378003 |
ARM & PIN,Manual choke |
| 60 |
0307438 |
SPRING |
| 61 |
0305292 |
SCREEN |
| 62 |
0329594 |
SCREW, Cam follower This part replaces 0303737. |
| 63 |
0306474 |
SCREW |
| 64 |
0307441 |
PANEL |
| 65 |
0307378 |
SPRING |
| 66 |
0383070 |
CARBURETOR COVER & CHOKE VALVE ASSY. |
| 67 |
0305223 |
HINGE |
| 68 |
0160089 |
DRIVESCREW |
| 69 |
0307024 |
WIRE |
| 71 |
0550078 |
CORE PLUG |
| 72 |
0382774 |
CHOKE,Shaft,arm & screw |
| 75 |
0312023 |
SPACER |
| 76 |
0314131 |
BRACKET, Solenoid |
| 77 |
0305244 |
YOKE, Solenoid |
| 78 |
0307163 |
SCREW |
| 79 |
0314476 |
SLEEE, Rectifier |
| 80 |
0313636 |
PLUNGER |
| 81 |
0130618 |
SCREW |
| 82 |
0380769 |
CAM, Throttle |
| 83 |
0387788 |
LINK & PLUNGER ASSY, 85 HP This part replaces 0314025. |
| 84 |
0314026 |
SPRING |
| 85 |
0307529 |
JOINT TORIQUE, galet vers contre-came |
| 86 |
0310354 |
ROLLER |
| 87 |
0382553 |
SOLENOID ASSEMBLY |
| 90 |
0311375 |
NUT |
| 92 |
0311344 |
BOLT, Double end |
| 93 |
0204757 |
BOW WASHER |
| 95 |
0310524 |
YOKE |
| 96 |
0306407 |
LOCCKWASHER,Cover latch |
| 97 |
0310441 |
CLAMP, CPS lead |
| 98 |
0307408 |
SPRING |
| 100 |
0314252 |
GUARD, Fuel pump hose |
| 101 |
0314450 |
SCREW, Guard to manfd., long |
| 102 |
0314452 |
SCREW, Guard to manfd., short |
| 103 |
0314921 |
THROTTLE STOP |
| 0382678 |
0382678 |
CARBURETOR & AUTOMATIC CHOKE ASSY. |
