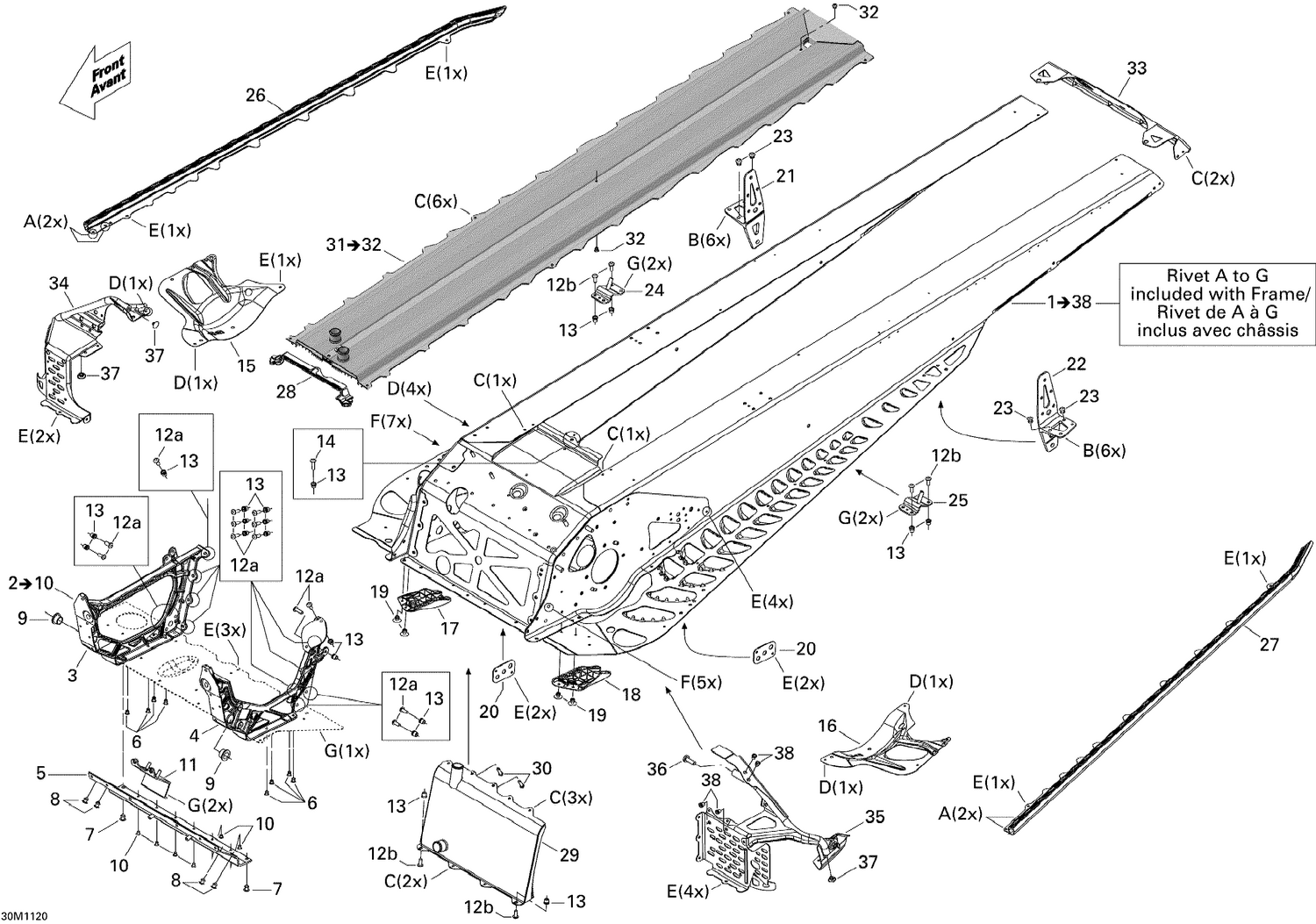

09- Frame — Parts Catalog

Parts (42)

Ref	Part Number	Description
A	390402300	Pop Rivet 3/16"
B	293150174	Hemlock Rivet, 6.4 mm
C	390909200	Avex Rivet
D	390909100	Avex Rivet
E	293150144	Stavex Rivet
F	293150146	Henrob Rivet
3	518326795	RH Member This part replaces 518325922.
4	518326796	LH Member This part replaces 518325923.
5	518326198	Front Member
6	293150144	Stavex Rivet
7	293150120	Hemlock Rivet 6.5 mm
8	293150119	Hemlock Rivet, 6.5 mm
9	505072690	Leg Bushing This part replaces 505070954.
10	Not	Available As Spare Part - Rivet
11	518325943	MAG Engine Support
12a	207662044	Hex. Flange Screw M6 X 20
12b	207661644	Hex. Flange Screw M6 X 16
13	233261414	Hex. Flange Elastic Nut M6 x 1.0
14	207662044	Hex. Flange Screw M6 X 20
15	518324874	RH Reinforcement
16	518324875	LH Reinforcement
17	518325782	RH Deflector, Black Polypropylene
18	518325783	LH Deflector, Black Polypropylene
19	293150104	Pop Rivet 3/16"
20	518201321	REINFORCEMENT PLATE - Call your local BRP dealership
21	518324976	RH Suspension Bracket
22	518324977	LH Suspension Bracket
23	293150266	Ornit Rivet 6,5 X 14.5 This part replaces 293150147.
24	518325973	RH Rear Base
25	518325974	LH Rear Base
26	518325159	RH ROLLER - Call your local BRP dealership
27	518325160	LH Roller
28	518326656	Seal
29	518326485	Front Radiator This part replaces 518326486.
30	250300027	Clinch Stud M6 X 20
32	293150144	Stavex Rivet
33	518327105	Rear Cap This part replaces 518325421.
34	518328938	RH Stirup This part replaces 518326216.
35	518327935	LH STIRUP - Call your local BRP dealership This part replaces 518326239.
36	250000752	Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248.
37	293730042	Full Moon Dart 5 mm
