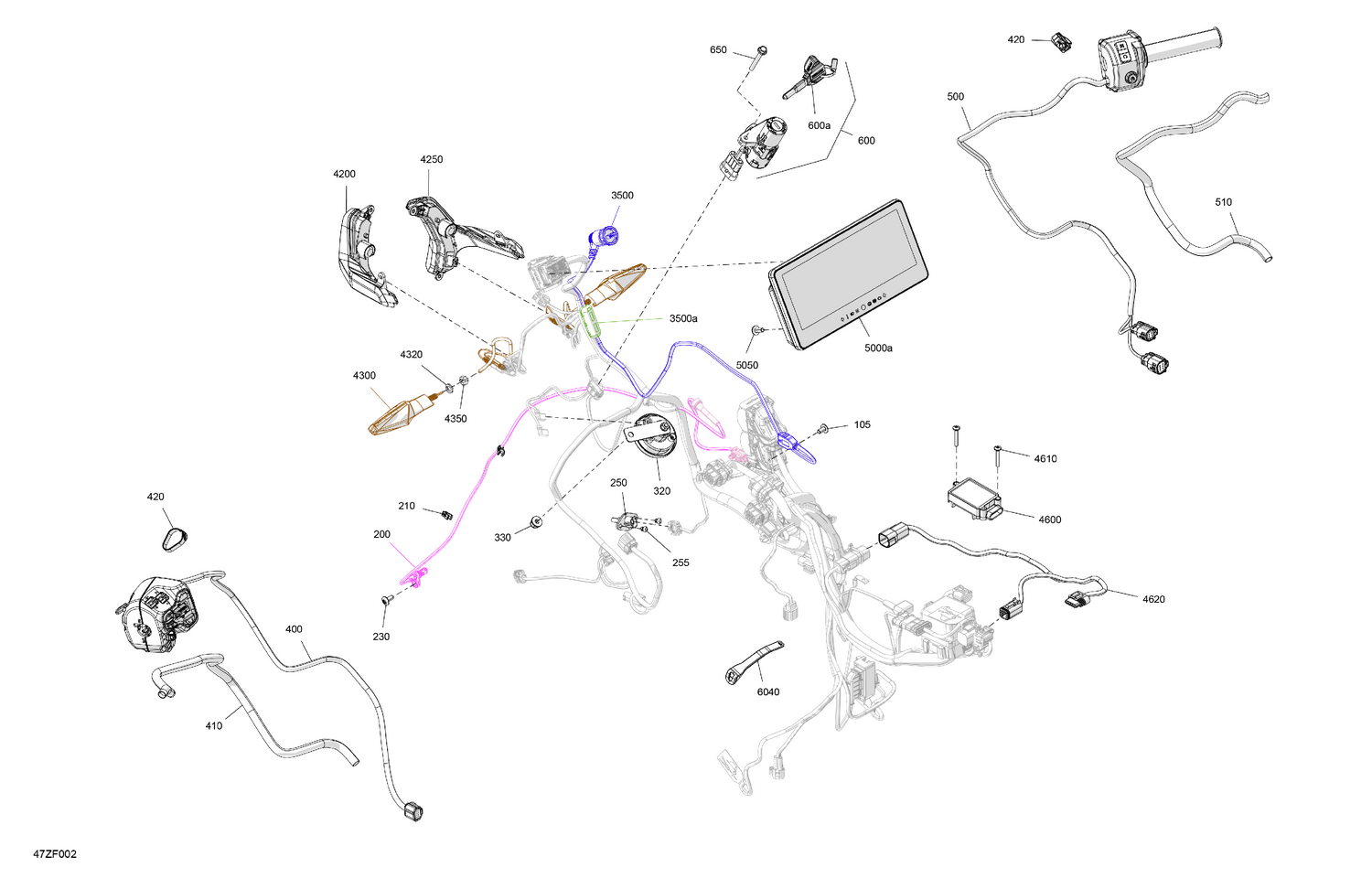

08- Electric - Front Electric
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 105 | 250000767 | Torx Truss Screw M6 X 12 |
| 200 | 710006982 | Speed Sensor |
| 210 | 710010345 | Cable Support |
| 230 | 250000789 | Torx Truss M6X14 |
| 250 | 515176366 | Air Temperature Sensor |
| 255 | 515177929 | Rivet |
| 320 | 710011350 | Horn |
| 330 | 233281466 | Elastic Flange Nut M8 |
| 400 | 710008918 | LH Front Multifunction Switch Ass'y |
| 410 | 710010591 | Braided Sheath 9,53 Mm Id |
| 420 | 710010134 | Retaining Strap |
| 500 | 710008981 | RH Multifunction Switch & Twist Throttle |
| 510 | 710010591 | Braided Sheath 9,53 Mm Id |
| 600a | 219800574 | Blank Ignition Key |
| 650 | 207665054 | Hex. Flange Screw M6 X 50 |
| 3500a | 710011181 | Ferrite |
| 4200 | 710009672 | LH Auxiliary Light |
| 4250 | 710009671 | RH Auxiliary Light |
| 4300 | 710009747 | Turn Signal Amber Light |
| 4320 | 710006520 | Slotted Washer |
| 4350 | 710006521 | Slotted Nut |
| 4600 | 278004172 | External Module GPS |
| 4610 | 250001111 | Torx Screw K50 X 35 |
| 4620 | 710010943 | GPS Wiring Harness |
| 5000a | 710010374 | Multifunction Gauge 10 |
| 5050 | 250000721 | Torx Truss Screw M6 X 16 |
